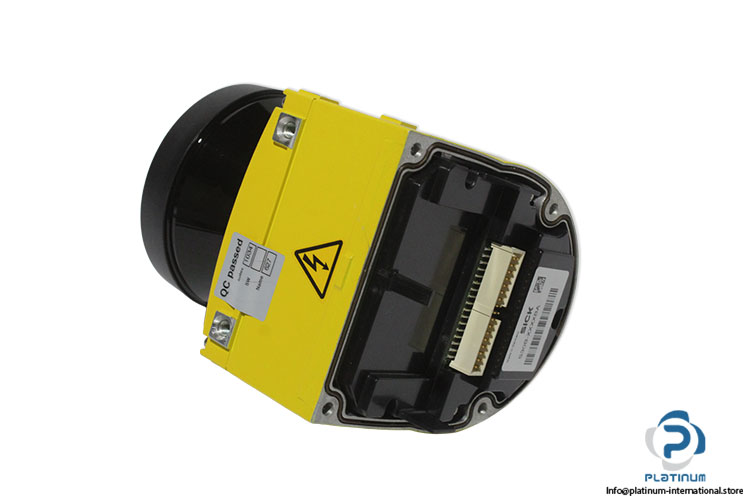

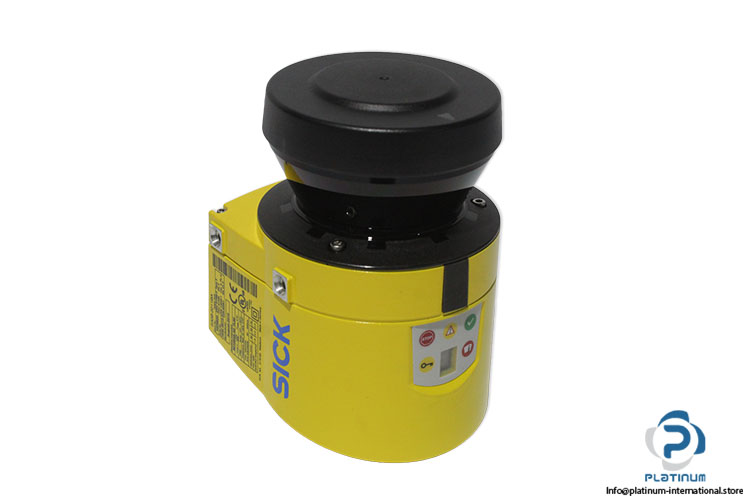

SICK S30B-2011BA Safety Laser Scanner
New
In stock1 unitReady to ship
Safety Laser Scanner SICK S30B-2011BA S300 Standard safety laser scanner with a 2 m protective range, 8 m warning range, and 270° scanning angle, designed for reliable indoor machine safety and area monitoring.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

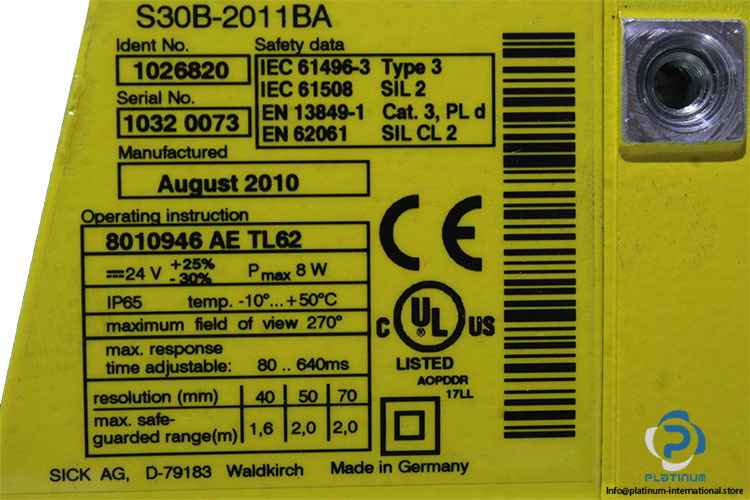

| Part No. | 1 026 820 |
| SN | 1032 0073 |

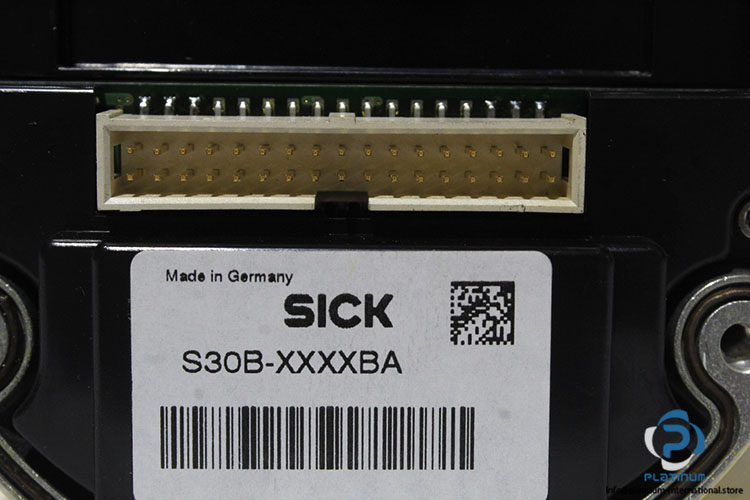

| Code | S30B-XXXXBA |

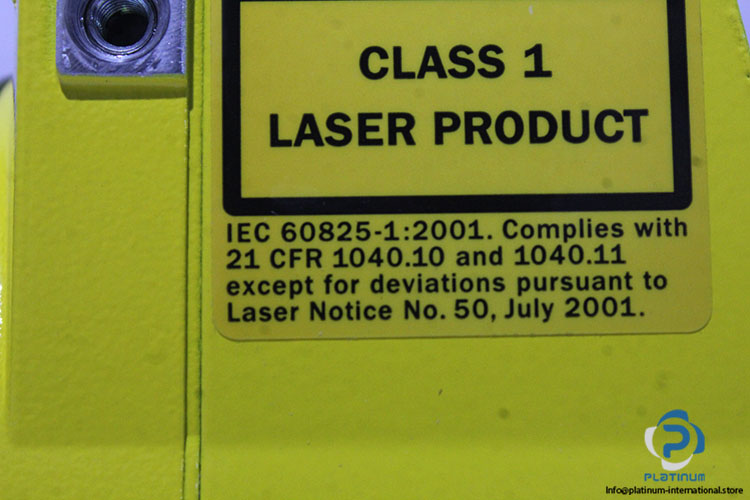

| Class | 1 |
| Supply voltage | 24 v |
| max power | 8 W |
| Temp Range | -10 to 50 c |
| max. response time adjustable | 80 .. 640ms |
| Product version | S300 Standard ,Sensor without system plug |
| Application | Indoor |
| Protective field range | 2 m |
| Warning field range | 8 m (at 15 % reflectivity) |
| Distance measuring range | 30 m |
| Type of field set | Triple field sets |
| Dimensions (W x H x D) | 102 mm x 152 mm x 106 mm |
| Housing material | Aluminum die cast |
| Housing color | RAL 1021 (yellow) |
| Optics cover material | Polycarbonate |
| Number of field sets | 1 |
| Number of fields | 3 |
| Number of monitoring cases | 1 |
| Scanning angle | 270° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm Angular resolution: 0.5° |
| Response time | 80 ms |
| Protective field supplement | 100 mm |
| Number of multiple samplings | 2 ... 16, configurable |
| Delay of automatic reset | 2 s ... 60 s, configurable |
| Connection type | System plug with or without connecting cable Universal I/Os: 5 |
| Inputs External device monitoring (EDM) | 1 |
| Reset/restart | 1 |
| Outputs OSSD pairs | 1 |
| Application diagnostic outputs | 3 |
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | RS-232 |
| Standard | IEC 61496-3 Type 3,IEC 61508 ,EN 13849-1 Cat. 3, PL d,EN 62061 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100992 |
| Weight | 1,10 |
