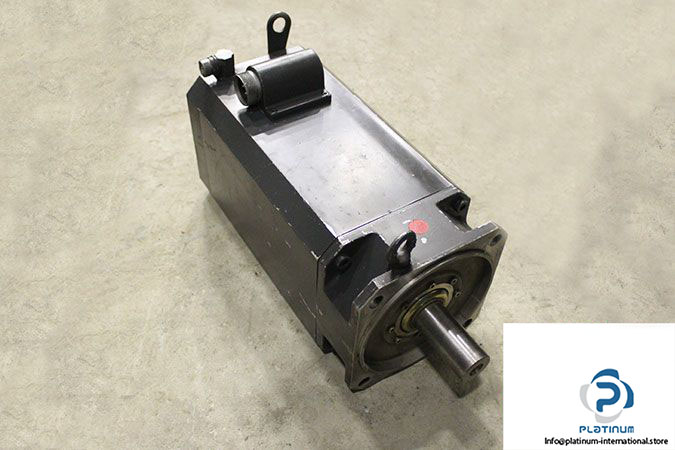

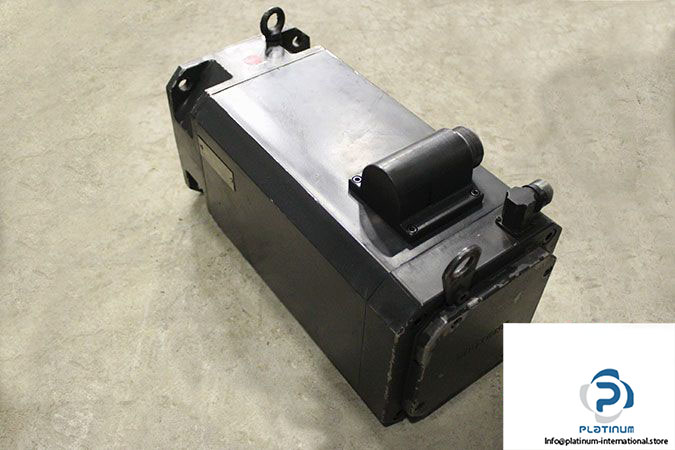

Siemens 1FT6105-1AC71-1AH1 Synchronous Servo Motor
Used
In stock1 unitReady to ship
SYNCHRONOUS SERVO MOTOR
Siemens 1FT6105-1AC71-1AH1 is a Series 6 synchronous servo motor with 38/46 Nm torque and 2000/1000 rpm rated speed. Designed for continuous duty and industrial automation systems requiring high precision.6AutomationB5ContinuousControlDutyHighIndustrialIP65MotionmotormountPrecisionSeriesServoSiemensSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 1FT6105-1AC71-1AH1 SYNCHRONOUS SERVO MOTOR
The Siemens 1FT6105-1AC71-1AH1 is a high-performance synchronous servo motor from Series 6, engineered for precision motion control applications. With reliable performance and robust design, it is ideal for continuous duty operations across demanding industrial environments.

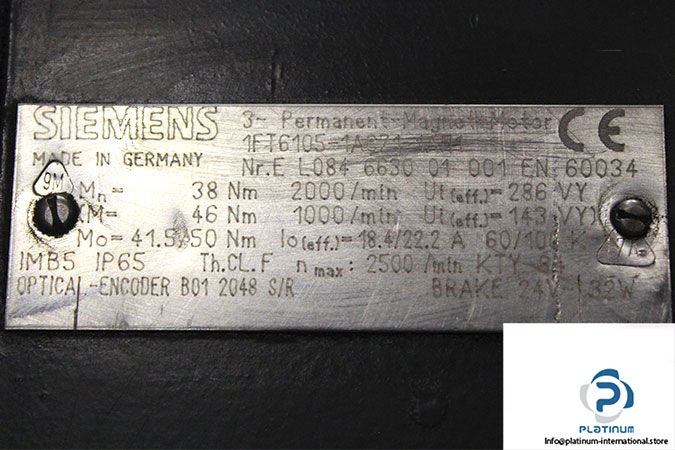

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FT6105-1AC71-1AH1
No. E: L084 6630 01 001
Series: 6
Frame Size: 10
Length: 5
| Rated Voltage [V] | 286 / 143 |
| Rated Torque [Nm] | 38 / 46 |
| Rated Speed [rpm] | 2000 / 1000 |
| Max. Speed [rpm] | 2500 |
| Standstill Current [A] | 41.5 / 50 |
| Standstill Torque [Nm] | 18.4 / 22.2 |
| Brake Voltage [VDC] | 24 |
| Brake Power [W] | 32 |
| Encoder | B01 2048 S/R |
| Duty | S1 Continuous |
| Mounting Position [IM] | B5 |
| Protection Class [IP] | 65 |
| Thermal Class | F |
