Siemens 1PF2035-2VW29 Motor
Motor With Hydraulic Actuator Drive

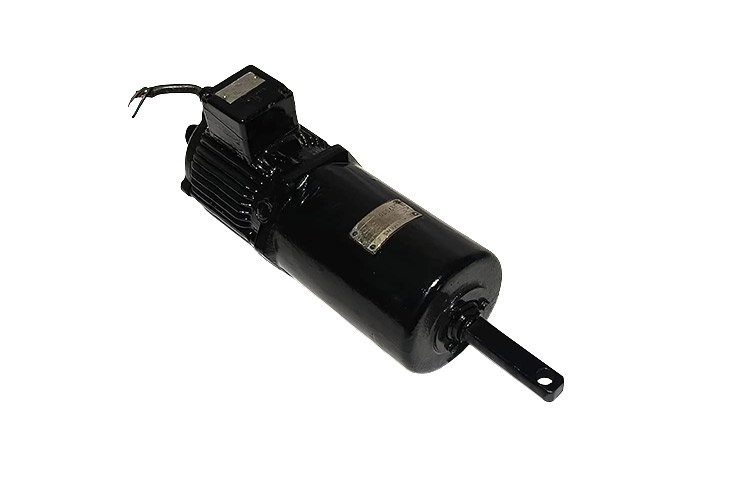

Siemens 1PF2035-2VW29 AC motor (0.37 kW, 220/380 V, 2700 rpm) supplied with Siemens MD 116-315 hydraulic actuator drive rated at 125 kp for industrial applications.Siemens 1PF2035-2VW29 Motor With MD 116-315 Hydraulic Actuator Drive
The Siemens 1PF2035-2VW29 is a precision AC motor designed for reliable industrial operation. This unit is supplied with an attached Siemens MD 116-315 hydraulic actuator drive, providing controlled mechanical force and dependable performance in industrial automation and drive systems.
Manufacturer: Siemens
Type: Motor
Motor Model: 1PF2035-2VW29
Code: 126567001008

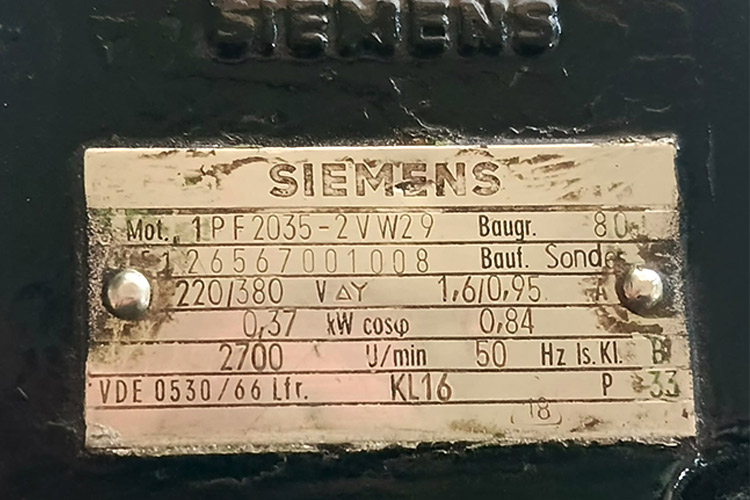

Motor Technical Information
Construction Size: 80
Build Version: Sonder
Code: 126567001008
Voltage: 220 / 380 V AC
Power: 0.37 kW
Current: 1.6 / 0.95 A
Speed: 2700 rpm
Frequency: 50 Hz
Power Factor: cos 0.84
Standard: VDE 0530/66
Insulation Class: KL16

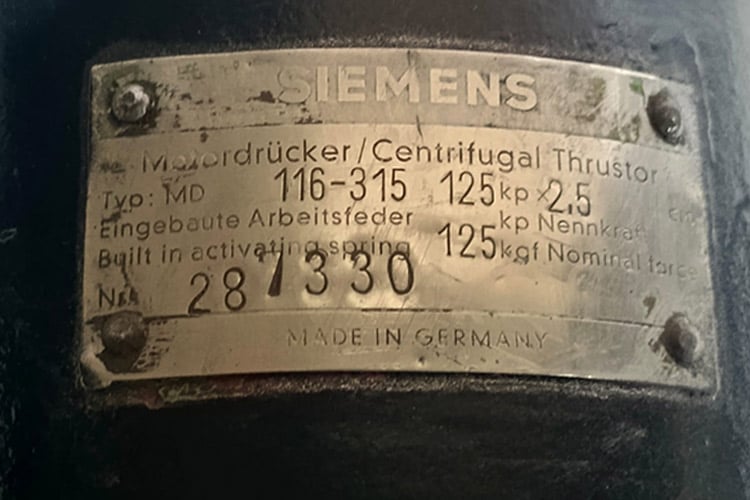

Attached Hydraulic Actuator Drive
Manufacturer: Siemens
Type: Hydraulic Actuator Drive
Model: MD 116-315
Rated Force: 125 kp × 2.5
Nominal Force: 125 kp
Serial No.: 287330
