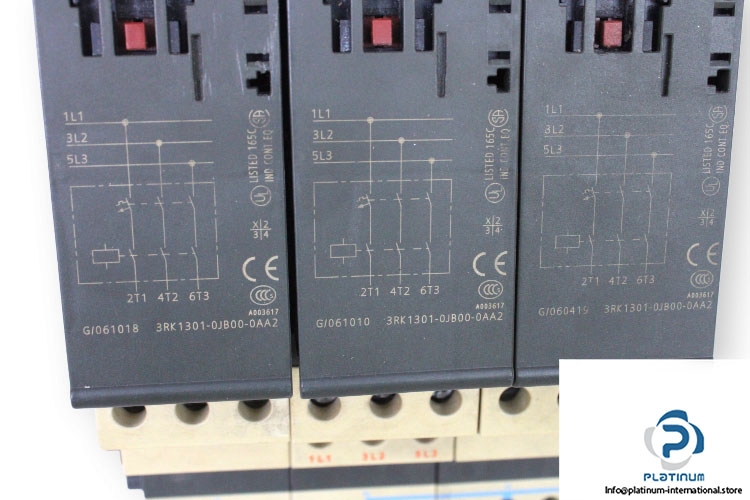

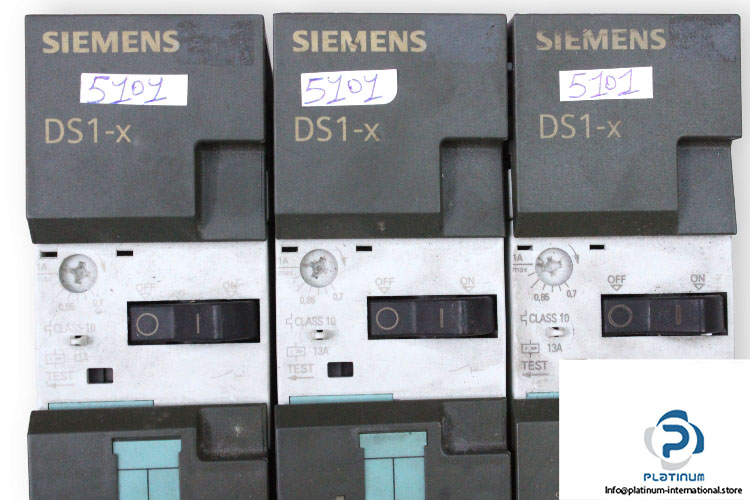

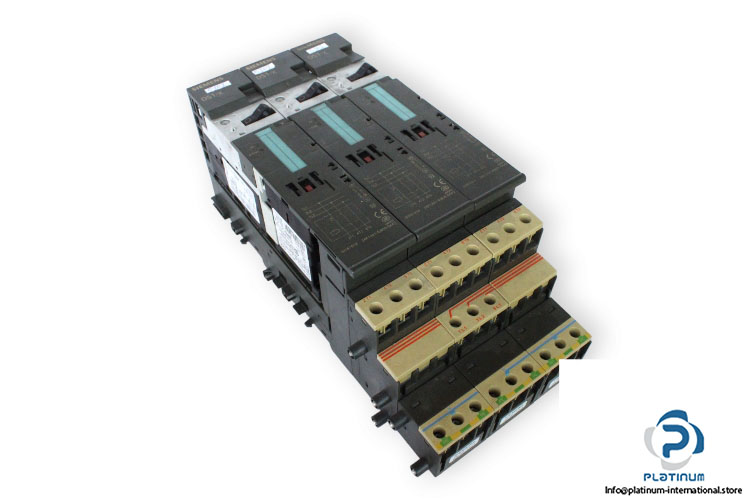

Siemens 3RK1301-0JB00-0AA2 Direct Starter

Manufacture: Siemens
Type: Direct Starter
MNR: 3RK1301-0JB00-0AA2

Used: For brake control module
Setting range: 0.7 … 1 A, 0.25 kW
Main circuit:
Rated operating voltage Ue: 400 V AC
Rated insulation voltage Ui: 500 V AC
Rated impulse strength Uimp: 6 kV
Rated frequency: 50/60 Hz
Control circuit:
Rated operating voltage Ui: 24 V DC
Current input From electronic component supply U1: approx. 20 mA
Circuit breaker:
Max. rated operating current: 12 A
Tripping class: Class 10
Adjustment ranges Thermal overload release: 0.14 – 0.2 A … 9 – 12 A
Contactor:
Rated operational current Ie: 12 A
Max. permissible output of the three phase induction motors at 500 V AC: 5.5 kW
Ambient temperature: 0 … 60°C
Dimensions: 45 x 264 x 120 mm
