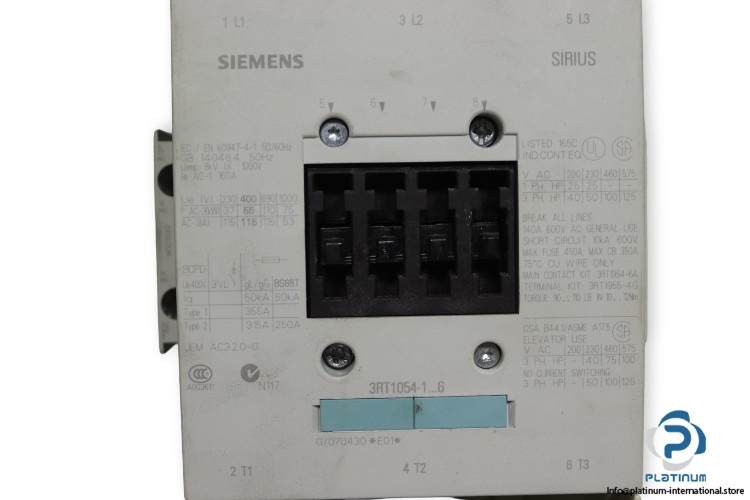

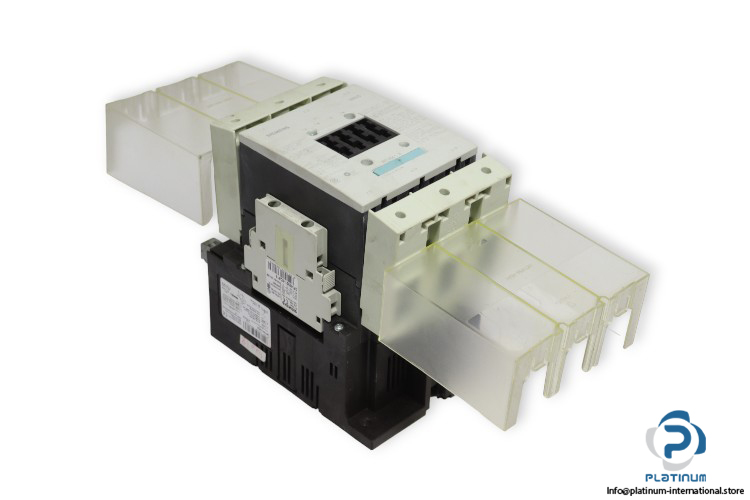

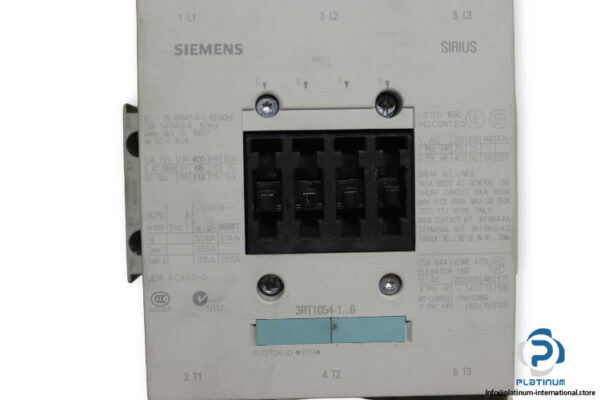

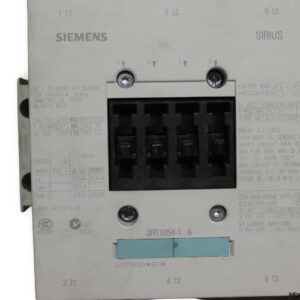

Siemens 3RT1054-1NP36 Power Contactor

Manufacturer: Siemens
Type: Power Contactor
MNR: 3RT10541NP36
Product brand name: SIRIUS
Product type designation: 3RT1

Size of contactor: S6
Number of Poles: 3
Control supply voltage at rated value: 200 … 277 V AC/DC , 50/60 Hz
Operating voltage at AC-3 rated value max: 1000 V
Surge voltage resistance of main circuit rated value: 8 kV
Contact: 2 Normally open, 2 Normally closed
Standards: EN 60947-4-1/ EN 60947-4-1
Protection Class: IP20
Dimensions (H x W x D): 172 X 120 X 170 mm
Ambient temperature during operation: -25 … +60 °C
Accessories:

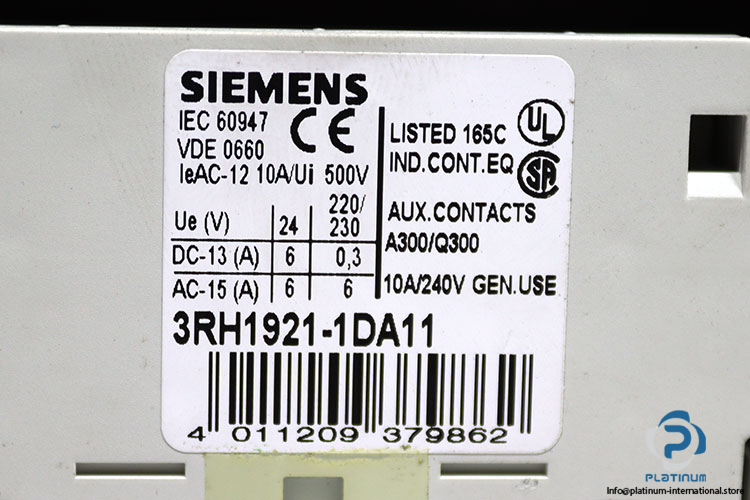

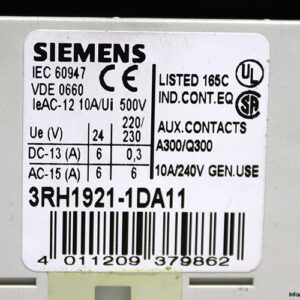

SIEMENS 3RH1921-1DA11 AUXILIARY CONTACTS BLOCK
Manufacturer: Siemens
Type: Auxiliary Contacts Block
MNR: 3RH19211DA11
