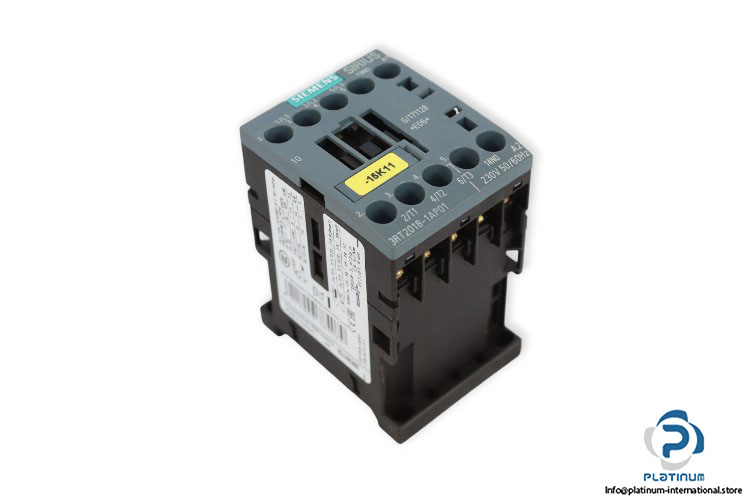

Siemens 3RT2018-1AP01 Power Contactor

Manufacture: Siemens
Type: Power contactor
MNR: 3RT2018-1AP01
Product brand name: SIRIUS
Product designation: 3RT2

Size of contactor: S00
Control supply voltage: 230 V AC
Frequency: 50/60 Hz
Rated insulation voltage Ui: 690 V
Operating current (AC-3): 16 A @ 400 V
Operating current (AC-15): 3 A @ 400 V
Rated current Ie (AC-1): 22 A
No. of NO contacts for auxiliary contacts instantaneous contact : 1 Normally open contact
Operating power@400 V (P AC-3): 7.5 kW
Operating temperature: -25 … 60°C
Protection class: IP20
No. of poles: 3
Type of electrical connection: screw-type terminals
Dimensions: 58 x 45 x 73 mm
