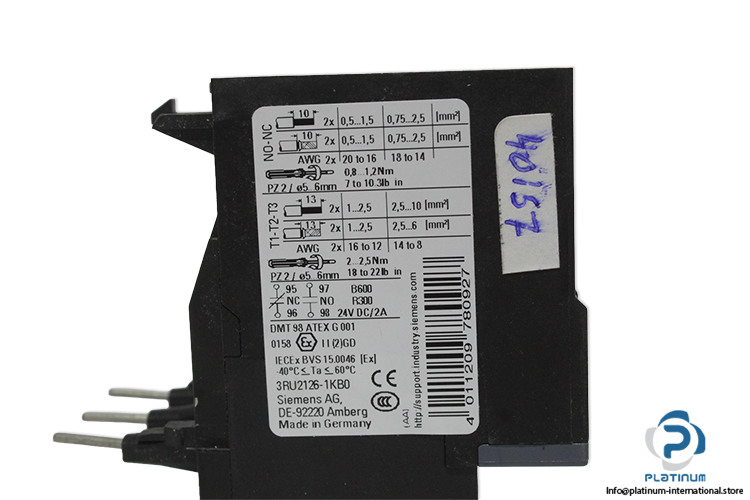

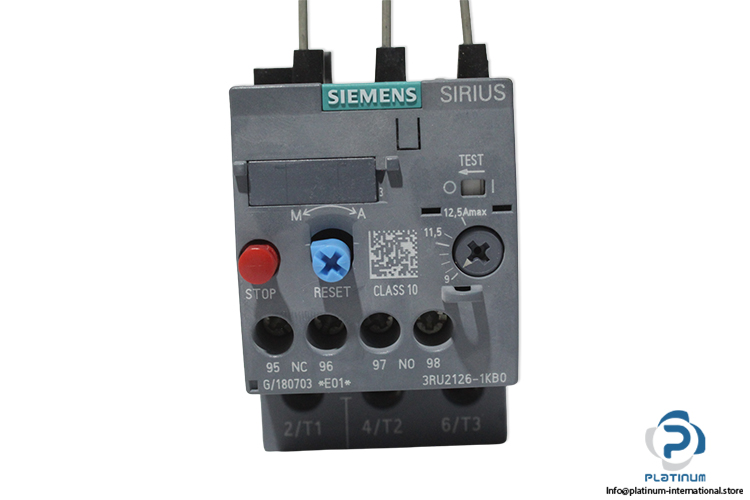

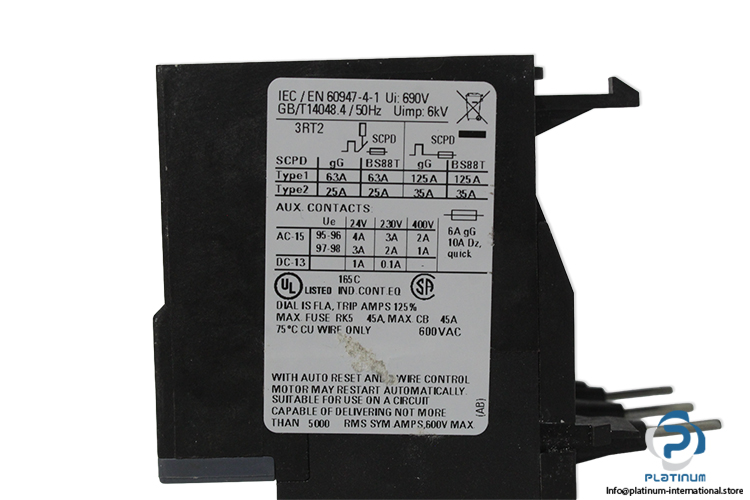

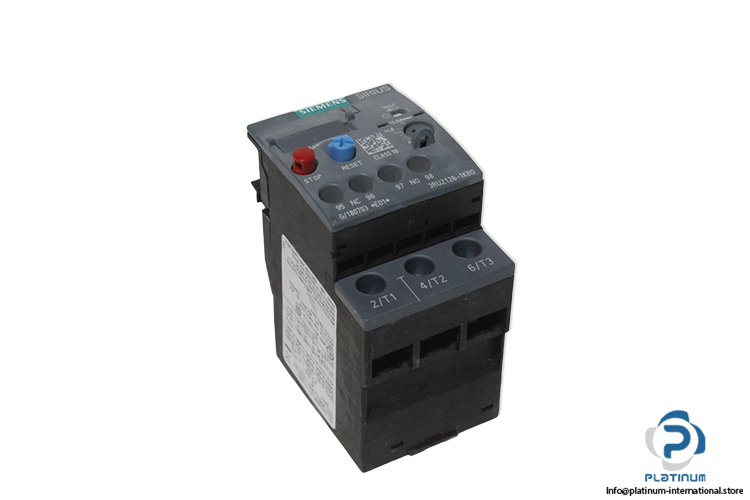

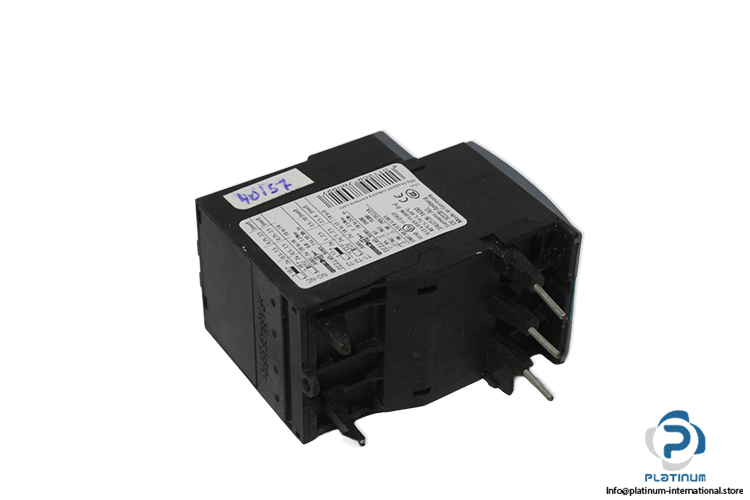

Siemens 3RU2126-1KB0 Thermal Overload Relay
New
In stock1 unitReady to ship
66,66$
Thermal Overload Relay The SIEMENS 3RU2126-1KB0 is a SIRIUS thermal overload relay with a 9 … 12.5 A current range, designed for reliable motor overload protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Brand Name | SIRIUS |
| Size | S0 |
| Rated Operating Voltage | 600 V AC |
| Rated Operating Current | 12.5 A |
| Current Sitting Range | 9 … 12.5 A |
| Frequency | 50 ... 60 Hz |
| Operating Power at 400 V | 5.5 kW |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Power Loss | 2.2 W |
| Poles No. | 3-Pole |
| Auxiliary Circuit Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Protection Class | IP20 |
| Operation Temperature | -40 ... 70 °C |
| Dimensions | 85 x 45 x 85 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103970 |
| Weight | 0,16 |
