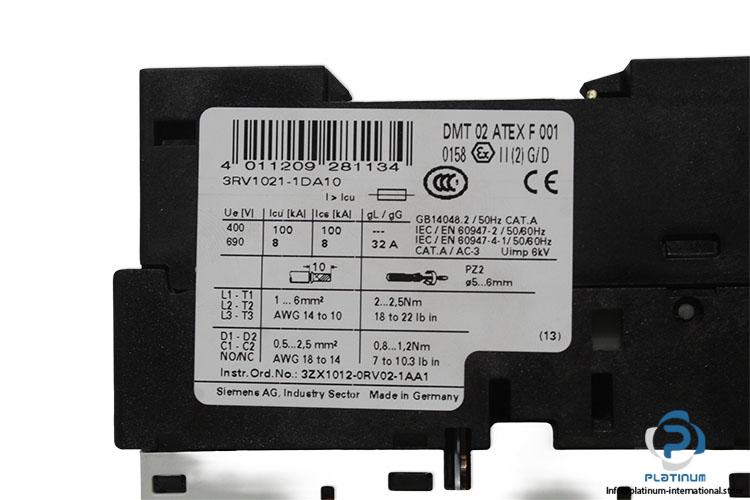

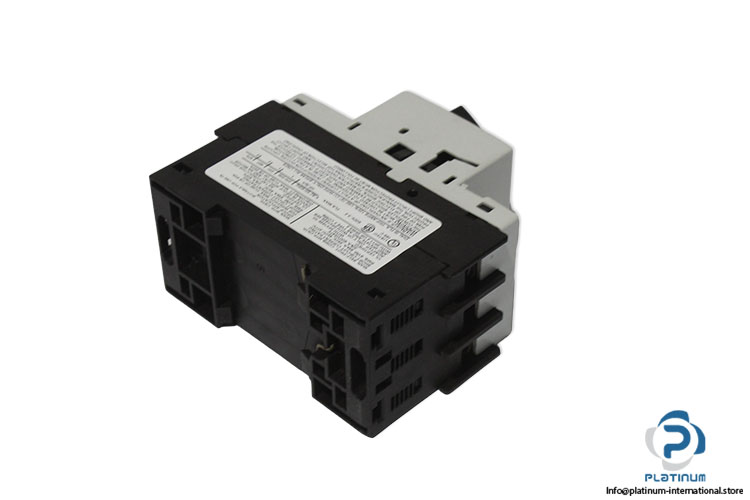

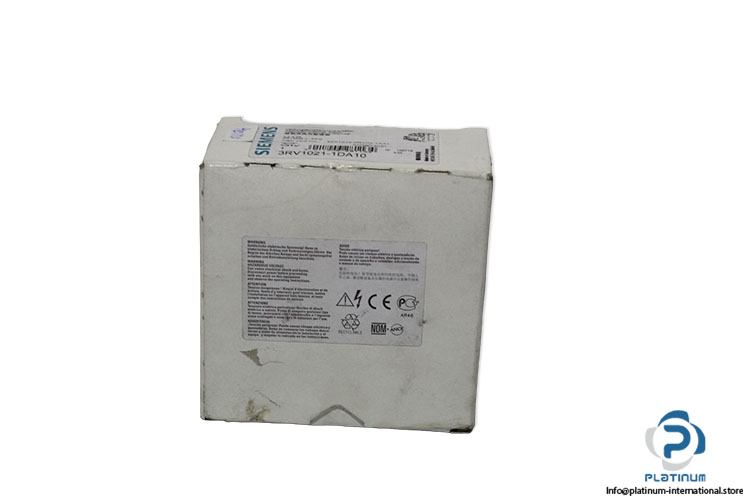

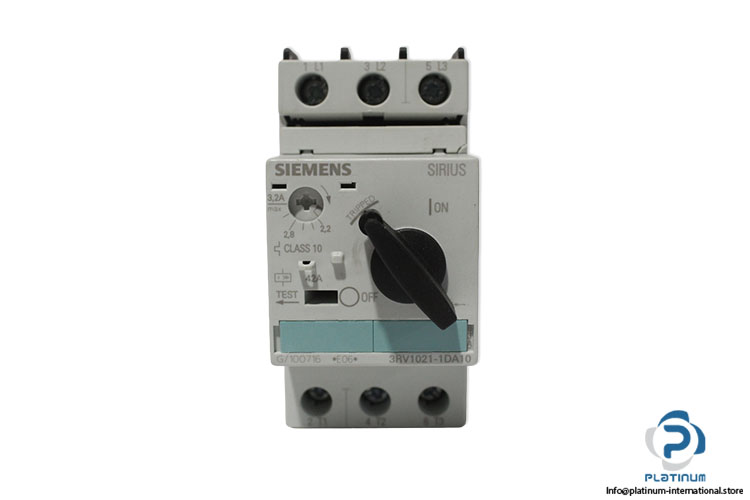

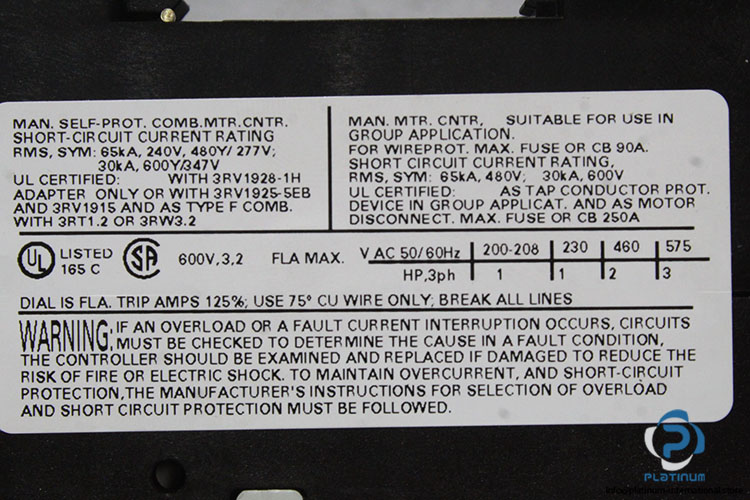

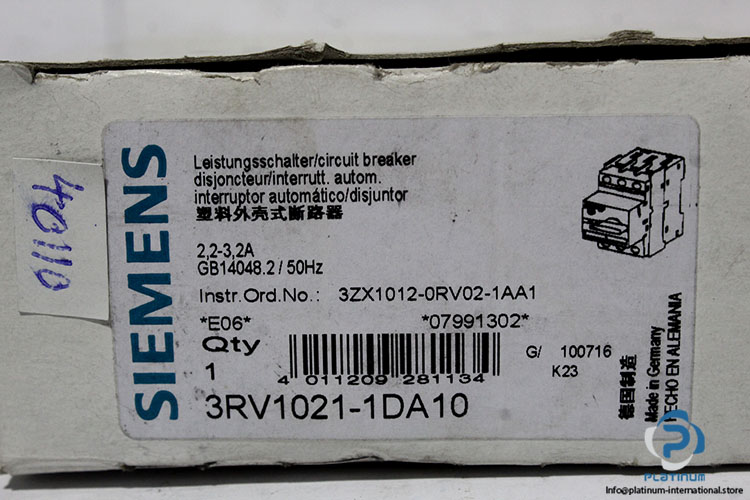

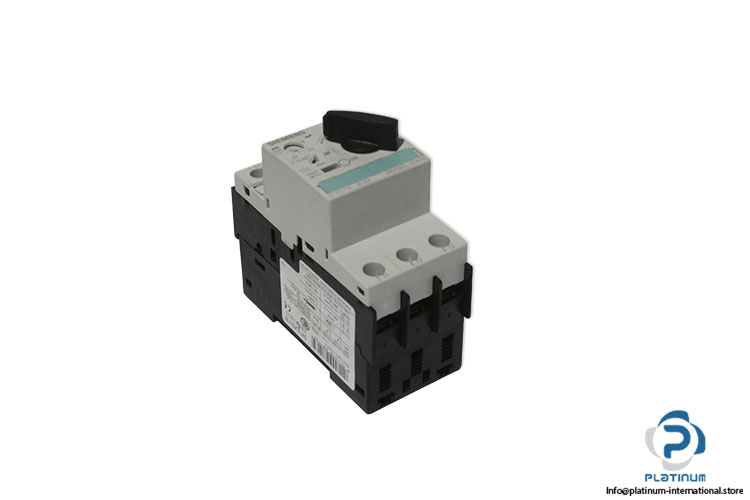

Siemens 3RV1021-1DA10 Circuit Breaker
New
In stock1 unitReady to ship
Circuit Breaker SIEMENS 3RV1021-1DA10 SIRIUS 3-pole circuit breaker designed for reliable motor protection, featuring 690 V AC operation and adjustable 2.2 … 3.2 A current.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 3ZX1012-0RV02-1AA1 |
| Brand Name | SIRIUS |
| Size | S0 |
| Used for | Motor Protector |
| Operating Voltage | 690 V AC |
| Operating Current | 3.2 A |
| Instantaneous Short-Circuit Trip Current | 42 A |
| Frequency | 50 … 60 Hz |
| Adjustable Current | 2.2 … 3.2 A |
| Operating Power | 1.1 kW |
| Power Loss | 7.25 W |
| Poles No. | 3-Poles |
| Ultimate Short-Circuit Breaking Capacity (Icu) | 400AC (100 kA) 690 (10 kA) |
| Service Short-Circuit Current Breaking Capacity (Ics) | 400AC (100 kA) 690 (10 kA) |
| Protection Class | IP20 |
| Operation Temperature | -20 … 60 °C |
| Dimensions | 97 x 45 x 96 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103932 |
| Weight | 0,36 |
