Siemens 3RV2011-1GA10 Circuit Breaker
New
In stock2 unitsReady to ship

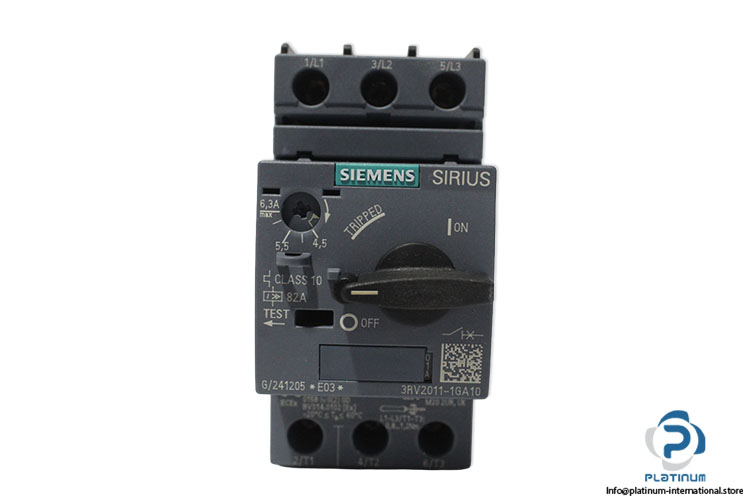

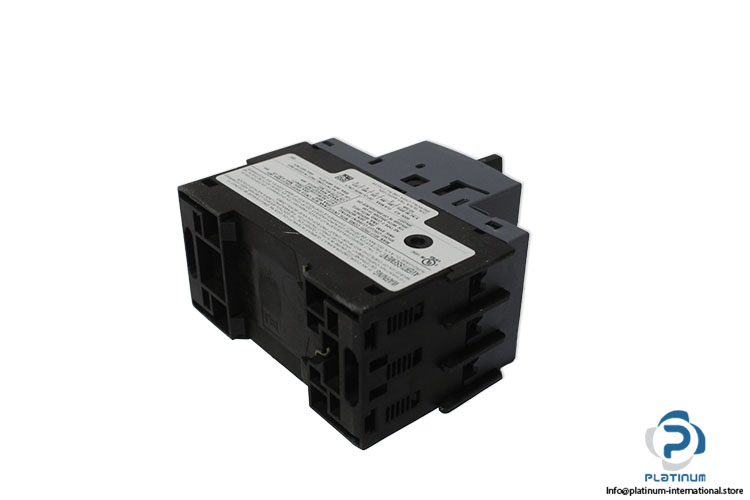

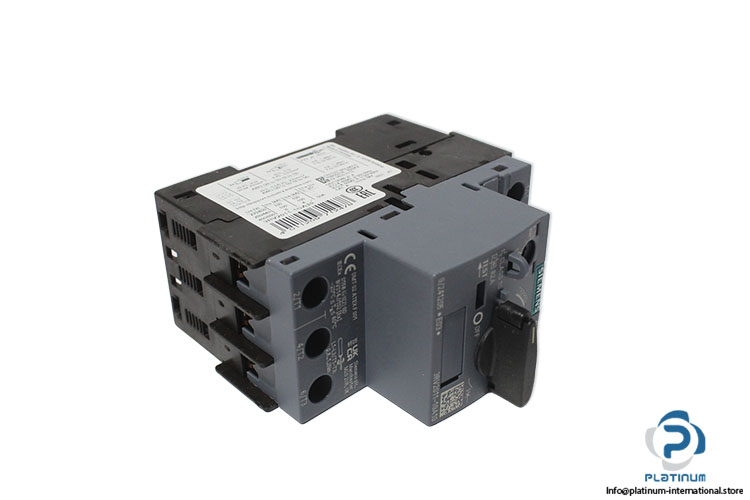

The Siemens 3RV2011-1GA10 Sirius Circuit Breaker is a compact motor protection circuit breaker featuring a 50 A rating, thermal overload release, 100 kA short-circuit breaking capacity, 690 V insulation voltage, and IP20 protection. Designed for reliable motor and electrical circuit protection in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Product Brand Name | Sirius |
| Design Of the Product | For Motor Protection |
| Product Type Designation | 3RV2 |
| size of contactor can be combined company-specific | S00, S0 |
| Current | 50A |
| Frequency | 50/60Hz |
| Power Loss | (At Ac in Hot Operating State: 7,25W), (At AC In Hot Operating State Per Pole: 2,4 W) |
| Type Of Calculation of Power Loss Current-Dependent | Quadratic |
| Insulation Voltage | 690 V |
| Surge Voltage Resistance Rated Value | 6 Kv |
| Number Of Poles for Main Current Circuit | 3 |
| Number of NC/NO contacts for auxiliary contacts | 0 |
| Trip Class | 10 |
| Design Of the Overload Release | Thermal |
| Maximum Short-Circuit Current Breaking Capacity (Icu) | (At Ac At 400 V Rated Value 100 Ka) |
| Operating Short-Circuit Current Breaking Capacity (Ics) At Ac | (At 400 V Rated Value 100 Ka) |
| Mounting Position | Any |
| Fastening Method | Screw And Snap-On Mounting Onto 35 Mm Din Rail |
| Protection Class | IP20 |
| Dimensions | 106x45x97 mm |
| Ambient Temperature | -20 to 60 °C |
| Standard | GB/T14048.2/.4, IEC/K 60947-2, IEC/K 60947-4 -1 |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1093468 |
| Weight | 0,35 |
