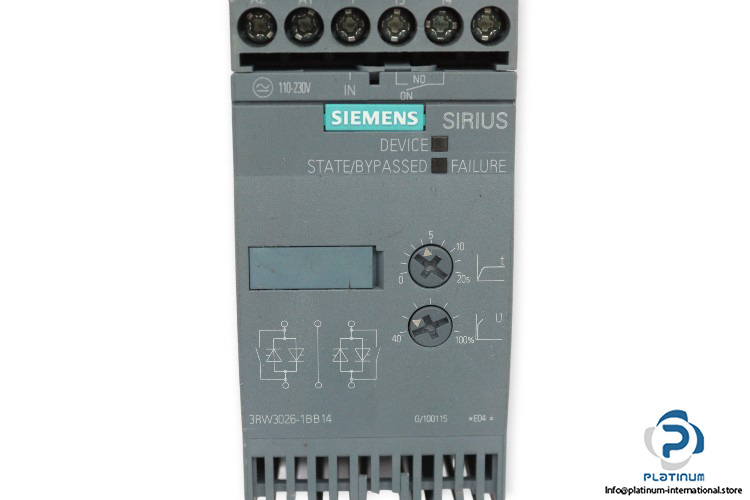

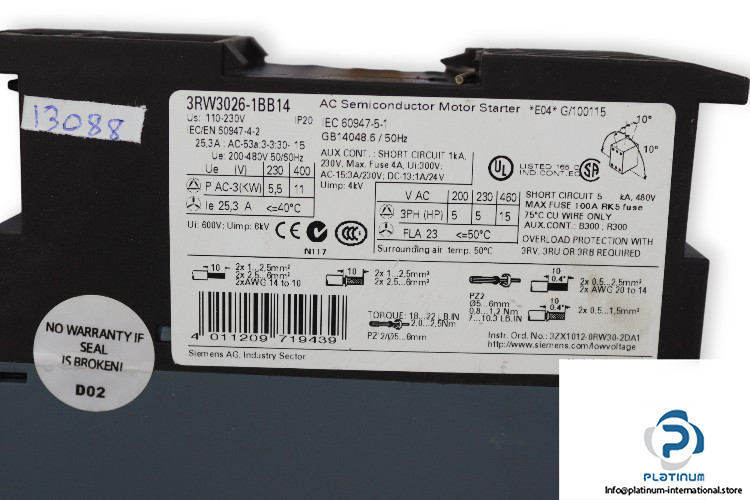

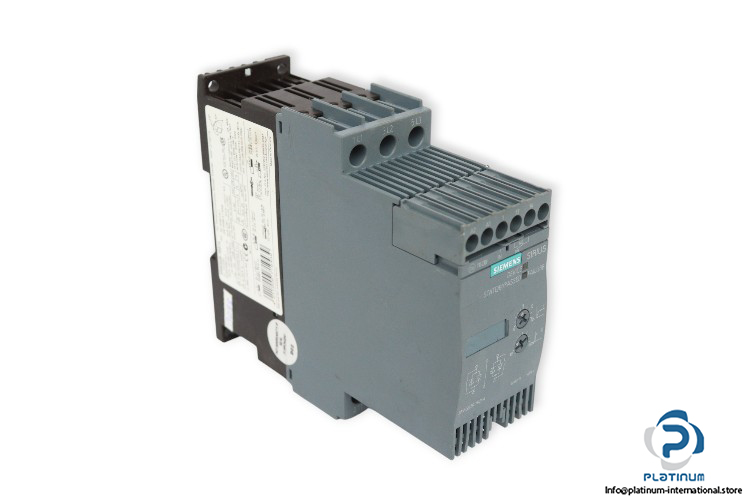

Siemens 3RW3026-1BB14 Soft Starter

Manufacturer: Siemens
Type: Soft Starter
MNR: 3RW30261BB14
Product brand name: SIRIUS

Identification number: 73 E, 1U
Insulation voltage rated value: 600 V
Control Supply Voltage: 110 … 230 V AC/DC
Control Supply Voltage Frequency: 50/60 Hz
Rated Operating Current:
at 40 °C rated value: 25 A
at 50 °C rated value: 23 A
at 60 °C rated value: 21 A
Rated Operating Power:
5.5 kW (230 V AC)
11 kW (400 V AC)
Auxiliary Contacts:
1 Normally Open
(1NO)
Type of electrical connection: screw-type terminals
Fastening method: screw and snap-on mounting
Fuse: 4 A
Standard: IEC/EN 60947-4-2, IEC 60947-5-1
Degree of pollution: 3
Protection Class IP: IP20
Operation Ambient Temperature: -25 … 60°C
Dimensions (W x D x H): 45 x 125 x 150 mm
