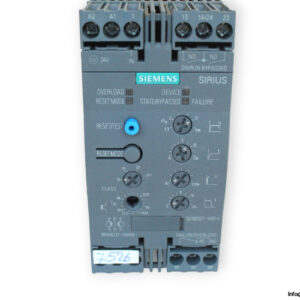

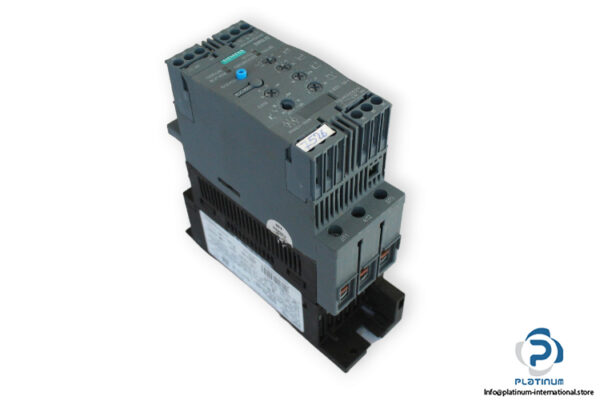

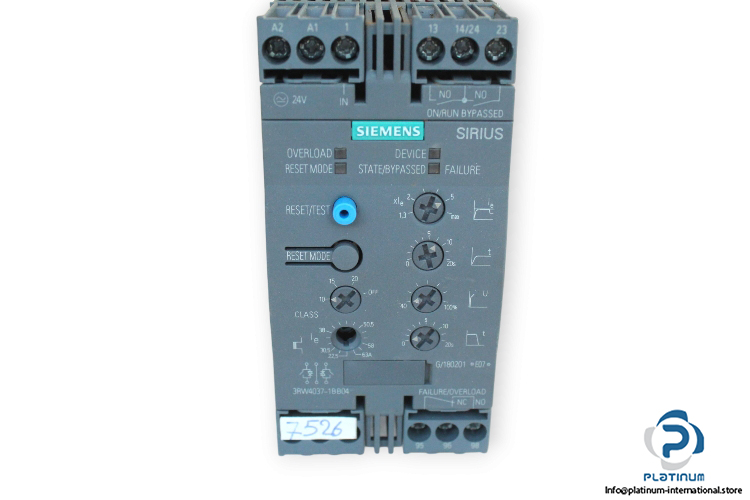

Siemens 3RW4037-1BB04 Soft Starter Without Auxiliary
Manufacturer: SIEMENS
Type: Soft Starter without Auxiliary
Model: 3RW40371BB04
Supply Voltage: 24 V AC/DC
Operating Voltage: 200 … 480 V
Frequency: 50/60 Hz
Insulation Voltage: 600 V
Impulse withstand Voltage Uimp: 6kV
Protection: Explosion Proof
Torque: 4.5 Nm/ 0.8 …. 1.2 Nm
Power Consumption: 18.5 kW@230 V, 30 Kw@400 V
Current: 63 A
Standard: IEC 60947-5-1, IEC /EN 60947-4-2
Operating Temperature: -25 … 60 °C
Degree of protection: IP00
Dimensions: 55 X 160 X 170 mm
