Siemens 6FX2001-5FP24 Absolute Encoder
Used
Available on request
279,00$
ABSOLUTE ENCODER
Siemens 6FX2001-5FP24 Absolute Encoder offers 27-bit resolution, solid shaft, PROFIBUS DP-V2 interface, and IP64 protection ” ideal for high-precision industrial automation systems.276FX2001-5FP24A5E00298020AbsoluteAutomationBitEncoderHighIndustrialIP64ProfibusResolutionSensorshaftSiemensSolid
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

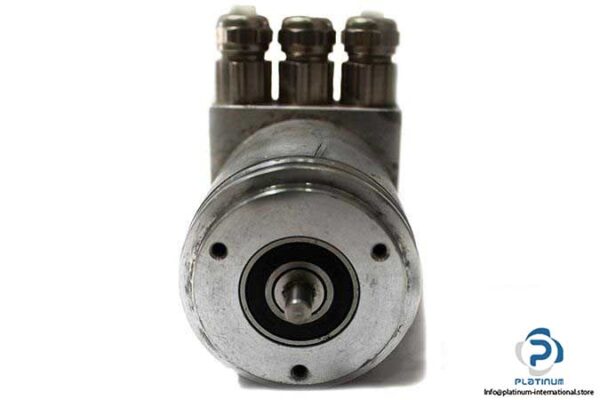

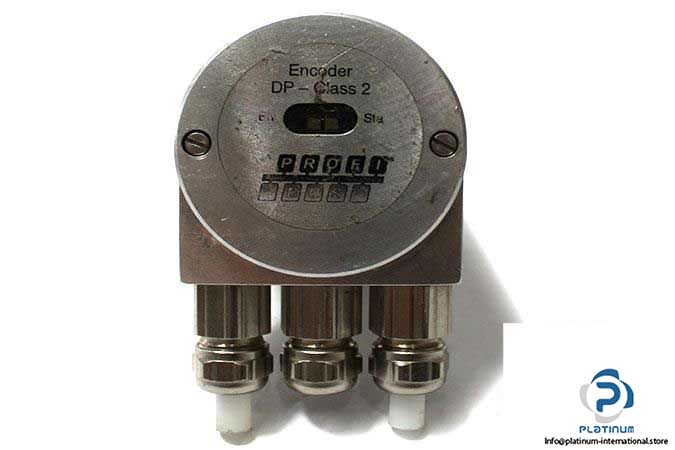

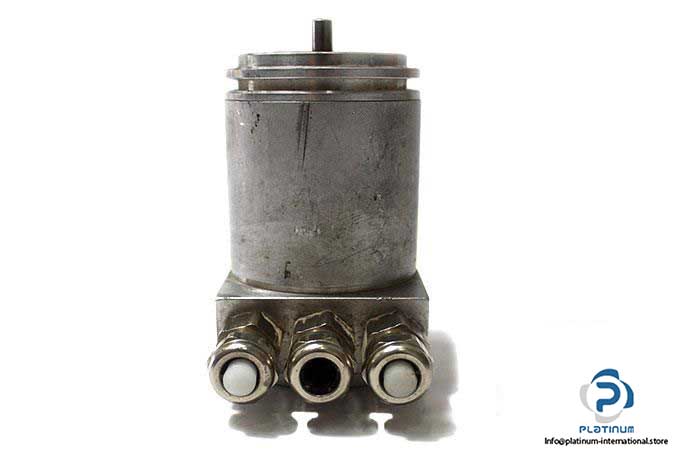

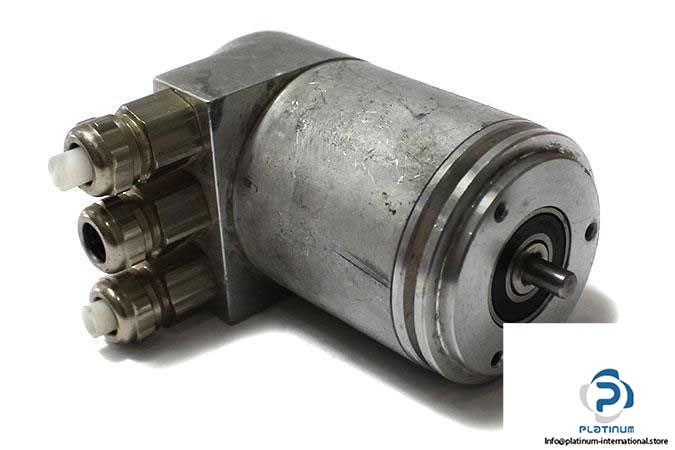

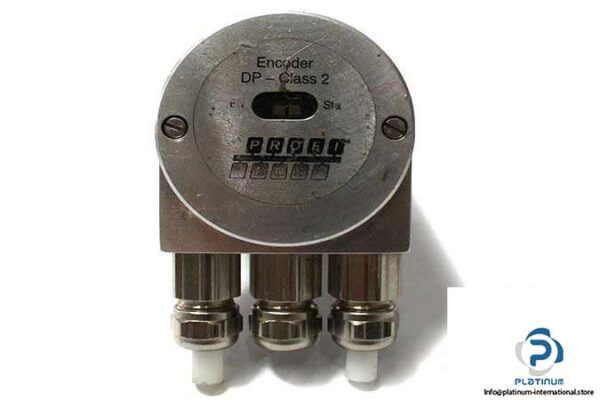

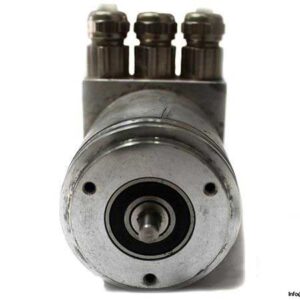

SIEMENS 6FX2001-5FP24 ABSOLUTE ENCODER
The Siemens 6FX2001-5FP24 Absolute Encoder is a high-resolution, high-performance encoder engineered for precision motion control and automation applications. Built with a solid shaft and PROFIBUS DP-V2 interface, it is ideal for demanding industrial environments requiring accurate positioning and real-time communication.
Manufacturer: SIEMENS
Type: Absolute Encoder
Model: 6FX2001-5FP24
Alternate Model: A5E00298020

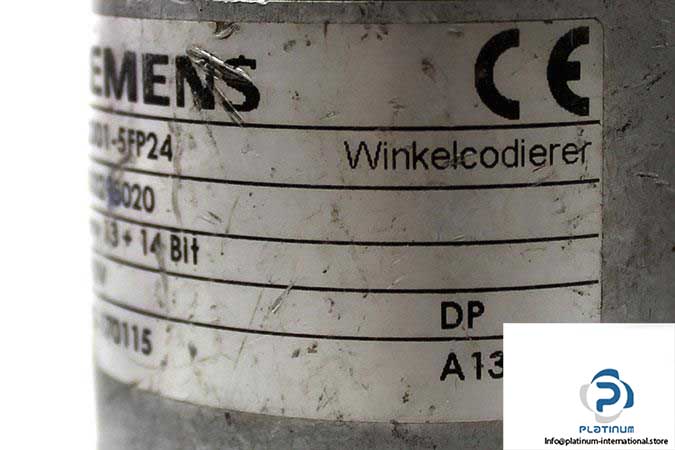

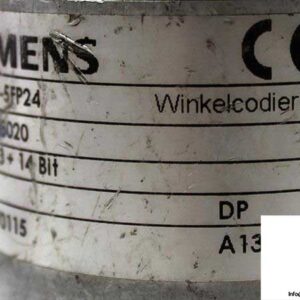

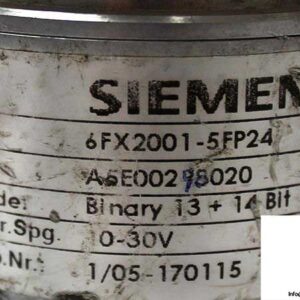

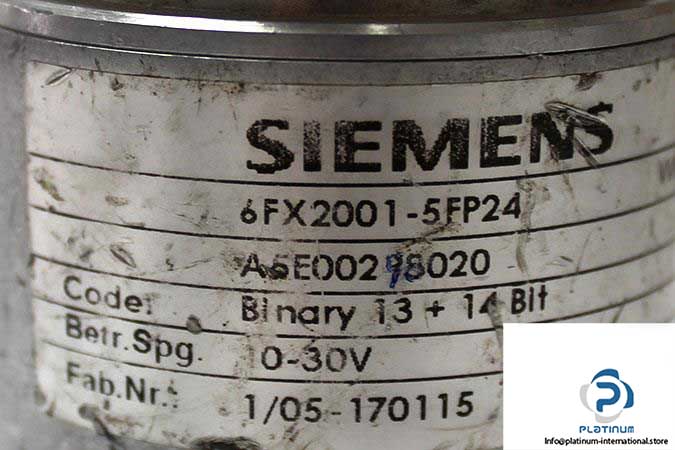

Fabrication No.: 1/05-170115

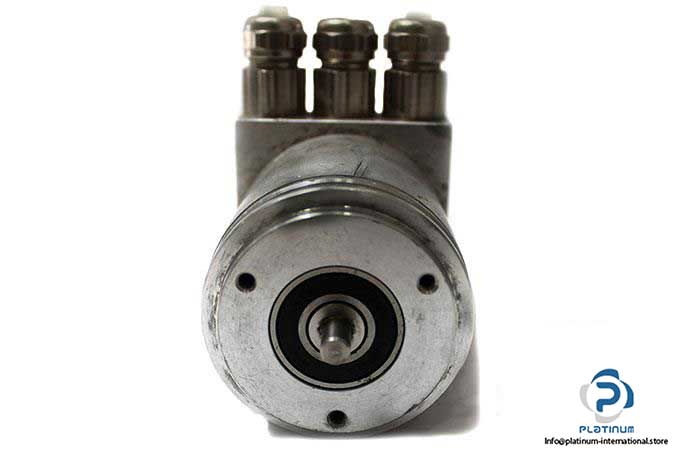

| Shaft Version | Solid Shaft |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Flange Type | Synchro Flange |
| Resolution | 27 bit (8192 increments × 16384 RPM) |
| Code | Binary 13+14 Bit |
| Transfer Rate | 12 Mbit/s |
| Voltage Supply | 0“30 VDC |
| Consumed Current | 300 mA |

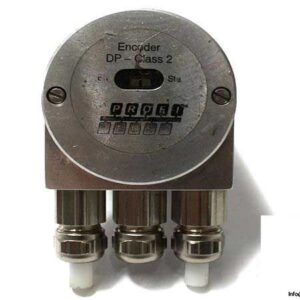

| Interface Design | PROFIBUS DP-V2 |

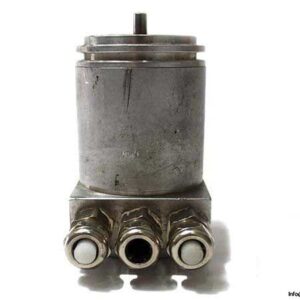

| Electrical Connection | Flexible Cable, Radial |
| Protection Class | IP64 |
| Temperature Range | -40 to 85 °C |
