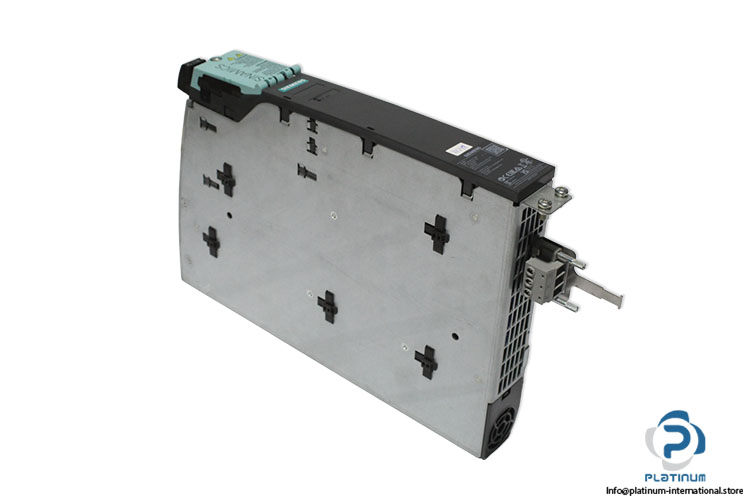

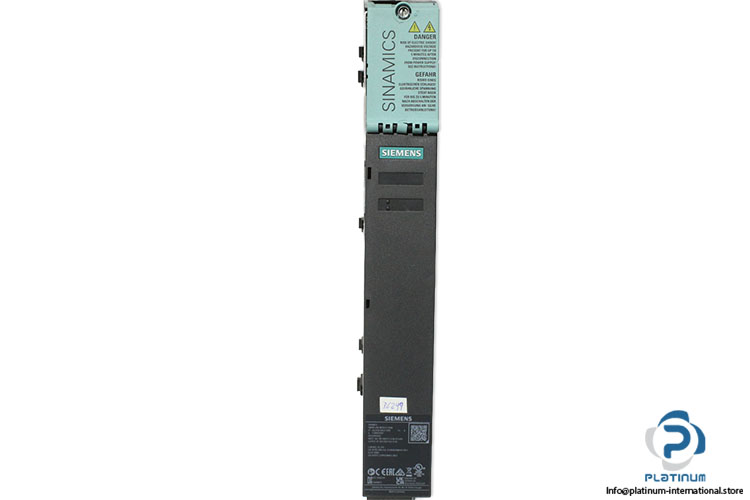

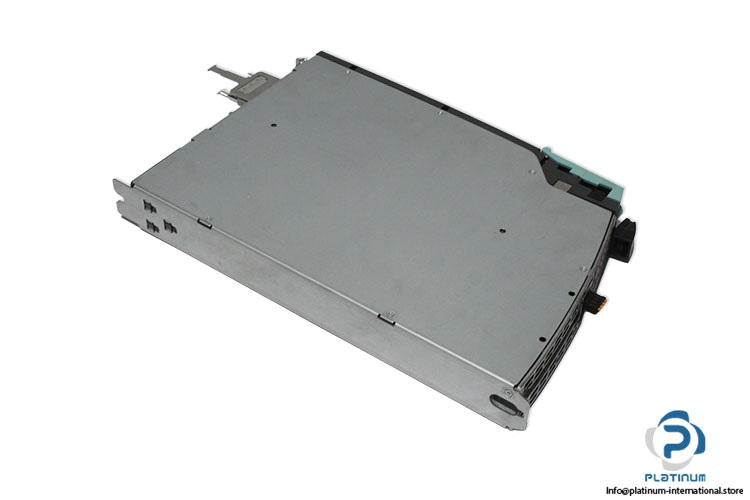

Siemens 6SL3130-6AE21-0AB1 Smart Line Module
New
In stock1 unitReady to ship
722,22$
SIEMENS SINAMICS Smart Line Module SIEMENS SINAMICS 6SL3130-6AE21-0AB1 Smart Line Module designed for industrial drive systems, featuring 3-phase AC input, 510-720 V DC output, regenerative feedback capability, and compact Booksize construction.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

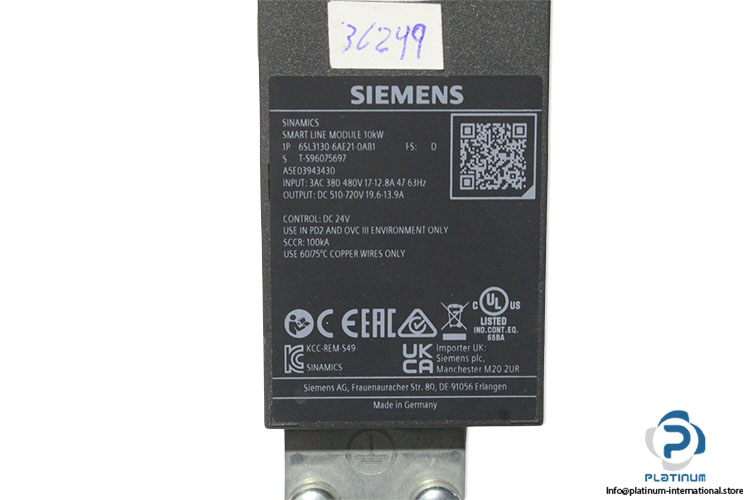

| MNR | 6SL3130-6AE21-0AB1 |
| Family | SINAMICS |
| Code | A5E03943430 |
| SN | T-596075697 |
| Number of phases, Input | 3 AC |
| Line voltage , Input | 380 ... 480 V |
| Input Current | 17-12.8A |
| Line frequency, Input | 47 ... 63 Hz |
| Short-circuit strength , Input | 65 kA |
| Fundamental power factor, minimal | 0.96 Total, 0.65 ... 0.90 Overvoltage category Class : III |
| Output Voltage Rating | 510-720 V DC |
| Output Current | 19.6-13.9A |
| SCCR | 100kA |
| DC-link voltage | 1.35 × line voltage |
| Electronics power supply with DC | 24 V (-15 % / 20 %) |
| Design | screw-type terminal |
| Conductor cross-section | 2.5 ... 6 mm² (AWG 14 ... AWG 10) |
| PE conductor | M5 screw |
| Shield connecting kit | Cable shield connection plate integrated into the connector |
| Line length, max. | Shielded 350 m (1,148.29 ft) Unshielded 560 m (1,837.27 ft) |
| Degree of protection | IP20 / UL open type |
| Type of construction | Booksize |
| USE IN | PDZ AND OVC III (Overvoltage Category III) ENVIRONMENT ONLY |
| Dimensions | Width 50 mm (1.97 in) Height 380 mm (14.96 in) Depth 270 mm (10.63 in) |
| Compliance with standards | CE, cULu |
| Infeed power Rated value | 10.0 kW (10.0 hp), for S6 duty 13.0 kW Maximum 20.0 kW |
| Regenerative feedback power Rated value | 10.0 kW (10.0 hp) |
| for S6 duty | 13.0 kW Maximum 20.0 kW |
| DC-link current at 540 V | DC 18.5 A ,at 600 V DC 16.6 A for S6 duty 22.0 A ,Maximum 33.2 A |
| Ambient temperature in operation | 0 ... 40 °C |
| Cooling air throughput | 0.008 m³/s (0.283 ft³/s) |
| Installation altitude | 1,000 m (3,280.84 ft) |
| Type of cooling | Internal air cooling |
| Certificate | KC, UKCA |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099613 |
| Weight | 4,8 |
