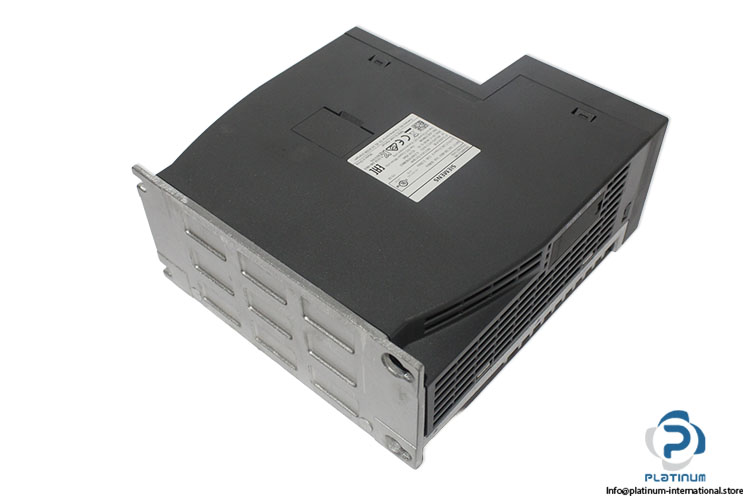

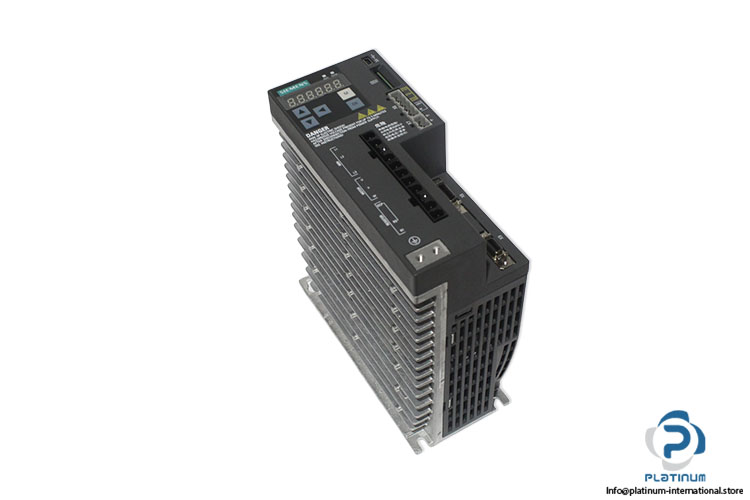

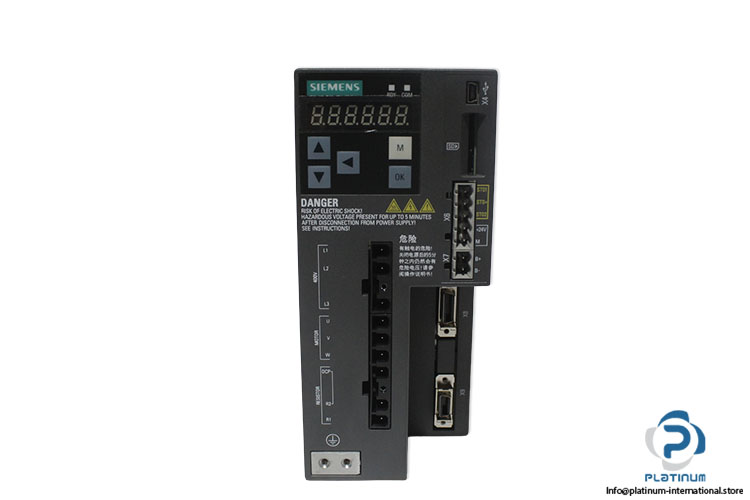

Siemens 6SL3210-5FE11-0UF0 Servo Drive
New
In stock1 unitReady to ship
Servo Drive Siemens SINAMICS V90 three-phase servo drive with 0.75/1.0 kW rated output power, 380-480 V AC input and PROFINET communication for industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

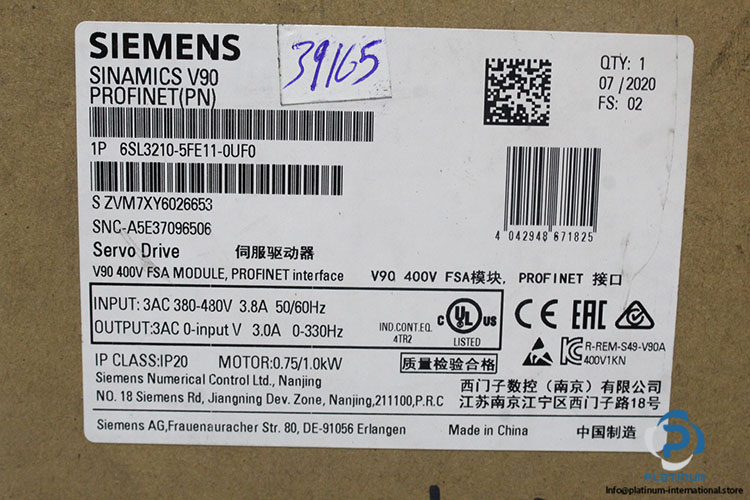

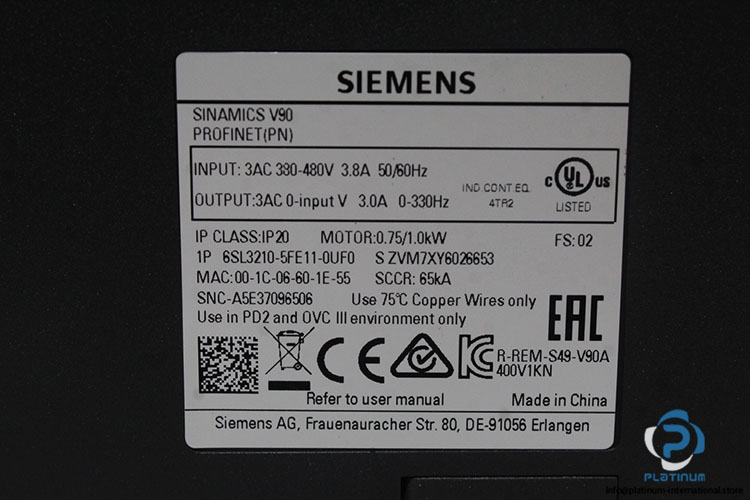

| MNR | 6SL3 210-5FE11-0UF0 |
| Serial No. | ZVM7XY6026653 |
| Family | SINAMICS V90 |
| MAC Address | 00-1C-06-60-1E-55 |
| Code | SNC-A5E37096506 |
| FS | 02 |
| Number of phases | 3 AC |
| Input voltage | 380 ... 480 V AC +10 % -15 % |
| Input current | 3.8 A |
| Input Frequency | 50/60 Hz |
| Output Rated power | 0.75/1.0 kW |
| SCCR | 65kA |
| Output voltage | 0-380 ... 480 V AC |
| Rated output current | 3 A |
| Output Frequency | 0-330 Hz |
| No. of digital inputs (DI) | 4 |
| No. of Digital outputs (DO) | 2 |
| Communication | PROFINET |
| Degree of protection | IP20 |
| Frame size | FSA |
| Cooling natural | natural convection |
| Certificate | cULus, EAC, CE, KC |
| Ambient Operation temperature | 0 ... 45 °C |
| Dimensions | 80 x 180 x 200 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1098284 |
| Weight | 2,19 |
