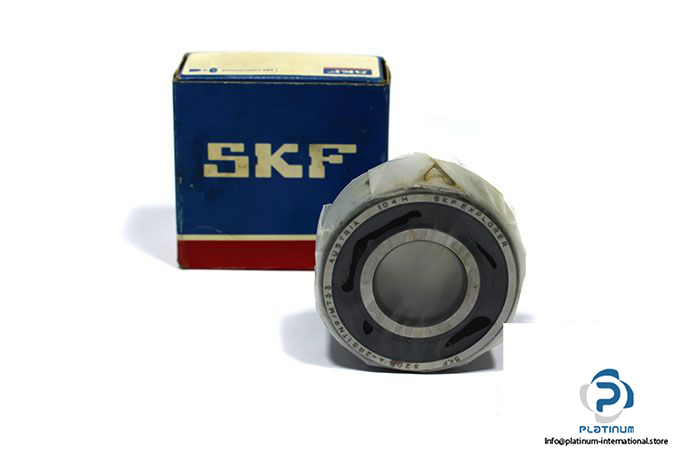

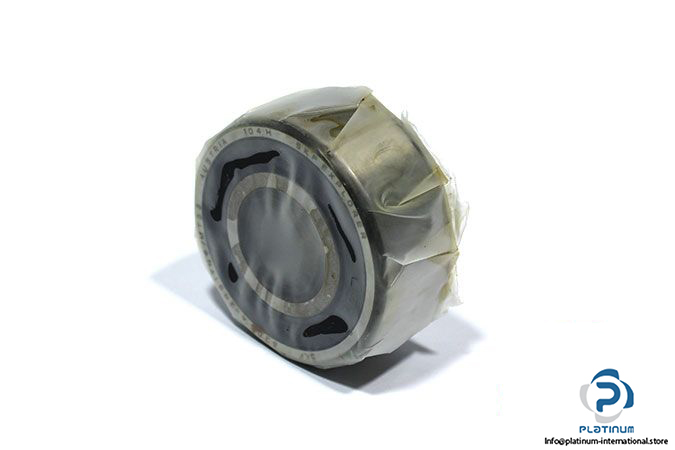

SKF 3204 A-2RS1TN9/MT33 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing

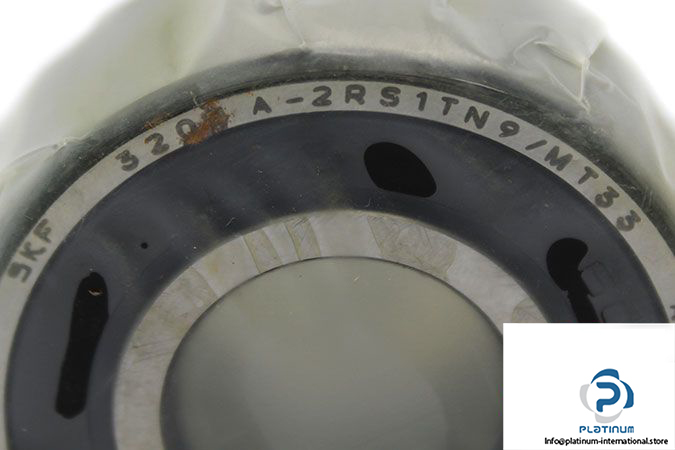

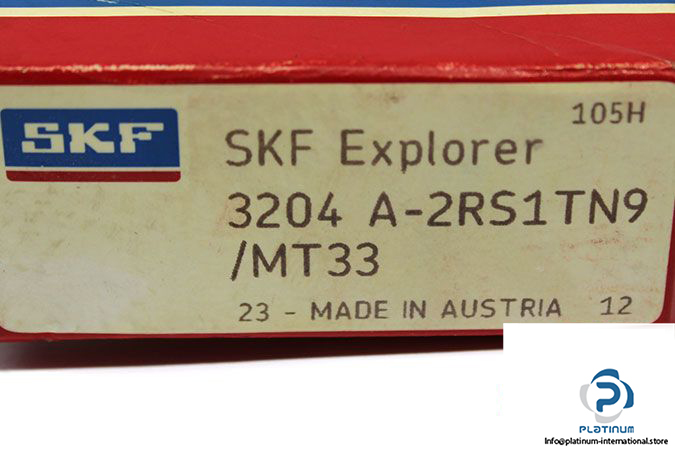

Model: 3204 A 2RS1TN9 MT33

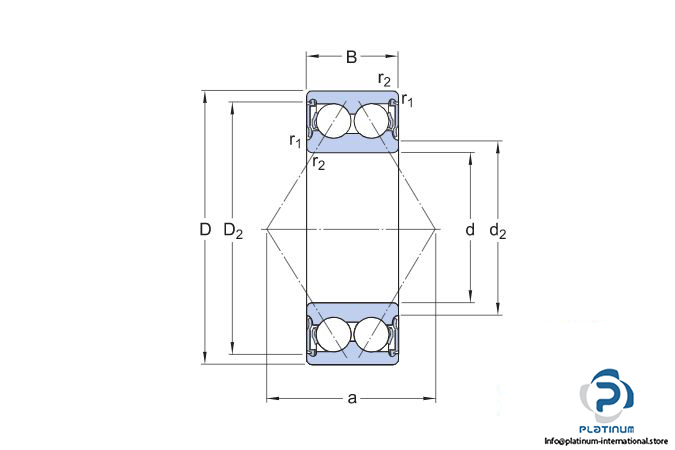

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C: 20.4 kN
Static C0: 12.9 kN
Fatigue load limit Pu: 0.55 kN
Limiting speed: 10000 rpm
Seal: Contact seal, NBR, on both sides
Cage: TN9, Glass fibre reinforced PA66 cage
