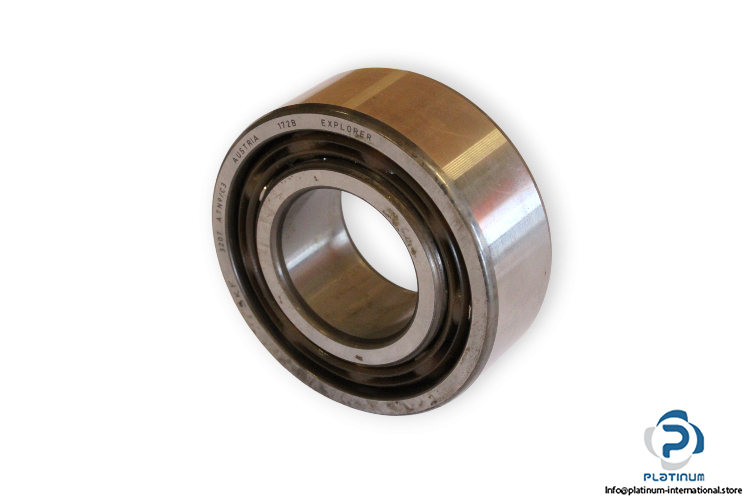

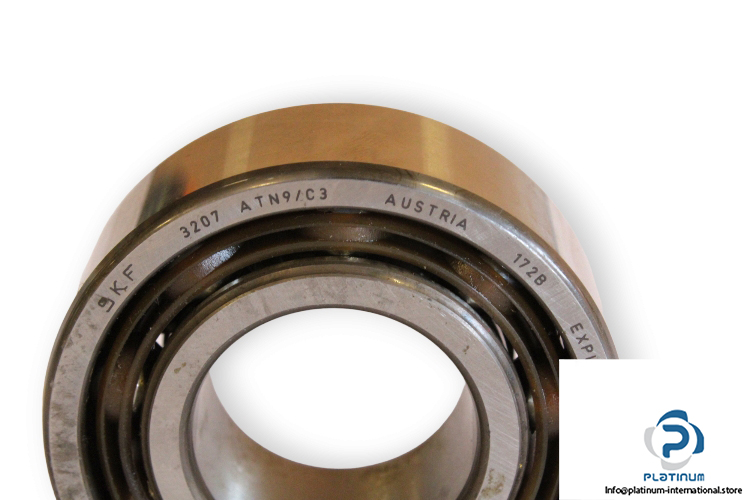

SKF 3207 ATN9/C3 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3207ATN9/C3
Dimensions
Bore Diameter d: 35 mm
Outer diameter D: 72 mm
Width B: 27 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 40500 N
Static C0r: 30000 N
Fatigue load limit: 1270 N
Limiting Speed: 9000 rpm
Reference speed: 9000 rpm
Axial internal clearance: C3
Cage: TN9, Glass fibre reinforced PA66 cage
