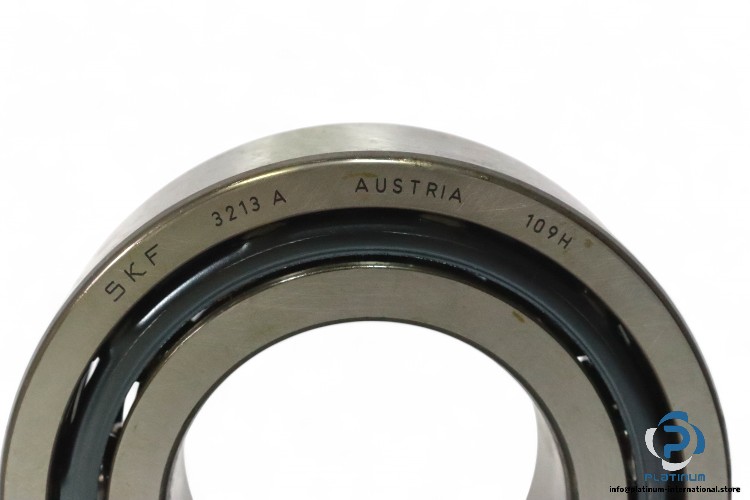

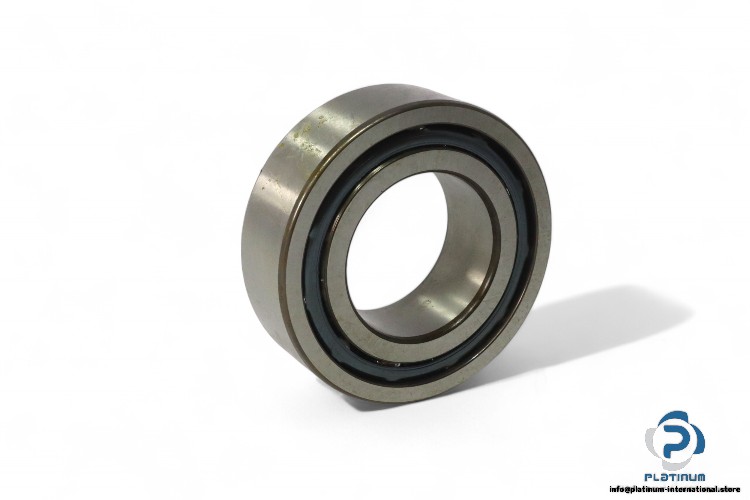

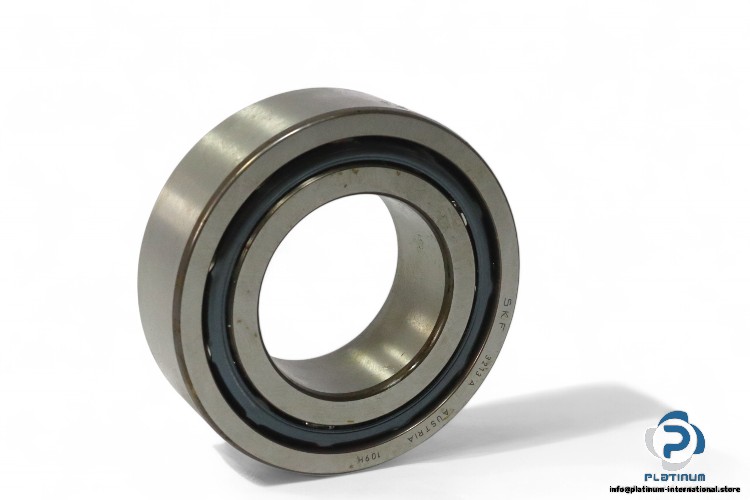

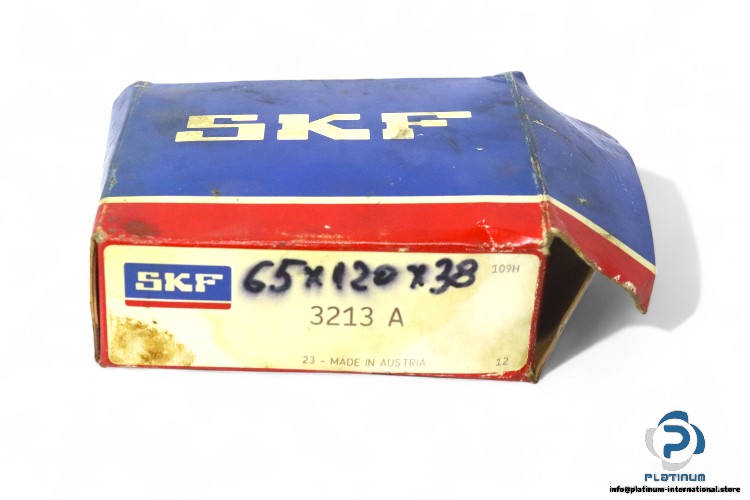

SKF 3213 A Double ROW Angular Contact Ball Bearing

Manufacturer: SKF
Type: DOUBLE ROW ANGULAR CONTACT BALL BEARING
Model: 3213-A

Bore Diameter: 65 mm
Outer diameter: 120 mm
Width: 38.1 mm
Chamfer r_min: 1.5 mm
Contact angle: 30°
Basic load ratings:
Dynamic C_r: 80.6 kN
Static C_0r: 73.5 kN
Fatigue limit load C_ur:  3.1 kN
Limiting Speed: 4800 rpm
Reference speed: 5600 rpm
Cage design: Sheet metal
Design: A, Without filling slots
