SKF 3303 ATN9 Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing
SKF 3303ATN9 double row angular contact ball bearing with 30° contact angle, TN9 polyamide cage, and CN internal clearance for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

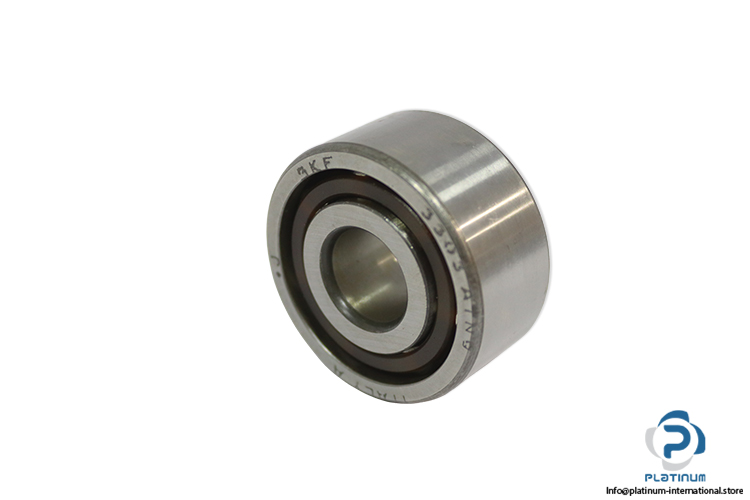

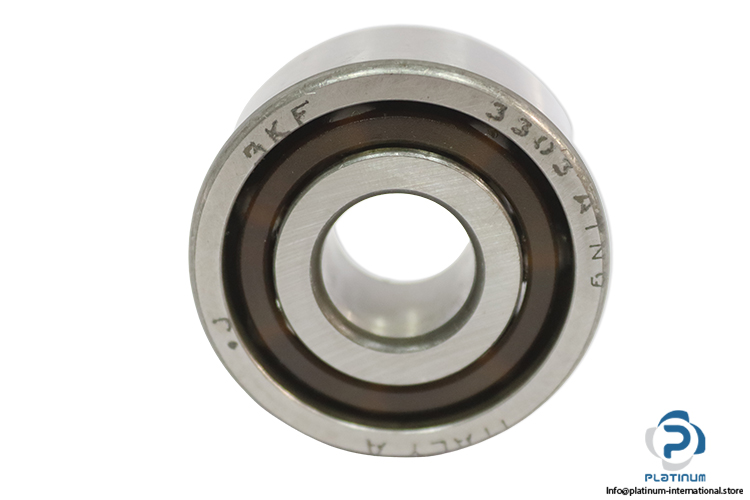

SKF 3303ATN9 Double Row Angular Contact Ball Bearing
The SKF 3303ATN9 is a double row angular contact ball bearing designed to support combined radial and axial loads with stable performance and precise alignment in industrial applications.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3303ATN9
| Bore Diameter | 17 mm |
| Outer Diameter | 47 mm |
| Width | 22.2 mm |
| Contact Angle | 30° |
| Basic Dynamic Load Rating | 21.6 kN |
| Basic Static Load Rating | 12.7 kN |
| Fatigue Load Limit | 0.815 kN |
| Reference Speed | 17,000 r/min |
| Limiting Speed | 14,000 r/min |
| Cage | TN9, Glass Fibre Reinforced PA66 |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Axial Internal Clearance | CN |
