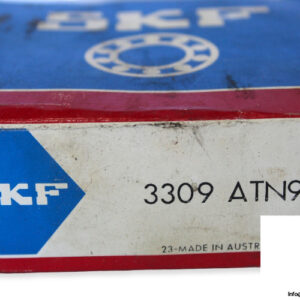

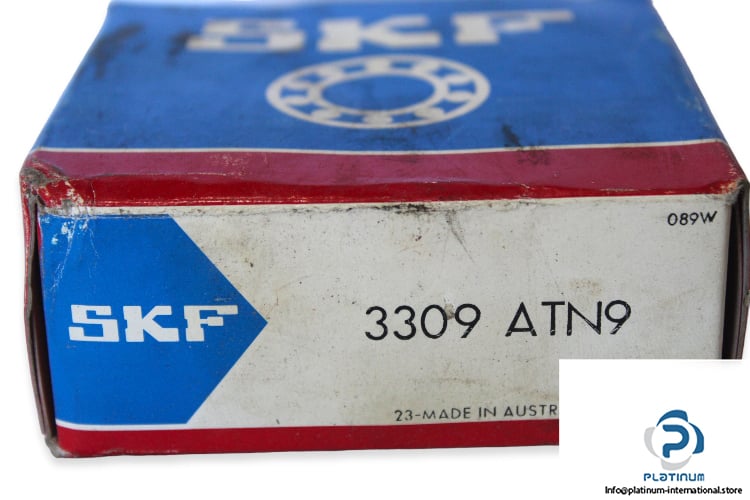

SKF 3309 ATN9 Double ROW Angular Contact Ball Bearing
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3309 A TN9
Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 100 mm
Width B: 39.7 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic Cr: 75000 N
Static C0r: 53000 N
Limiting Speed: 6700 rpm
Reference speed: 7500 rpm
Cage: Non-metallic
Ring type: One-piece inner and outer rings
