SKF 52305 Thrust Ball Bearing

Manufacturer: SKF

Type: Double direction thrust ball bearing

Model: 52305

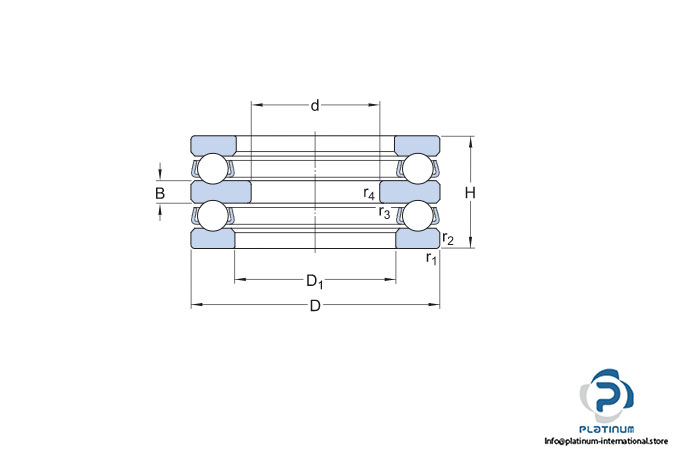

Dimensions:

Bore diameter d: 20 mm

Outer diameter D: 52 mm

Height H: 34 mm

Inner diameter housing washer D₁: 27 mm

Minimum chamfer dimension r _1,2: 1 mm

Basic load ratings:

Dynamic C: 34500 N

Static C₀: 60000 N

Fatigue load rating P_u: 2240 N

Reference speed: 3200 rpm

Limiting speed: 4500 rpm

Cage: Sheet Metal

Housing washer type: Flat
