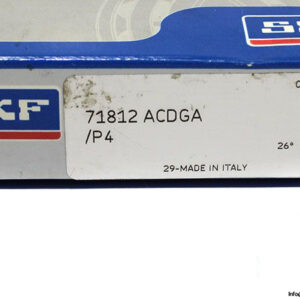

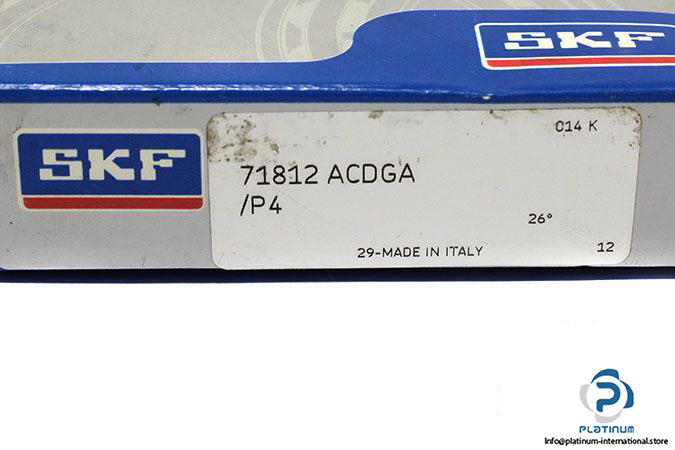

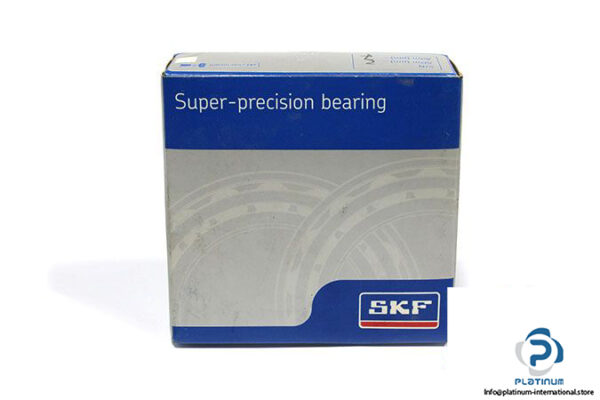

SKF 71812 ACDGA/P4 Angular Contact Ball Bearing

Manufacturer: SKF

Type: Super-precision, high-capacity, universally matchable single row angular contact ball bearing

Model: 71812ACDGA/P4



Dimensions:

Bore Diameter d: 60 mm

Outer diameter D: 78 mm

Width: 10 mm

Contact angle: 25 °

Dynamic load rating: 12.7 kN

Static load rating: 13.4 kN

Fatigue load limit: 0.57 kN

Limiting speed for grease lubrication: 15000 RPM

Limiting speed for oil lubrication: 22000 RPM

Tolerance class: P4

Cage material: Cotton fabric reinforced phenolic resin cage
