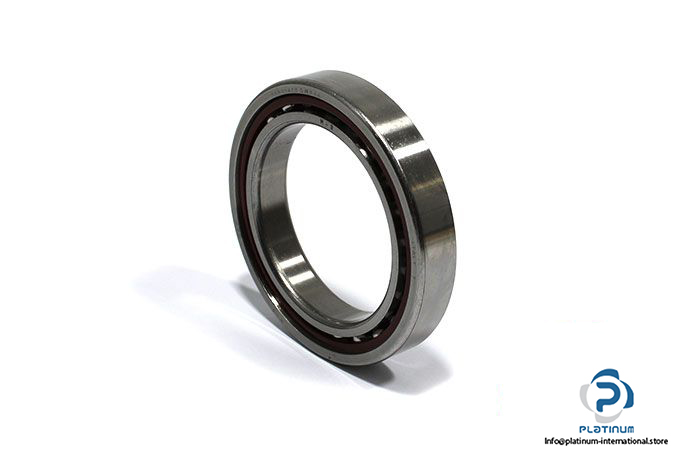

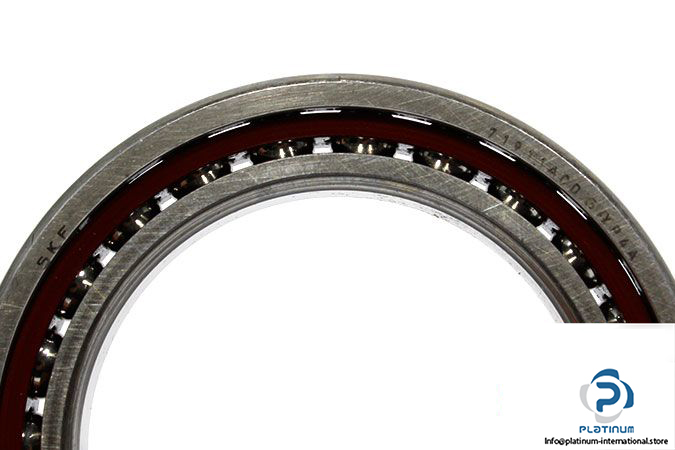

SKF 71911 ACDGA/P4A Angular Contact Ball Bearing
Manufacturer: SKF
Type: Super-precision, high-capacity, universally matchable single row angular contact ball bearing
Model: 71911 ACDGA P4A
Dimensions:
Bore Diameter d: 55 mm
Outer diameter D: 80 mm
Width: 13 mm
Contact angle: 25 °
Dynamic load rating: 18.2 kN
Static load rating: 13.7 kN
Fatigue load limit: 0.585 kN
Limiting speed for grease lubrication: 15000 RPM
Limiting speed for oil lubrication: 24000 RPM
Tolerance class: P4A
Cage material: Cotton fabric reinforced phenolic resin cage
