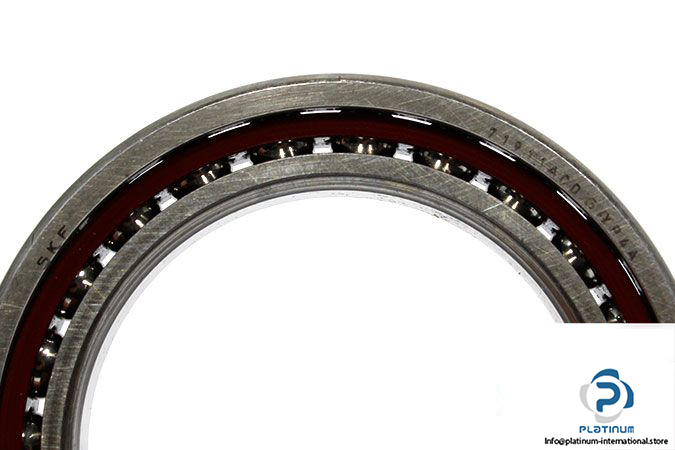

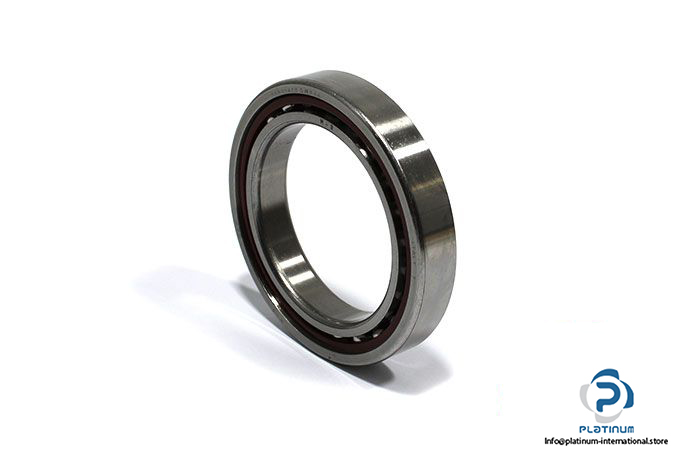

SKF 71911 ACDGA/P4A Angular Contact Ball Bearing

Manufacturer: SKF

Type: Super-precision, high-capacity, universally matchable single row angular contact ball bearing

Model: 71911 ACDGA P4A



Dimensions:

Bore Diameter d: 55 mm

Outer diameter D: 80 mm

Width: 13 mm

Contact angle: 25 °

Dynamic load rating: 18.2 kN

Static load rating: 13.7 kN

Fatigue load limit: 0.585 kN

Limiting speed for grease lubrication: 15000 RPM

Limiting speed for oil lubrication: 24000 RPM

Tolerance class: P4A

Cage material: Cotton fabric reinforced phenolic resin cage
