SKF 7204 CDGA/P4A Angular Contact Ball Bearing
Manufacturer: SKF
Type: Super-precision single row angular contact ball bearing
Model: 7204 CDGA/P4A

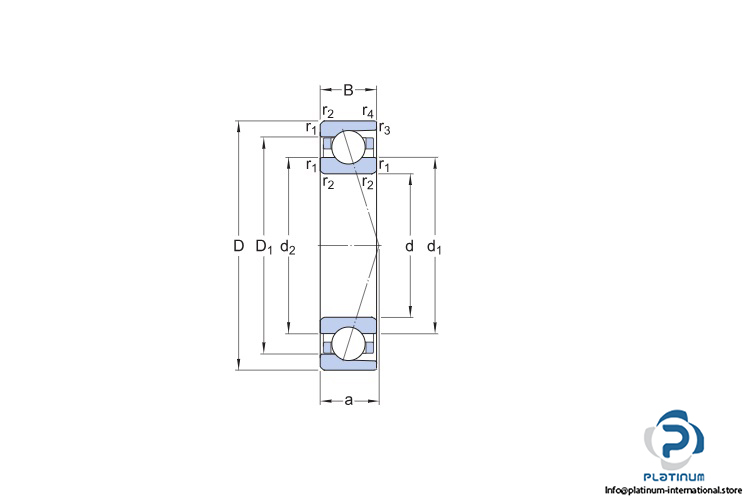

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 14 mm
Contact angle α: 15 °
Basic load ratings:
Dynamic C: 11.9 kN
Static C0: 5.85 kN
Fatigue load limit Pu: 0.245 kN
Design: High-capacity D
Tolerance class: P4A
Universal matching bearing: back-to-back or face to face
Ring type: One-piece inner and outer rings
