SKF 7204 CDGA/P4A Angular Contact Ball Bearing

Name: SKF 7204 CDGA/P4A ANGULAR CONTACT BALL BEARING
SKU: 1029123
Availability: LimitedAvailability

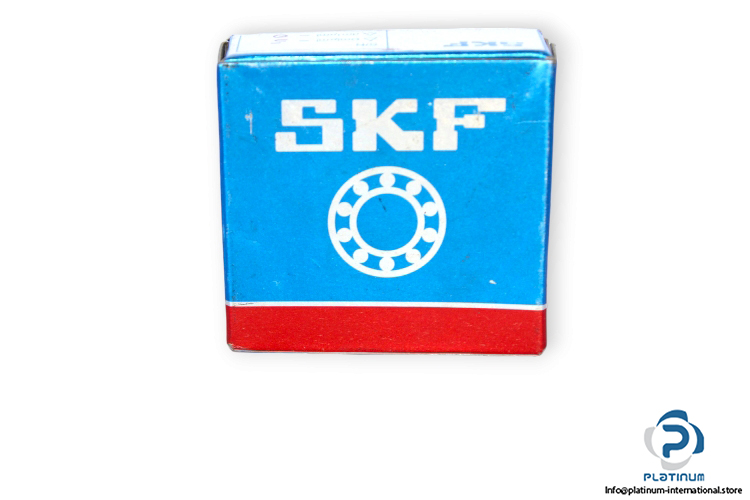

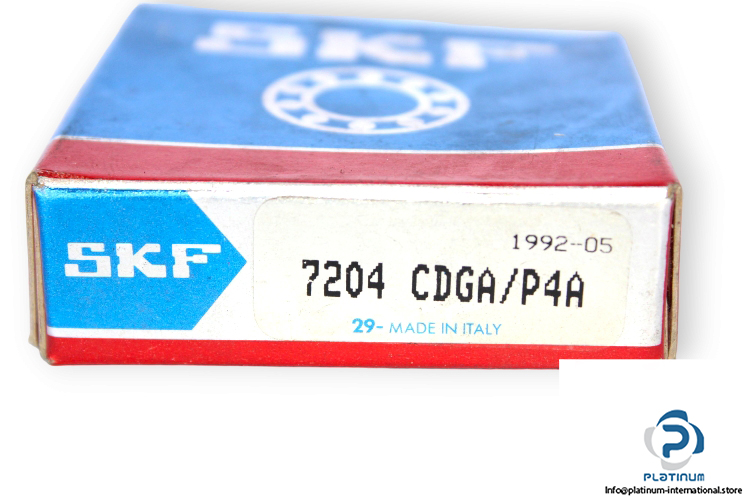

skf-7204-CDGA_P4A-angular-contact-ball-bearing-(new)-(carton)

skf-7204-CDGA_P4A-angular-contact-ball-bearing-(new)-(carton)-1

skf-7205-CDGA_P4A-angular-contact-ball-bearing-(new)-(carton)-2

Novo

Em estoque3 unidadesPronto para envio

Tipo: Rolamento de esferas de contato angular de fileira única de super precisão

Fabricante

SKF?

SKU

1029123

Categoria

Angular Contact

Condição

Novo

20 Angular Ball bearing bearings Contact mm SKF

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

Manufacturer: SKF
Type: Super-precision single row angular contact ball bearing
Model: 7204 CDGA/P4A

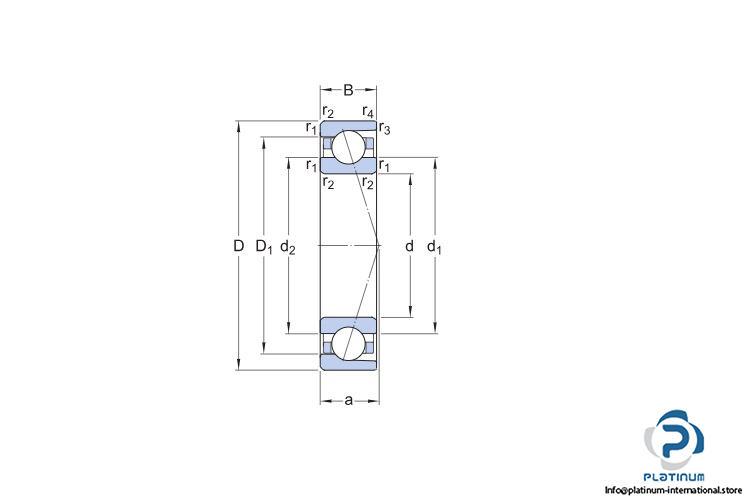

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 14 mm
Contact angle α: 15 °
Basic load ratings:
Dynamic C: 11.9 kN
Static C₀: 5.85 kN
Fatigue load limit P_u: 0.245 kN
Design: High-capacity D
Tolerance class: P4A
Universal matching bearing: back-to-back or face to face
Ring type: One-piece inner and outer rings
