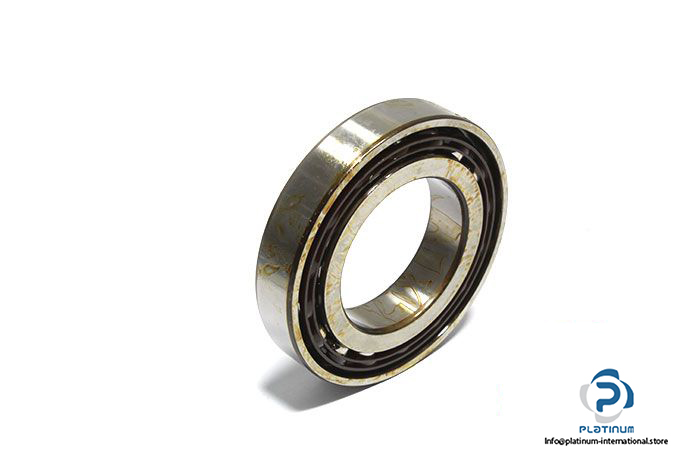

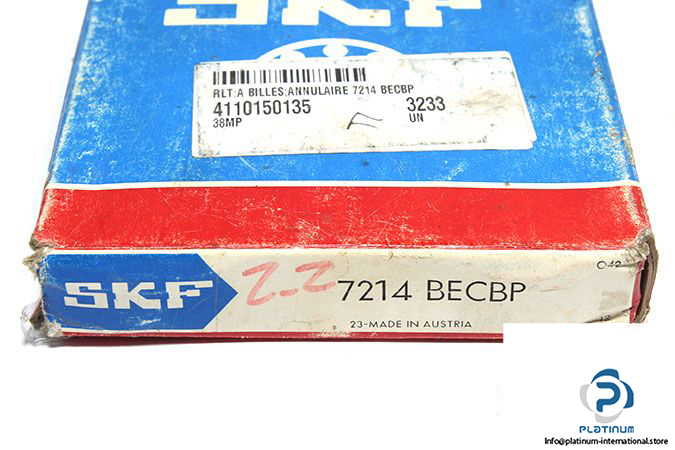

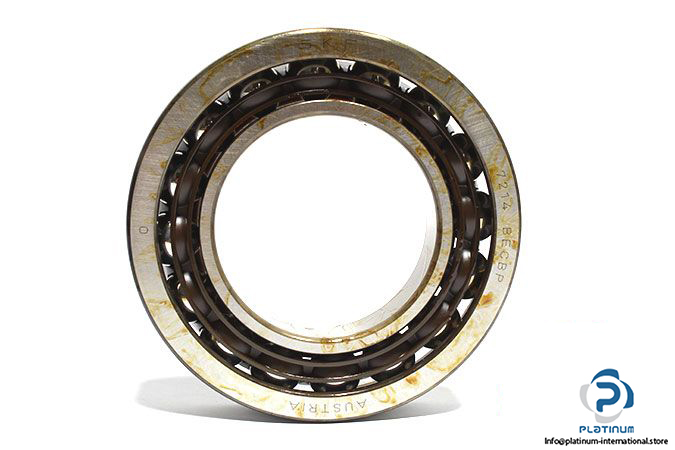

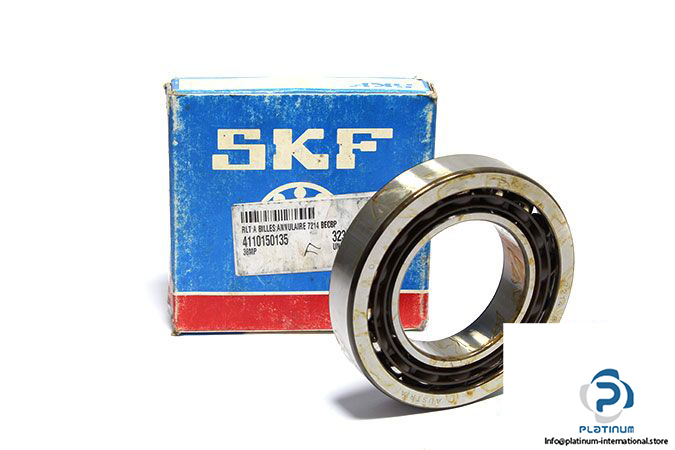

SKF 7214 Becbp Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular contact Ball Bearing

Model: 7214 BECBP

Part No: 7214

Bore Diameter: 70 mm

Outer diameter: 125 mm

Width: 24 mm

Chamfer rmin: 1.5 mm

Contact Angle: 40°

Basic load ratings:

Dynamic Cr: 72 kN

Static C0r: 60 kN

Fatigue load rating:  2.55 kN

Limiting speed: 6 300 r/min

Cage: Glass fiber reinforced PA66 cage, ball centered

External design: Bearing for universal matching. Two bearings arranged back-to-back or face-to-face have Normal axial internal clearance.

Weight: 1.1 kg
