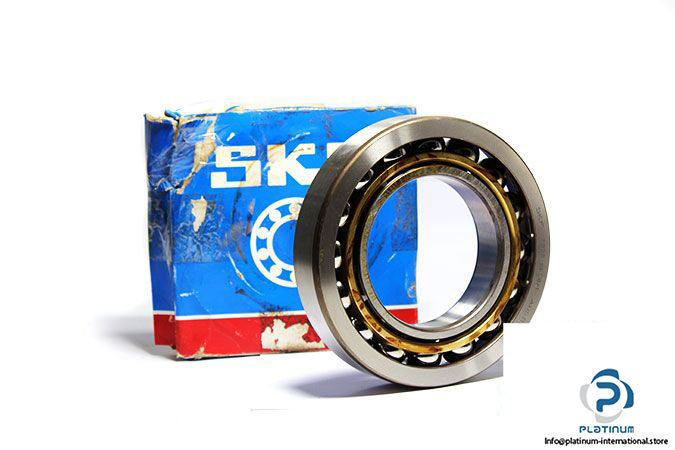

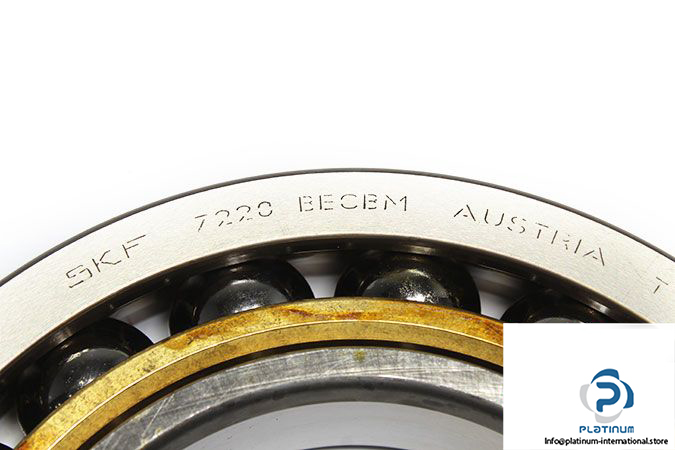

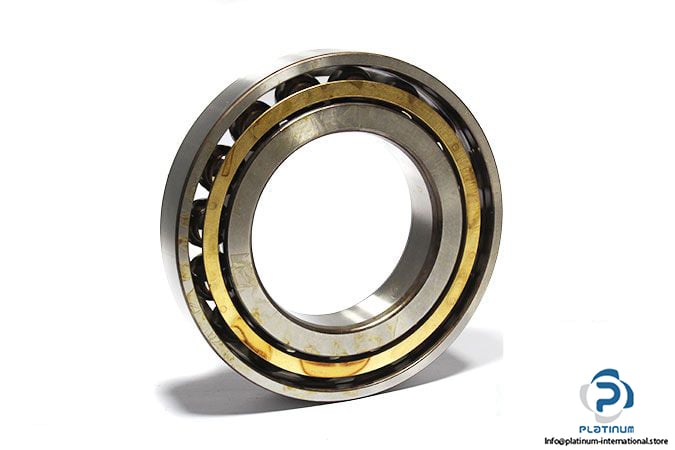

SKF 7220 Becbm Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular contact Ball Bearing

Part No: ‎7220 BECBM

Bore Diameter: 100 mm

Outer diameter: 180 mm

Width: 34 mm

Chamfer r_min: 2.1 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 143 kN

Static C_0r: 134 kN

Fatigue load rating: 4.75 kN

Limiting speed: 5600 rpm

Reference Speed: 4300 rpm

External design: Bearing for universal matching. Two bearings arranged back-to-back or face-to-face have Normal axial internal clearance.

Cage design: Machined brass cage, ball centred

Weight: 3.6 kg
