Bearings Housing Units Plummer Block Housing Units

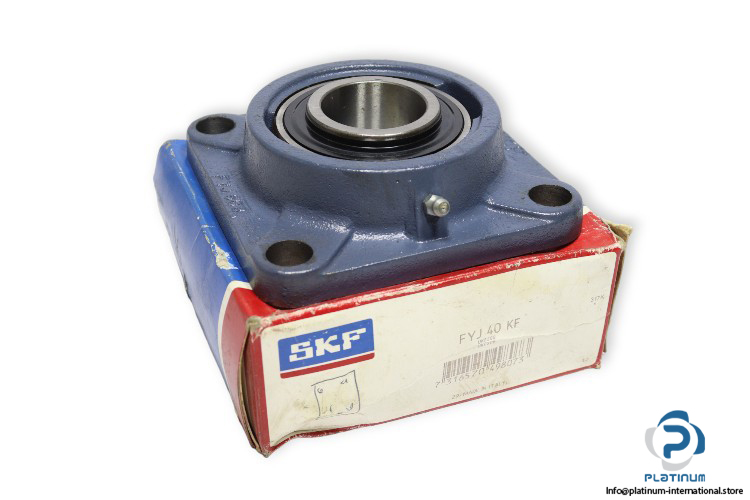

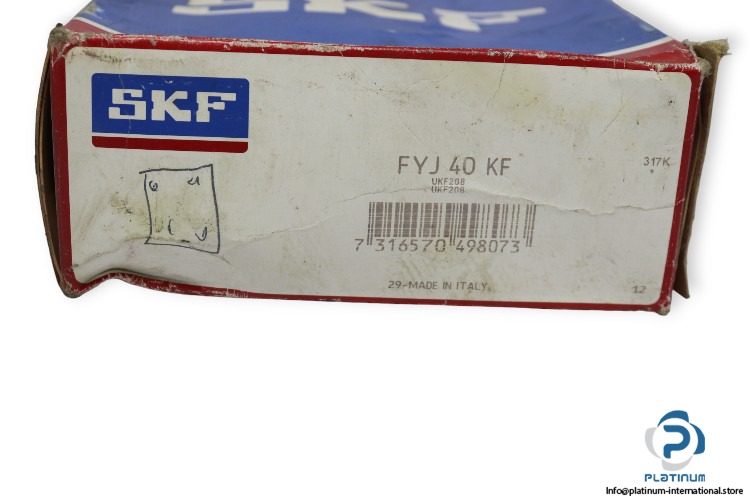

SKF FYJ 40 KF Square Flanged Ball Bearing Unit

Name: SKF FYJ 40 KF SQUARE FLANGED BALL BEARING UNIT
SKU: 1030870
Availability: LimitedAvailability

skf-FYJ-40-KF-square-flanged-ball-bearing-unit-(new)-(carton)

skf-FYJ-40-KF-square-flanged-ball-bearing-unit-(new)-(carton)-1

skf-FYJ-40-KF-square-flanged-ball-bearing-unit-(new)-(carton)-2

skf-FYJ-40-KF-square-flanged-ball-bearing-unit-(new)-(carton)-3

skf-FYJ-40-KF-square-flanged-ball-bearing-unit-(new)-(carton)-4

New

In stock3 unitsReady to ship

Manufacturer:

SKF

Type:

Square flanged ball bearing unit

Model:

FYJ 40KF

Housing:

FYJ 508

Bearing:

YSA 208-2FK

Manufacturer

SKF?

SKU

1030870

Category

Plummer Block Housing Units

Condition

New

Ball bearing bearings flanged Housing JIS SKF Square Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: SKF
Type: Square flanged ball bearing unit
Model: FYJ 40KF

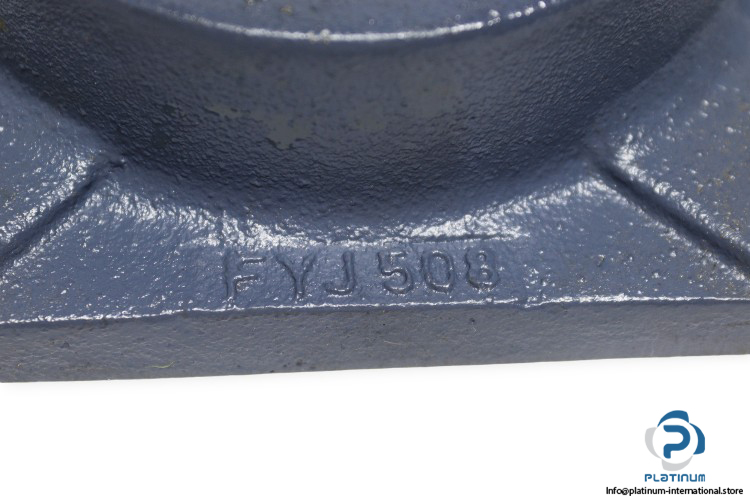

Housing: FYJ 508

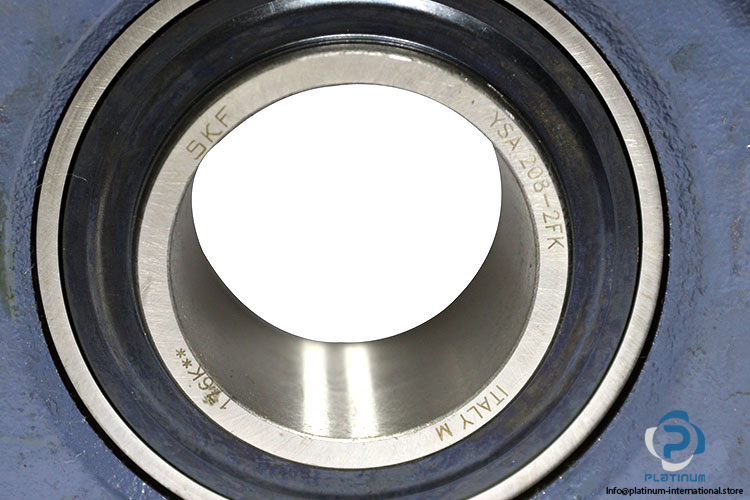

Bearing: YSA 208-2FK

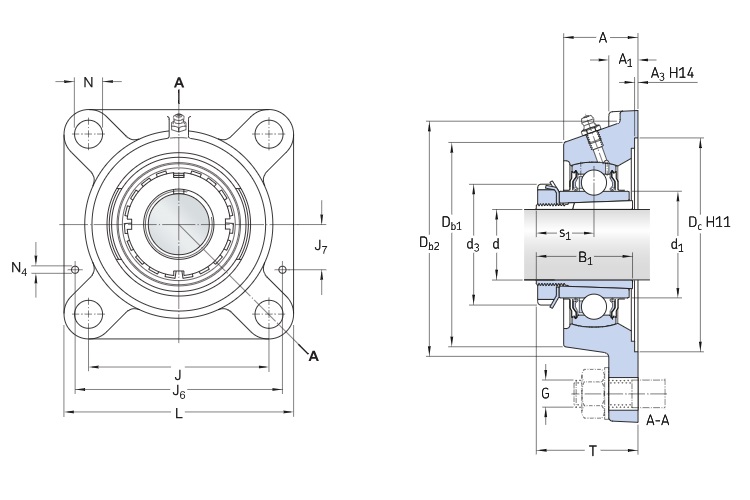

Dimensions
Shaft diameter d: 35 mm
Width of housing A: 36 mm
Width of inner ring Bi: 33.9 mm
Overall bearing width B1: 33.9 mm
Distance of attachment bolts J: 102 mm
Overall length: 130 mm
Diameter of attachment bolt hole N: 16 mm
Overall width T: 48.25 mm
Basic dynamic load rating C: 30.7 kN
Basic static load rating C₀: 19 kN
Fatigue load limit P_u: 0.8 kN
Limiting Speed: 4800 r/min
Sealing: Contact Seal and flinger on both sides
Material, housing: Cast iron
mounting: Four-Bolt Base
