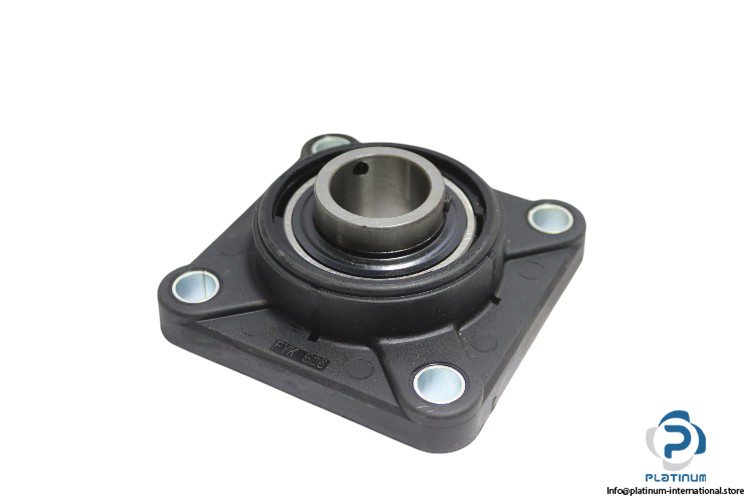

SKF FYK 30 TF Square Flanged Housing Unit
New
In stock1 unitReady to ship
Square Flanged Housing Unit
The SKF FYK 30 TF with YAR 206-2F insert bearing is a compact, high-speed unit for industrial mounting. With a 30 mm shaft diameter and 6300 rpm speed limit, it ensures stable and durable performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF FYK 30 TF Square Flanged Housing Unit with YAR 206-2F Insert Bearing
The SKF FYK 30 TF is a robust square flanged housing unit designed for reliable performance in industrial applications. It comes equipped with the SKF YAR 206-2F insert bearing, ensuring high load capacity, precision fit, and extended service life. This unit is ideal for applications requiring easy installation and high-speed capability.
Manufacturer: SKF
Type: Square Flanged Housing Unit
Model: FYK 30 TF

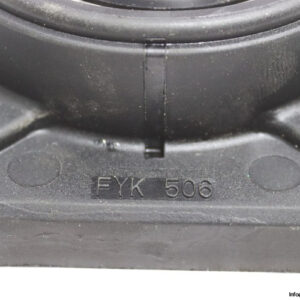

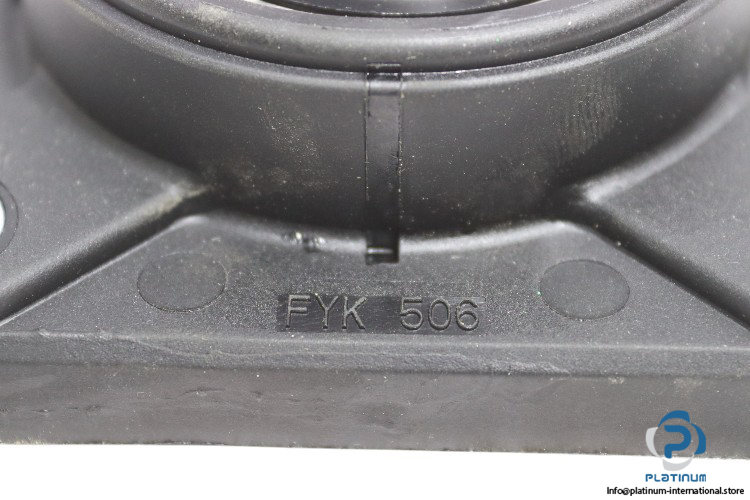

Housing Model: FYK 506

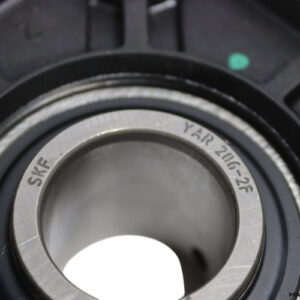

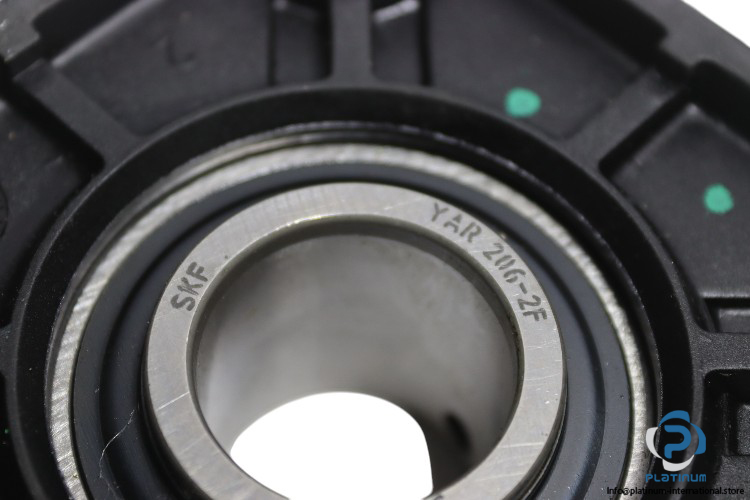

Bearing Model: YAR 206-2F
| Attachment Bolt Diameter | 10 mm |
| Spherical Seating Diameter | 62 mm |
| Shaft Diameter | 30 mm |
| Housing Overall Width / A | 33 mm |
| Overall Length | 108 mm |
| Centre Distance Between Bolt Holes | 82.5 mm |
| Bearing Width (Total) | 38.1 mm |
| Attachment Bolt Hole Diameter | 12.3 mm |
| Basic Dynamic Load Rating | 19.5 kN |
| Basic Static Load Rating | 11.2 kN |
| Fatigue Load Limit | 0.475 kN |
| Limiting Speed | 6300 r/min |
| Mounting Type | Square Flanged |
| Housing Color | Black |
| Material (Bearing) | Bearing Steel |
| Insert Bearing | SKF YAR 206-2F |
| Bore Diameter | 30 mm |
| Outside Diameter | 62 mm |
| Width (Total) | 38.1 mm |
