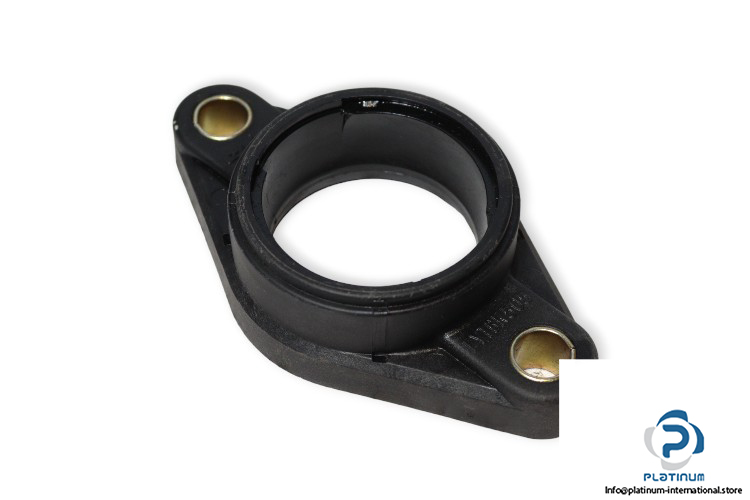

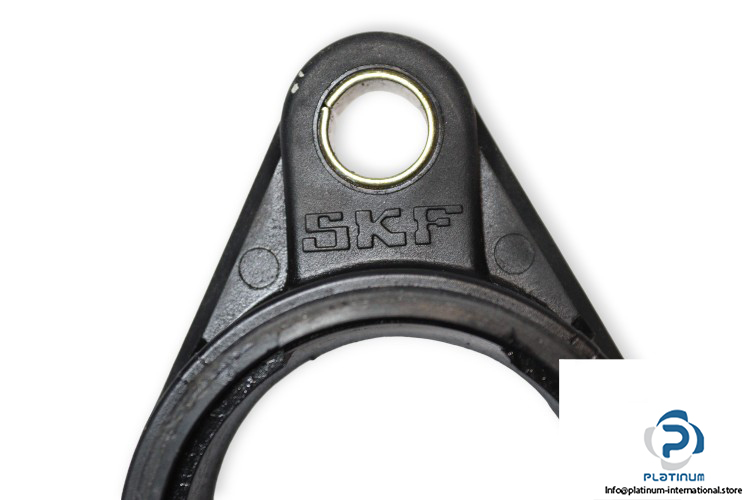

SKF Fytbk 505 Plastic Oval Flanged Housing Unit

Manufacturer: SKF
Type: Plastic Oval Flanged Housing Unit

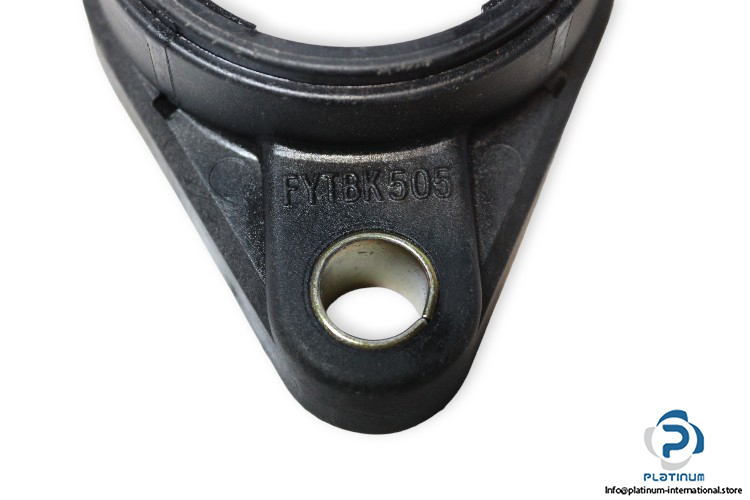

Model: FYTBK505

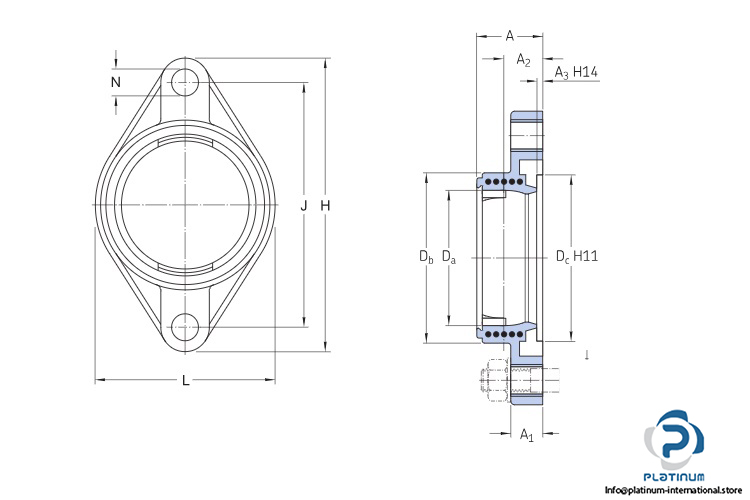

Dimensions
Diameter of spherical seat Da: 52 mm
Top external diameter Db: 65 mm
Centring diameter Dc: 63.5 mm
Overall width A: 30 mm
Overall height H: 124 mm
Distance between attachment bolts J: 99 mm
Overall length L: 70 mm
Width of attachment bolt hole N: 12.3 mm
Mounting: Oval flanged
Housing Color: Black
Material, housing: Plastic
Material, bearing: Stainless Steel
