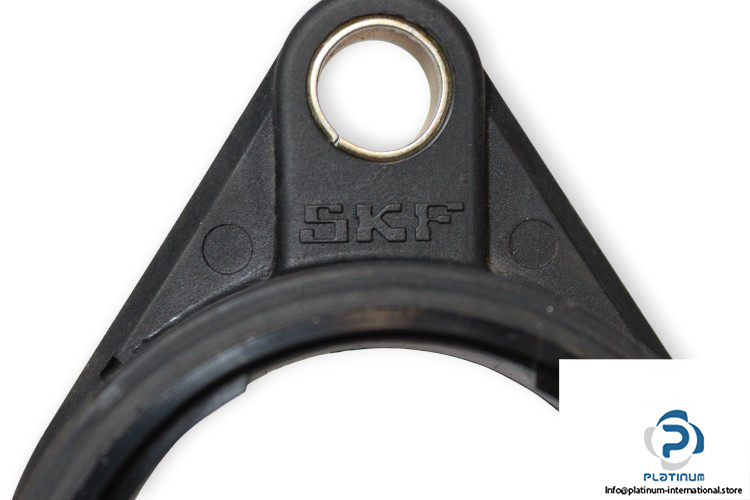

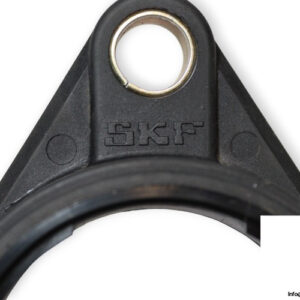

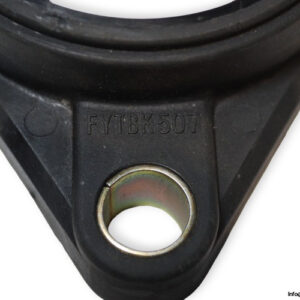

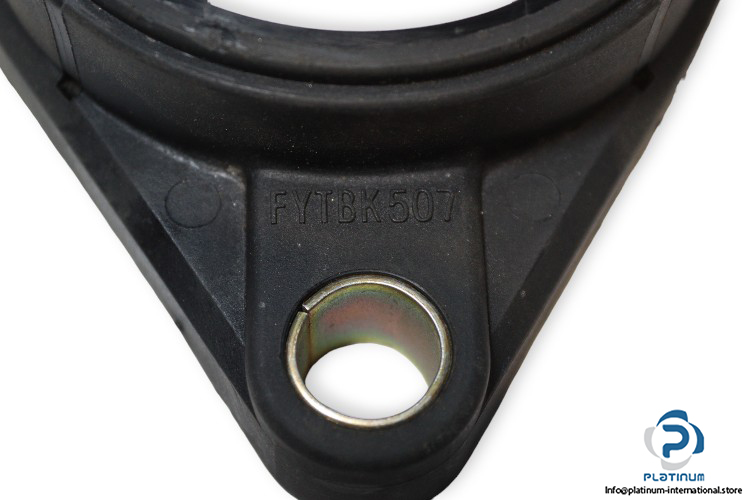

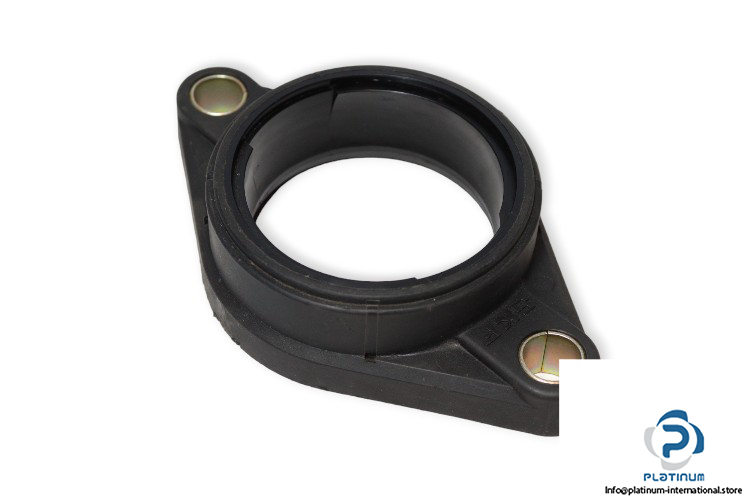

SKF Fytbk 507 Plastic Oval Flanged Housing Unit

Manufacturer: SKF
Type: Plastic Oval Flanged Housing Unit
Model: FYTBK507

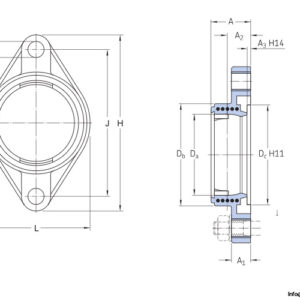

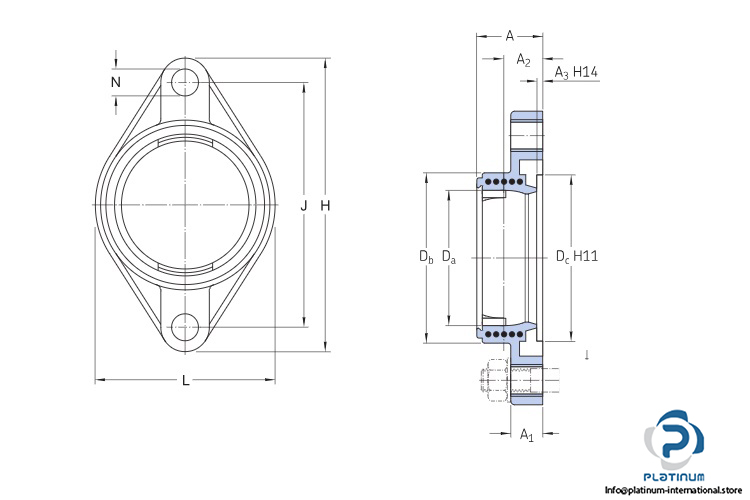

Dimensions
Diameter of spherical seat Da: 72 mm
Top external diameter Db: 90 mm
Centring diameter Dc: 88.9 mm
Overall width A: 35 mm
Overall height H: 156 mm
Distance between attachment bolts J: 130 mm
Overall length L: 96 mm
Width of attachment bolt hole N: 14.8 mm
Mounting: Oval flanged
Housing Color: Black
Material, housing: Plastic
Material, bearing: Stainless Steel
