SKF NN3024 -KTN9/SPW33 Cylindrical Roller Bearing
Used
In stock1 unitReady to ship
Cylindrical Roller Bearing
High precision SKF double row cylindrical roller bearing with tapered bore and reinforced cage, designed for heavy loads and high-speed industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

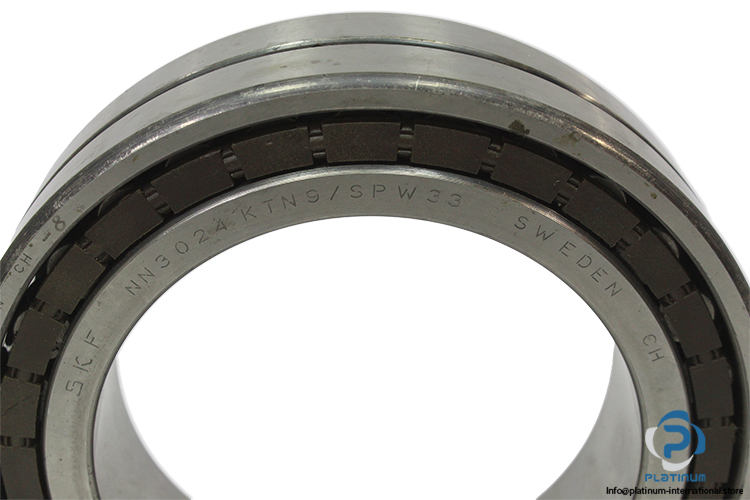

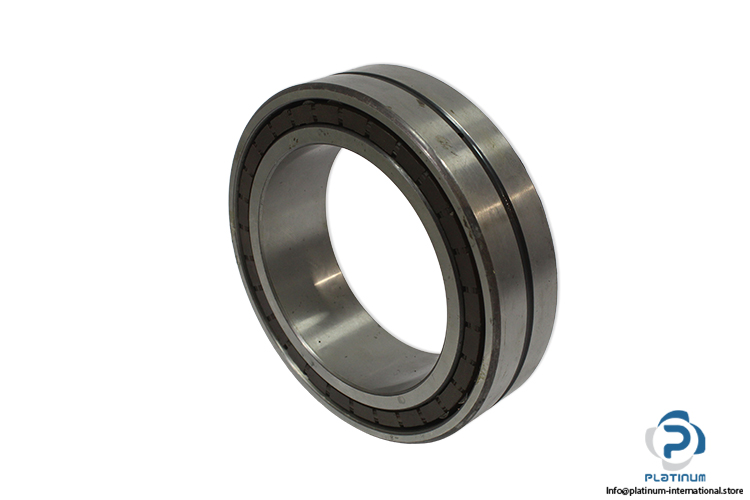

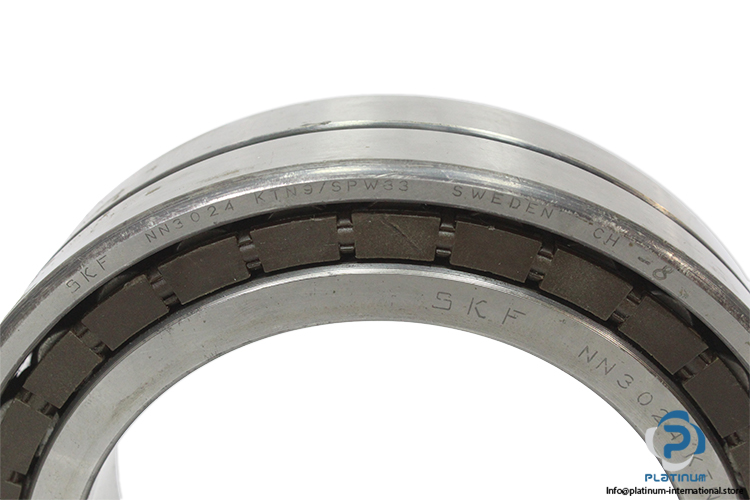

SKF NN3024 KTN9/SPW33 Cylindrical Roller Bearing
The SKF NN3024 KTN9/SPW33 is a high-performance double row cylindrical roller bearing designed for precision applications requiring high load capacity, rigidity, and reliable rotational accuracy. Engineered with advanced materials and optimized internal design, this bearing ensures efficient operation in demanding industrial environments.
Manufacturer: SKF
Type: Double Row Cylindrical Roller Bearing
Model: NN3024 KTN9/SPW33
Recommended For High Precision And Heavy Load Industrial Applications To Ensure Long Service Life And Stable Performance.
| Bore Diameter (d) | 120 mm |
| Outer Diameter (D) | 180 mm |
| Width (B) | 46 mm |
| Basic Dynamic Load Rating | 229 kN |
| Basic Static Load Rating | 390 kN |
| Attainable Speed For Grease Lubrication | 4800 r/min |
| Attainable Speed For Oil-Air Lubrication | 5300 r/min |
| Bore Type | K, Tapered 1:12 |
| Tolerance Class | Class SP |
| Cage Material | TN9, Glass Fibre Reinforced Injection Molded Cage Of Polyamide 6,6 |
| Locating Feature, Bearing Outer Ring | W33, Annular Groove And Three Lubrication Holes In The Outer Ring |
| Design | NN |
