SKF QJ1040 N2.MA Four-Point Contact Ball Bearing

Manufacturer: SKF
Type: Four-point contact ball bearing with locating slots
Model: QJ 1040 N2 MA

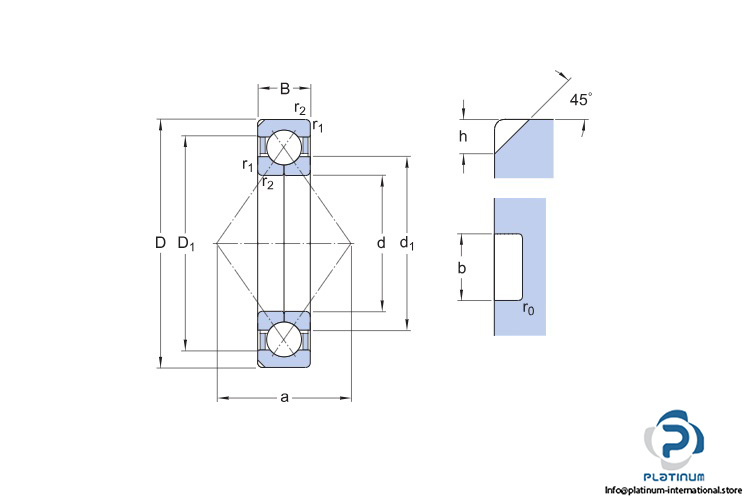

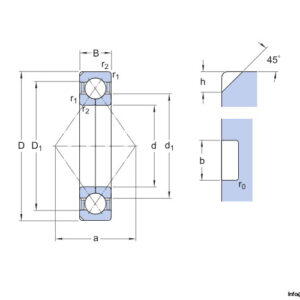

Dimensions
Bore Diameter d: 200 mm
Outer diameter D: 310 mm
Width B: 51 mm
Basic load ratings:
Dynamic C: 390 kN
Static C0: 620 kN
Limiting speed: 3200 r/min
Contact angle: 35 °
Cage: Machined metal, outer ring centred

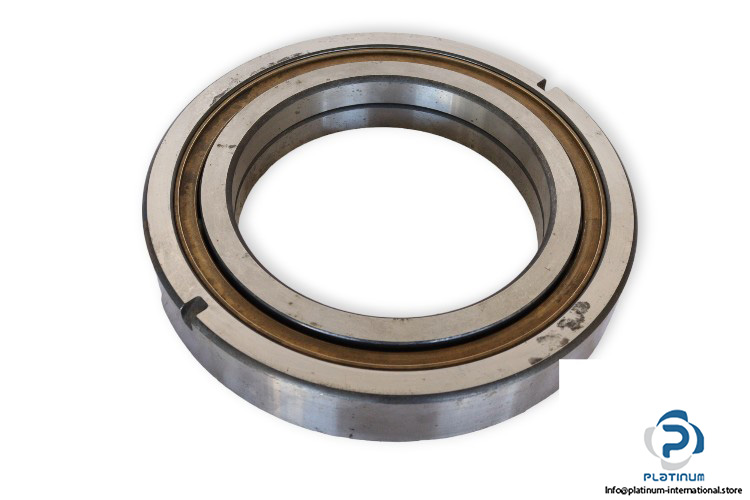

Suffix: N2, Two locating slots (notches) in one outer ring ,housing washer side face, 180° apart
