Used
In stock1 unitReady to ship
Rod End
SKF SCF 35 TE-2RS weld-on ball joint end with 35 mm bore, sealed 2RS design, steel/PTFE sliding contact, and maintenance-free operation for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

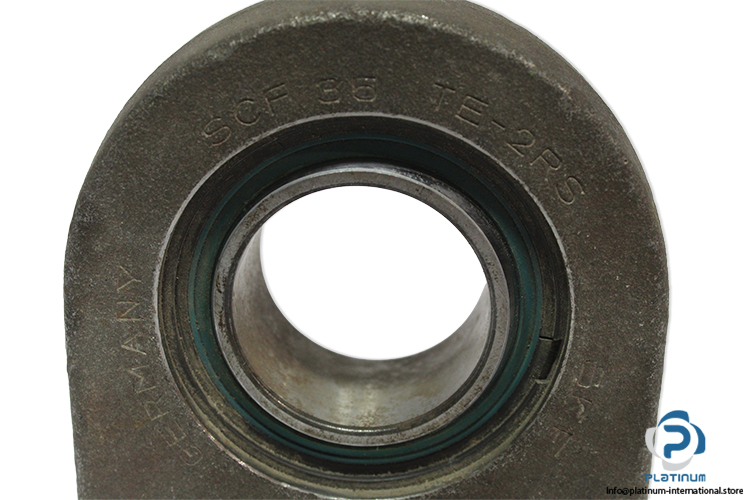

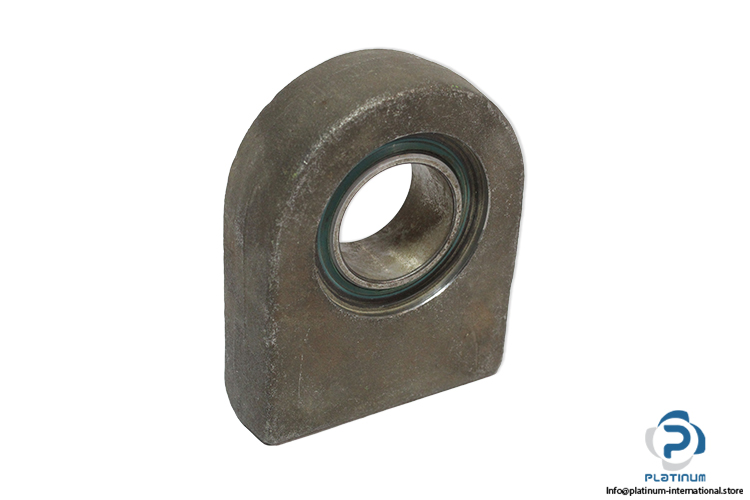

SKF SCF 35 TE-2RS Weld-On Ball Joint End
The SKF SCF 35 TE-2RS is a weld-on ball joint end designed for heavy-duty industrial applications requiring high load capacity, reliable articulation, and long service life. The integrated sealing system and steel/PTFE sliding contact ensure smooth operation with minimal maintenance.
Manufacturer: SKF
Type: Weld-on Ball Joint End (Rod End)
Model: SCF 35 TE-2RS
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (Bearing Inner Ring) | 35 mm |
| Outside Diameter (Housing Eye) | 85 mm |
| Width (Bearing Inner Ring) | 25 mm |
| Width (Housing Eye) | 31 mm |
| Centre Height (From End Of Shank) | 61 mm |
| Total Housing Length | 104 mm |
| Seal | 2RS, Sealed On Both Sides |
| Sliding Contact Surface | Steel / PTFE |
| Maintenance | Maintenance-Free Or Very Low Maintenance |
| Additional Recommendation | For complete mechanical assemblies, explore compatible rod ends and bearing solutions available in our Bearings category. |
