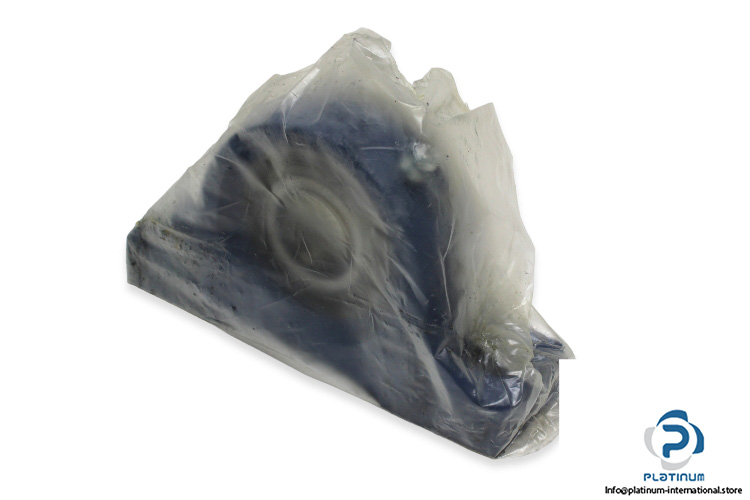

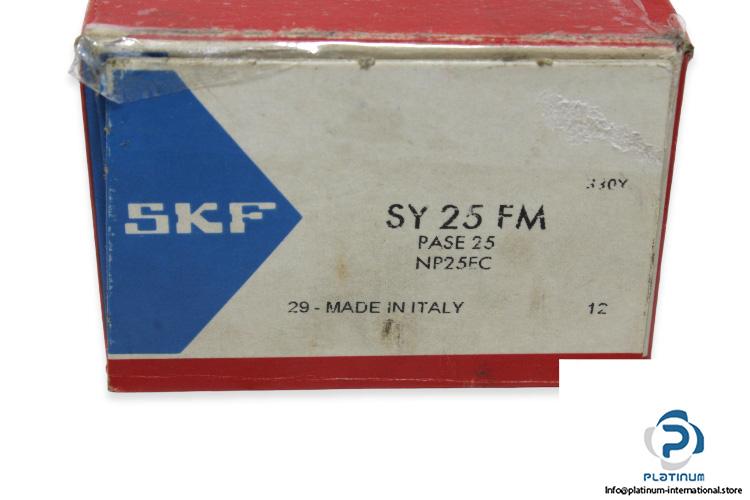

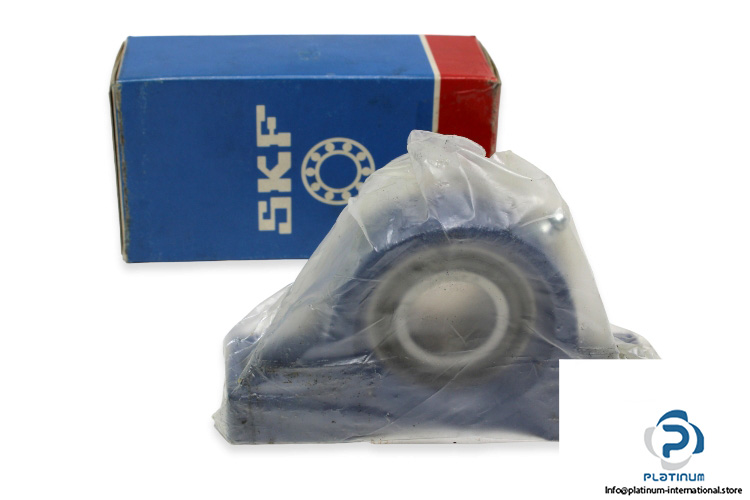

SKF SY 25 FM Pillow Block Ball Bearing Unit

Manufacturer: SKF

Type: Two-Bolt Pillow block ball bearing unit with narrow inner ring and eccentric locking collar

Model: SY25FM

Housing: SY 505 M

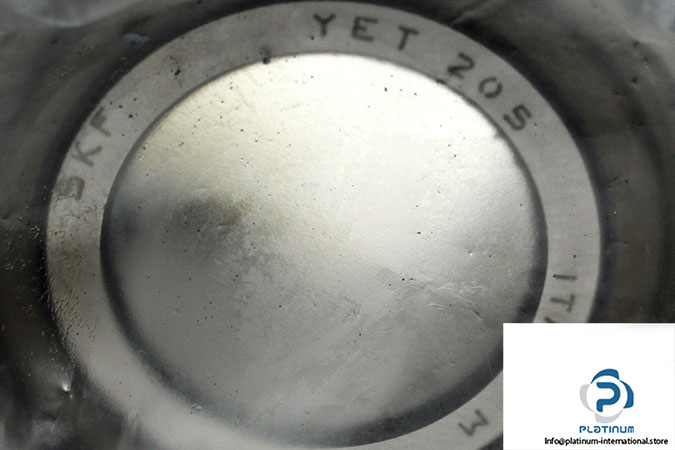

Bearing: YET 205

Material, housing: Cast iron

Bore type: Cylindrical

mounting: Two-Bolt Base

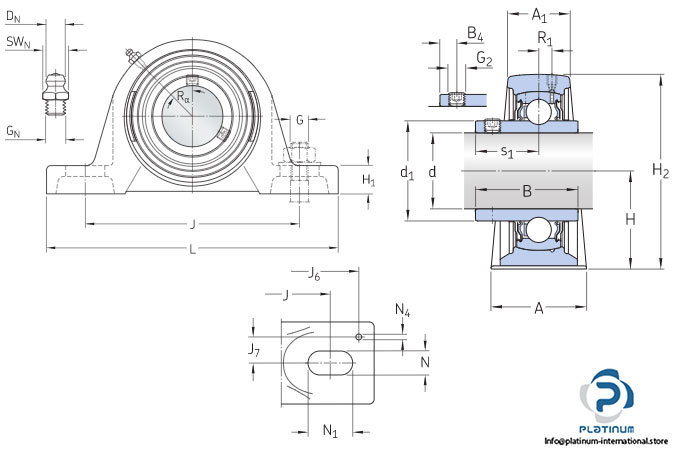

Dimensions

Bore diameter d: 25 mm

Housing length L: 130 mm

Base width A: 36 mm

Housing height H₂: 70 mm

Distance of attachment bolts J: 102 mm

Basic dynamic load rating C: 14 kN

Basic static load rating C₀: 7.8 kN

Fatigue load limit P_u: 0.335 kN

Limiting Speed: 7000 r/min

Sealing: Seal on both sides
