SKF SY 506 M Pillow Block Ball Bearing Unit
SKF SY506M Pillow Block Ball Bearing Unit, 62 mm seating diameter, cast iron housing, two-bolt base, designed for durability and reliability in industrial applications.

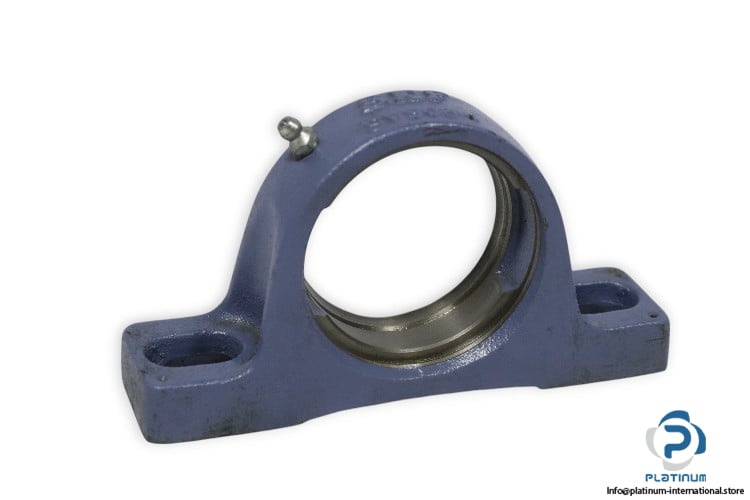

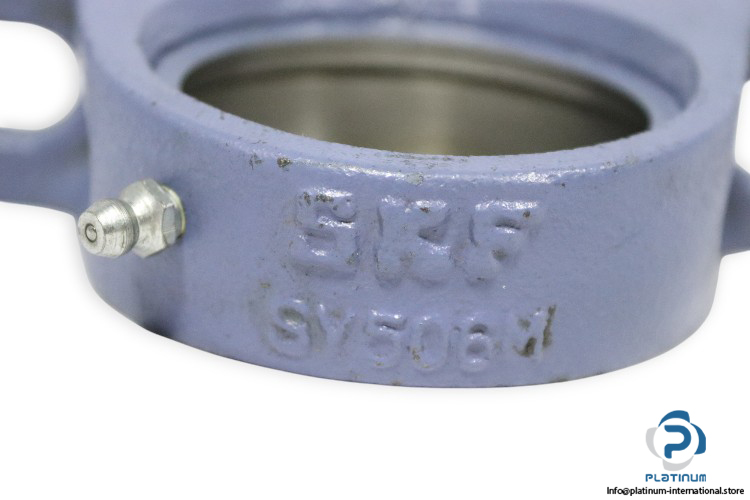

SKF SY506M Pillow Block Ball Bearing Unit
The SKF SY506M is a high-quality pillow block ball bearing unit, designed to provide reliable and durable performance in various industrial applications. Featuring a cast iron housing and a robust two-bolt base mounting system, this unit ensures stability and ease of installation. With precise dimensions and a spherical seating diameter of 62 mm, it is ideal for applications requiring dependable load support.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Pillow Block Ball Bearing Unit
- Model: SY506M
- Dimensions:
- Spherical seating diameter: 62 mm
- Centre height (pillow block): 42.9 mm
- Housing overall width: 40 mm
- Overall height: 82 mm
- Overall length: 152 mm
- Distance of attachment bolts J: 117.5 mm
- Width of attachment bolt hole: 14 mm
- Foot height: 17 mm
- Number of bolt holes for fasteners: 2
- Material, housing: Cast iron
- Mounting: Two-Bolt Base
This pillow block unit is designed for heavy-duty applications, providing exceptional durability and ease of maintenance. Trust SKF SY506M for reliable bearing support in demanding environments.
