SKF SY 60 TF Pillow Block Ball Bearing Unit

Manufacturer: SKF

Type: Two-Bolt Pillow block ball bearing unit with extended inner ring and set screw locking

Model: SY60TF

Housing: SY 512 M

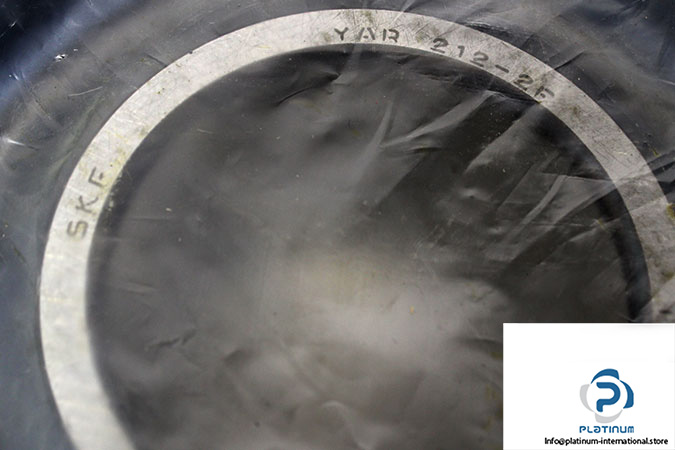

Bearing: YAR 212-2F

Material, housing: Cast iron

Bore type: Cylindrical

Mounting: Two-Bolt Base

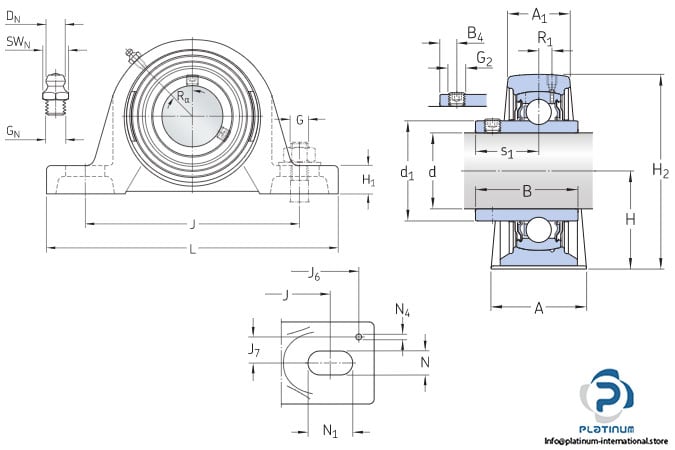

Dimensions

Shaft diameter d: 60 mm

Housing length L: 240 mm

Base width A: 60 mm

Housing height H₂: 137.5 mm

Distance of attachment bolts J: 190.5 mm

Basic dynamic load rating C: 52.7 kN

Basic static load rating C₀: 36 kN

Fatigue load limit P_u: 1.53 kN

Limiting Speed: 3400 r/min

Sealing: Seal and flinger on both sides
