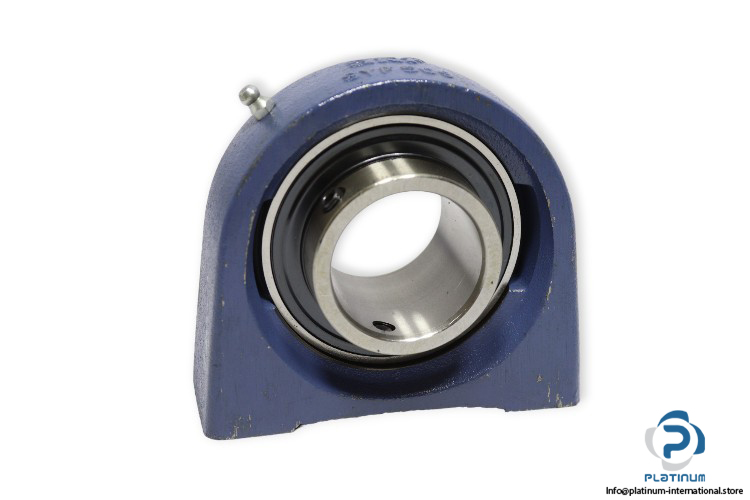

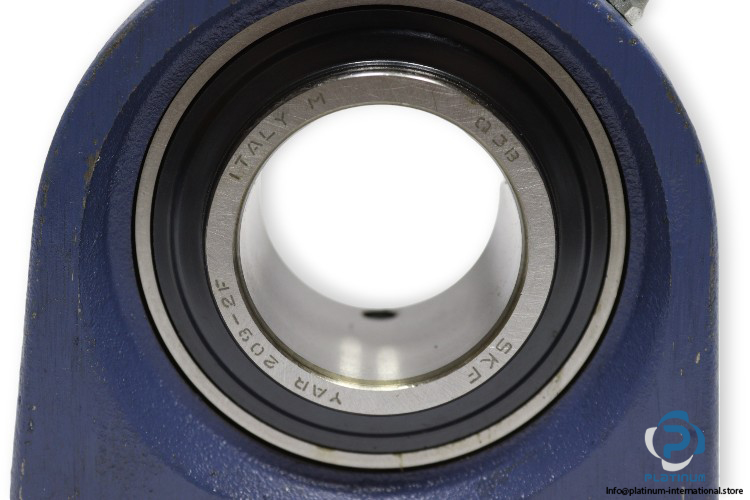

SKF SYF 45 TF Short Base Pillow Block Ball Bearing Unit

Manufacturer: SKF
Type: Short base pillow block ball bearing unit
Model: SYF 45 TF

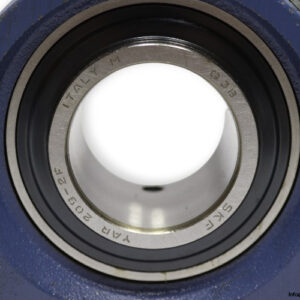

Bearing No.: YAR 209-2F

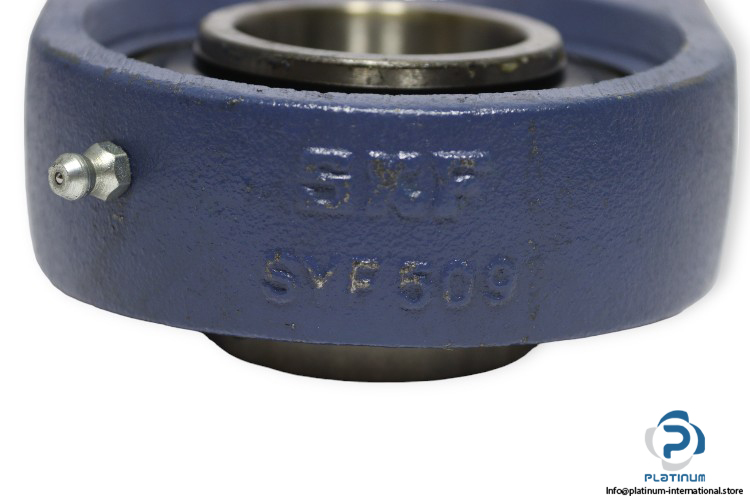

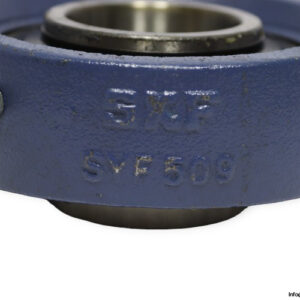

Housing No.: SYF 509

Dimensions
Bore Diameter d: 45 mm
Base width A: 48 mm
Height of spherical seat center H: 54 mm
Distance of attachment bolts J: 95.3 mm
Overall length L: 120 mm
Overall height H2: 107.5 mm
Basic dynamic load rating: 33.2 kN
Basic static load rating: 21.6 kN
Fatigue load limit: 0.915 kN
Limiting Speed: 4300 rpm
Material, housing: Cast iron
Sealing, bearing: Contact Seal and flinger on both sides
Retaining feature, inner ring: Set screws
