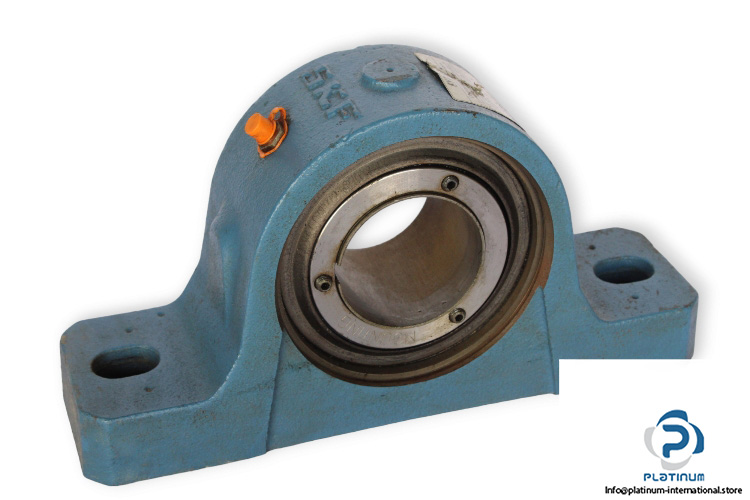

SKF SYT 55 L Pillow Block Roller Bearing Unit
Used
Manufacturer: SKF
Type: Pillow Block Ball Bearing Unit For Metric Shafts
Model: SYT55 L
Bearing type: Spherical Roller bearing
Mounting: Two-Bolt Base
Bearing position: Non-locating unit
Locking device: SKF ConCentra
Included Bearing: 22211

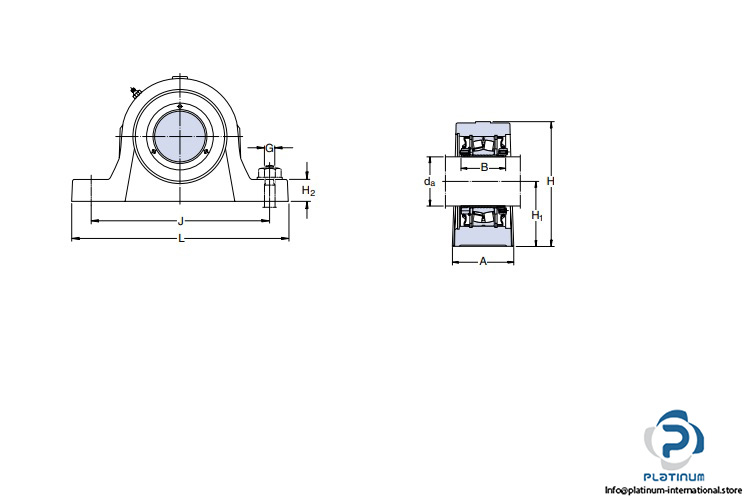

Dimensions
Bore Diameter: 55 mm
Housing Overall width: 70 mm
Inner ring width B: 59.5 mm
Housing height H: 135 mm
Centre height (pillow block) H1: 70 mm
Housing foot height (H2): 30 mm
Distance of attachment bolts J: 210 mm
Housing length L: 255 mm
Width foot slot width N: 24 mm
Basic dynamic load rating: 125 kN
Basic static load rating: 137 kN
Fatigue load limit: 13.7 kN
Limiting Speed: 3250 rpm
Reference Speed: 6300 rpm
