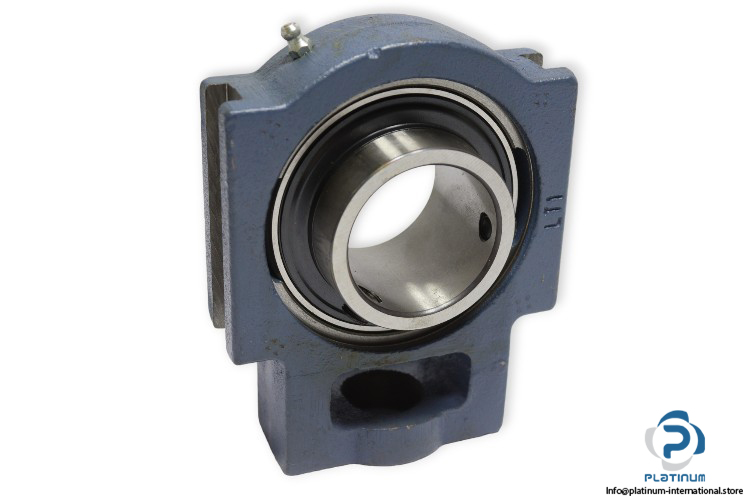

SKF TU 50 TF Take UP Ball Bearing Unit

Manufacturer: SKF
Type: Take-up cast iron unit with insert ball bearing
Model: TU 50 TF
Housing No.: TU510M

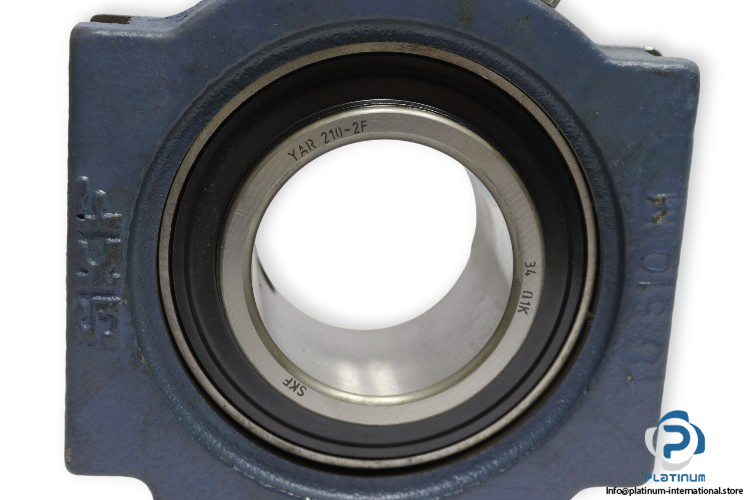

Bearing No.: YAR 210-2F

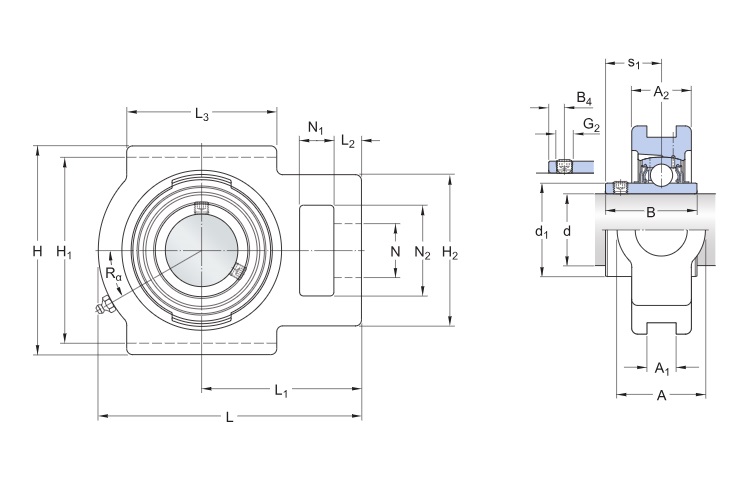

Bore diameter d: 50 mm
Overall width A: 49 mm
Width of piloting groove A1: 17.5 mm
Width of inner ring B: 51.6 mm
Overall height H: 117 mm
Height of attachment end H2: 83 mm
Overall length L: 149 mm
Diameter of attachment bolt hole N: 29 mm
Basic dynamic load rating C: 35.1 Kn
Basic static load rating C0: 23.2 kN
Fatigue load limit Pu: 0.98 kN
Limiting speed: 4000 r/min
Housing type: Take-up
locking Device: set screw
Material, housing: Cast iron
Sealing, bearing: Seal and flinger on both sides
