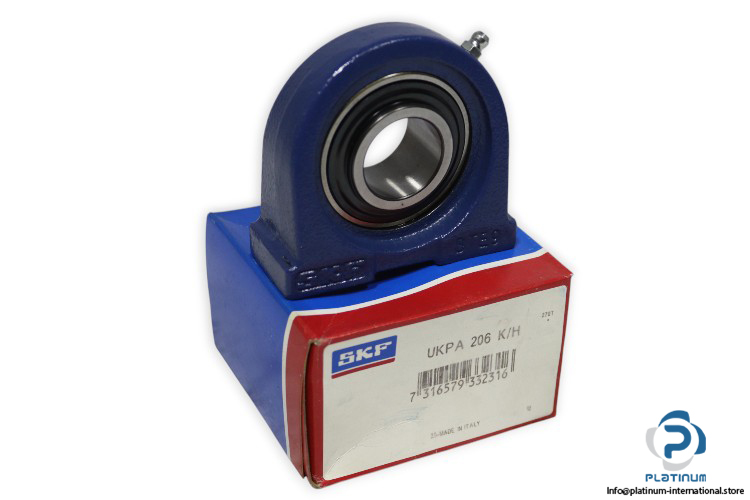

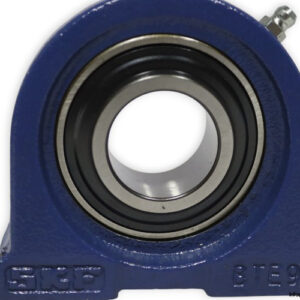

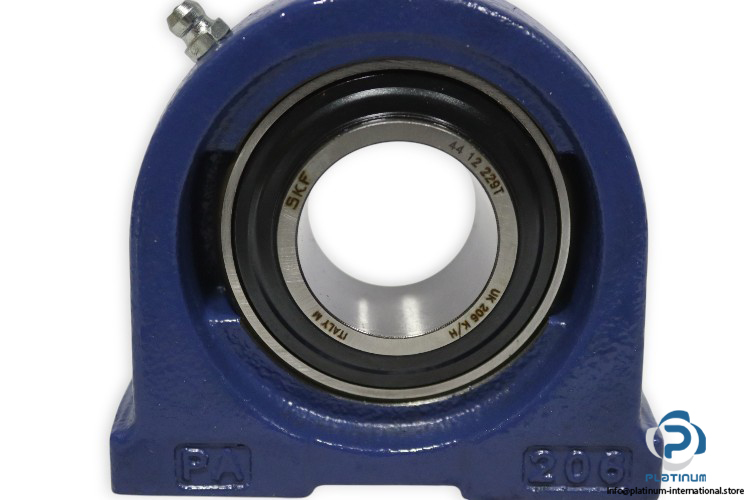

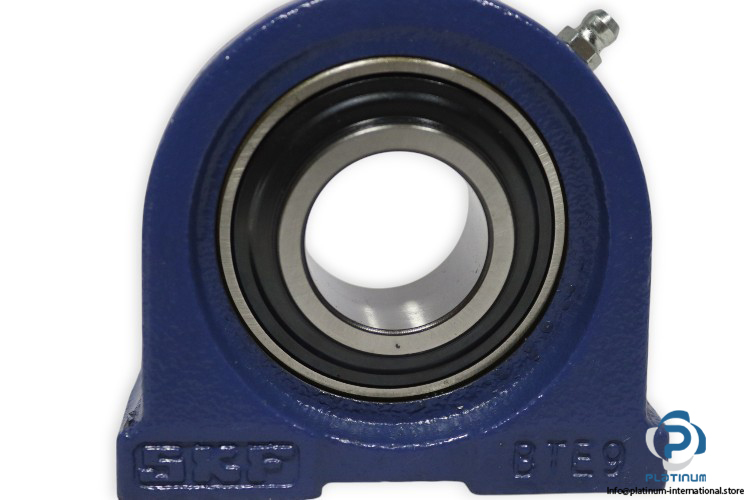

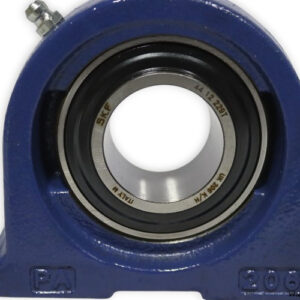

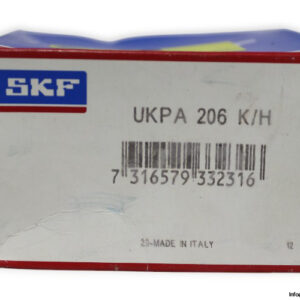

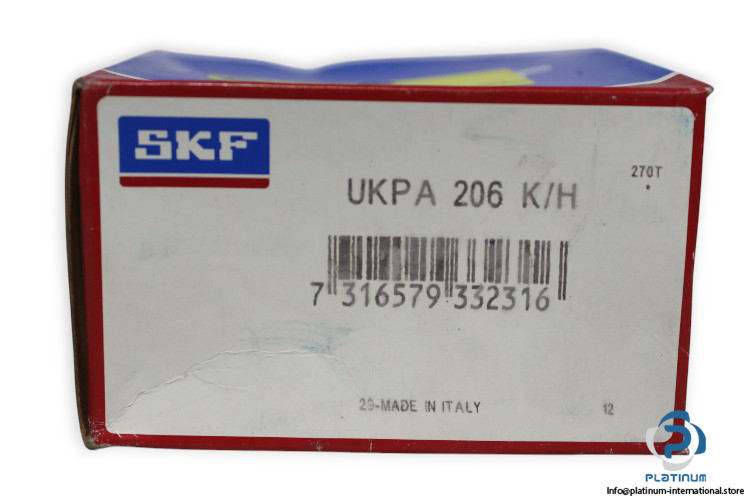

SKF Ukpa 206 K/H Pillow Block Ball Bearing Unit
New
In stock18 unitsReady to ship
SKF UKPA206 K/H Pillow Block Ball Bearing Unit with UK 206 K/H bearing and PA 206 housing. Features 25 mm bore, 19.5 kN dynamic load rating, and 5000 r/min speed.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF UKPA206 K/H Pillow Block Ball Bearing Unit
The SKF UKPA206 K/H Pillow Block Ball Bearing Unit is designed for reliable performance and durability in various industrial applications. Featuring a bore diameter of 25 mm, this unit includes the UK 206 K/H bearing and PA 206 housing, ensuring optimal operation under demanding conditions.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Pillow Block Ball Bearing Unit
- Model: UKPA206 K/H
- Bearing No.: UK 206 K/H
- Housing No.: PA 206
- Dimensions:
- Bore Diameter: 25 mm
- Overall Length: 93.5 mm
- Overall Height: 84 mm
- Bearing Width: 28 mm
- Housing Overall Width: 39 mm
- Distance Between Attachment Bolts: 66 mm
- Outside Diameter of Lock Nut: 45 mm
- Height of Spherical Seat Center: 42.8 mm
- Load Ratings:
- Basic Dynamic Load Rating: 19.5 kN
- Basic Static Load Rating: 11.2 kN
- Fatigue Load Limit: 0.475 kN
- Limiting Speed: 5000 r/min
- Mounting Type: Two-Bolt Base
- Material, Housing: Cast Iron
- Locking Device: Set Screw
- Retaining Feature, Inner Ring: H, Adapter Sleeve
- Sealing, Bearing: Seal and Flinger on Both Sides
The SKF UKPA206 K/H is engineered for high reliability and durability, making it suitable for a wide range of mechanical systems.
