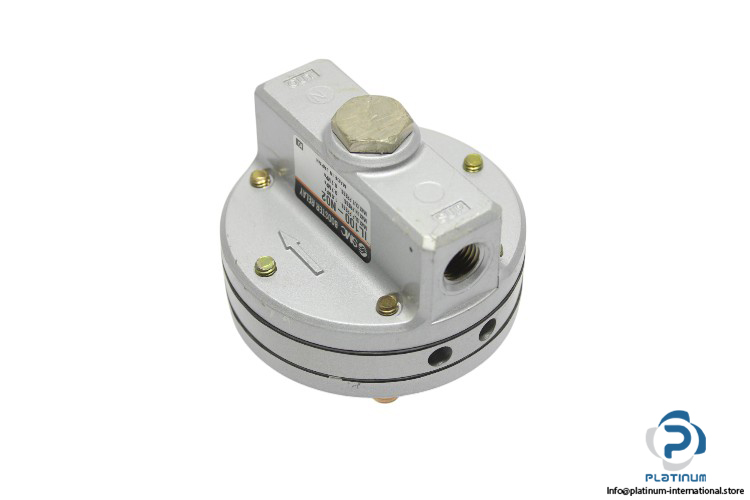

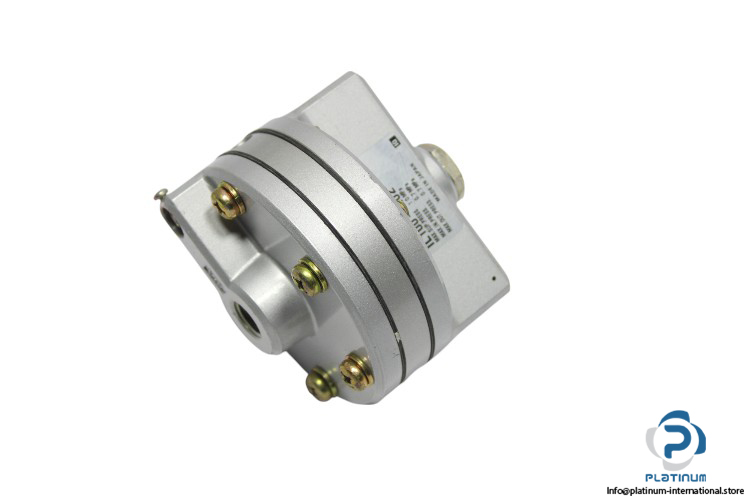

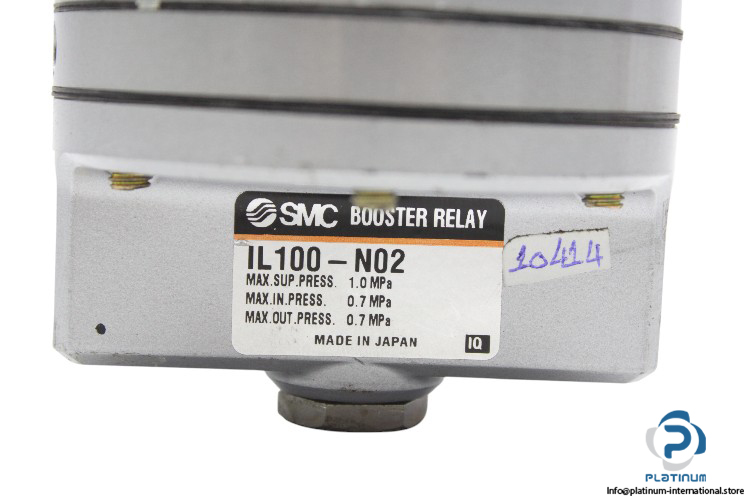

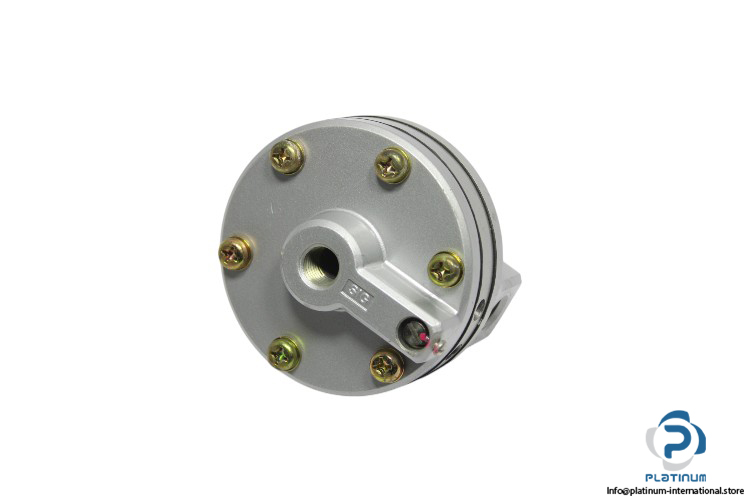

SMC IL100-N02 Booster Relay

SMC Booster Relay IL100-N02

The SMC Booster Relay IL100N02 is designed to boost pressure in pneumatic systems, offering reliable and efficient performance. With a maximum supply pressure of 1.0 MPa and input/output pressure max. of 0.7 MPa, it ensures effective pressure regulation. The relay features a flow rate of up to 6000 l/min and a pneumatic connection of NPT 1/4, making it ideal for high-performance industrial applications. Its operating temperature range of -5 to 60 °C ensures functionality in various environments, while the compact dimensions of 93 mm in length and 86 mm in diameter make it easy to integrate into tight spaces.

Manufacturer: SMC

Type: Booster Relay

Model: IL100-N02

Technical Specifications

• Fluid: Air
• Supply Pressure Max.: 1.0 MPa
• Input/Output Pressure Max.: 0.7 MPa
• Flow Rate Max.: 6000 l/min
• Pneumatic Connection: NPT 1/4
• Fluid / Ambient Temperature: -5 / 60 °C
• Length, Diameter: 93 mm, 86 mm
