SMC IL100-N02 Booster Relay
Relé Booster SMC Booster Relay IL100-N02 com pressão máxima de fornecimento de 1,0 MPa e taxa de fluxo de 6000 l/min. Possui conexão NPT 1/4 e opera em temperaturas de -5 a 60 °C, ideal para sistemas pneumáticos.

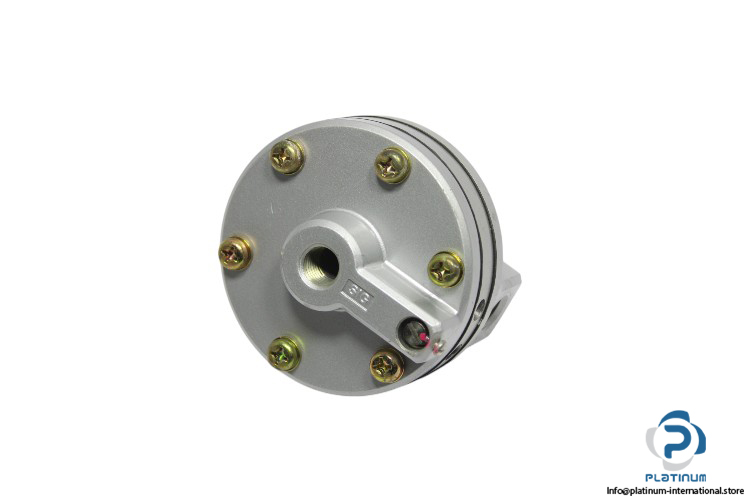

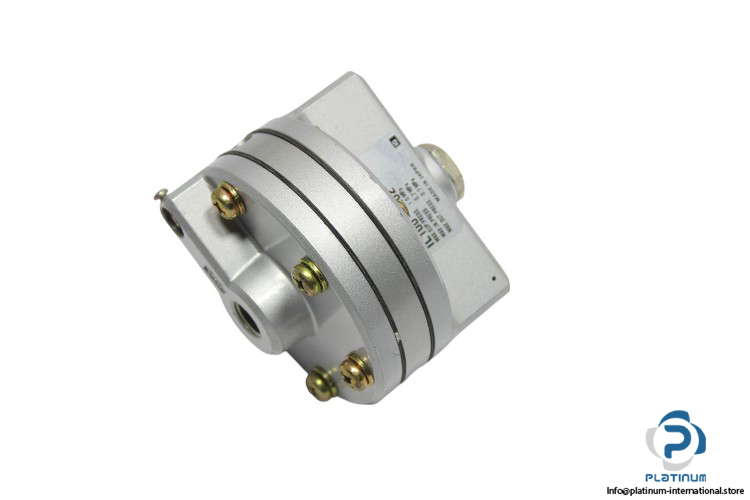

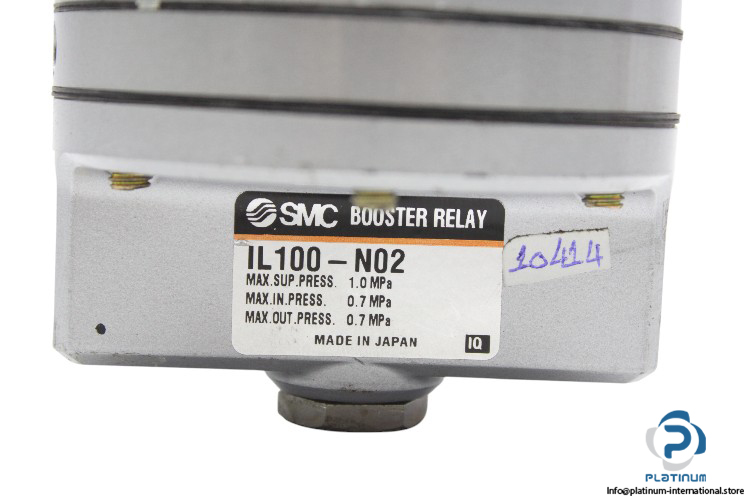

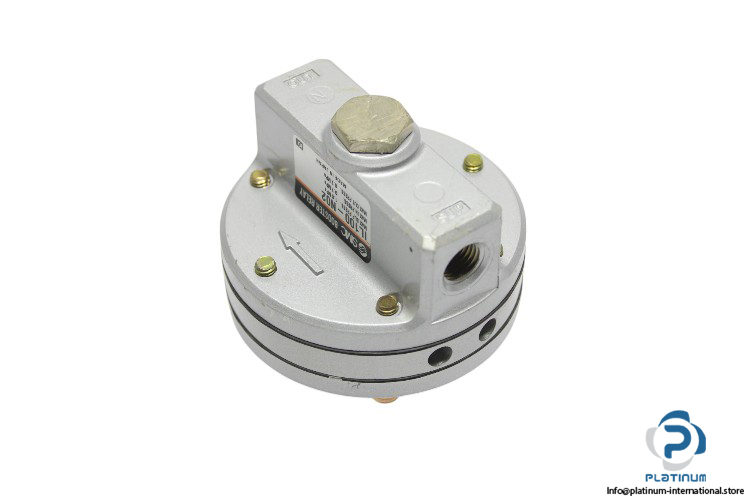

SMC Booster Relay IL100-N02
The SMC Booster Relay IL100N02 is designed to boost pressure in pneumatic systems, offering reliable and efficient performance. With a maximum supply pressure of 1.0 MPa and input/output pressure max. of 0.7 MPa, it ensures effective pressure regulation. The relay features a flow rate of up to 6000 l/min and a pneumatic connection of NPT 1/4, making it ideal for high-performance industrial applications. Its operating temperature range of -5 to 60 °C ensures functionality in various environments, while the compact dimensions of 93 mm in length and 86 mm in diameter make it easy to integrate into tight spaces.
Manufacturer: SMC
Type: Booster Relay
Model: IL100-N02
Technical Specifications
- Fluid: Air
- Supply Pressure Max.: 1.0 MPa
- Input/Output Pressure Max.: 0.7 MPa
- Flow Rate Max.: 6000 l/min
- Pneumatic Connection: NPT 1/4
- Fluid / Ambient Temperature: -5 / 60 °C
- Length, Diameter: 93 mm, 86 mm
