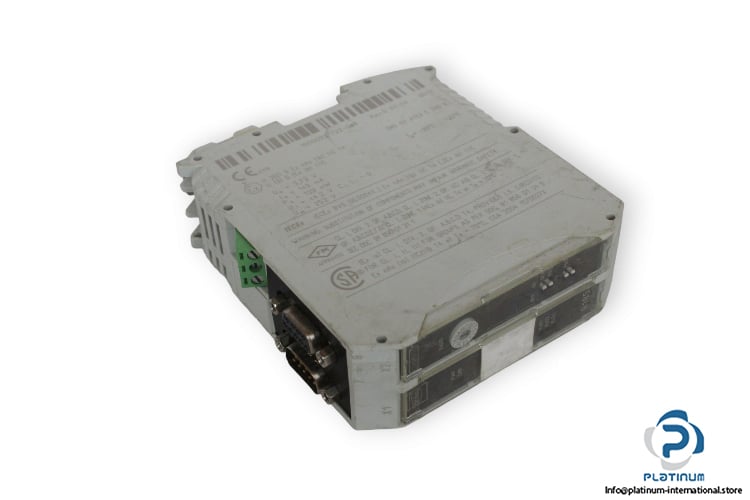

Stahl 9185/11-35-10 Fieldbus Isolating Repeater

Manufacture: Stahl
Type: Fieldbus Isolating Repeater
Model: 9185113510

Auxiliary power: 24 V AC / DC
Power consumption: 1.60 W
Connections: Sub-D socket X3, 9-pole
Connection type: Screw terminal
Field side of interfaces: RS-485
Max. voltage Uo: 3.73 V
Max. current Io: 149 Ma
Max. power Po: 139 mW
Max. voltage Ui: ± 4,2 V
Safety-related max. voltage: 253 V
Degree of protection terminals: IP20
Enclosure material: Polyamide
Ambient temperature: -20 … 70°C
Dimensions: 35,2 x 114,5 x 108 mm
