Stahl 9440/15-01-11 Power Module
Used
In stock1 unitReady to ship
Power Module
An explosion-proof STAHL IS1 power module designed for Remote I/O systems in hazardous areas, supporting PROFIBUS DP and HART communication with full system redundancy.AreaAutomationCommunicationControlCPMDPEquipmentExplosionHartHazardousIndustrialIOIS1ModulePowerProfibusProofRemoteStahl
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

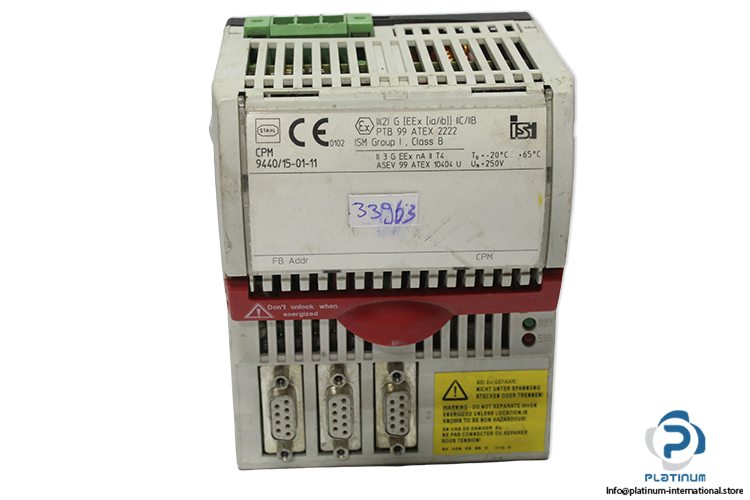

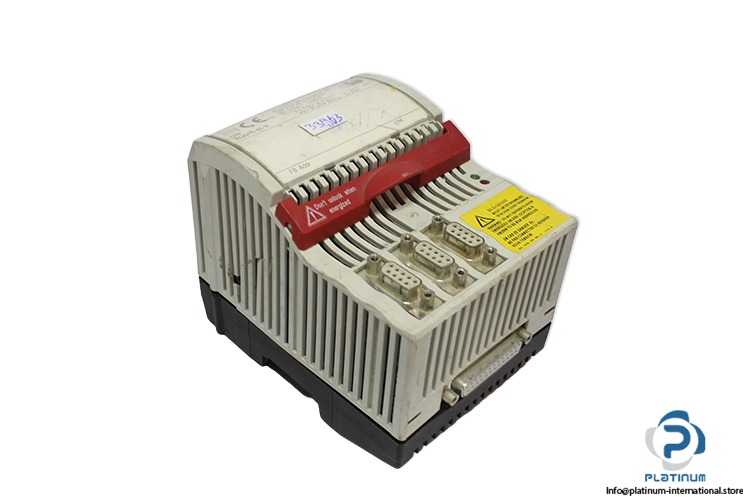

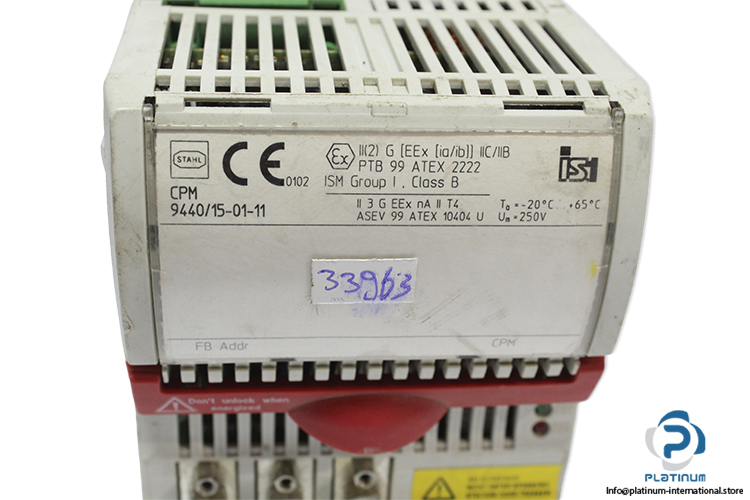

STAHL IS1 CPM Power Module
The STAHL IS1 CPM power module is designed for hazardous area automation, providing reliable power supply and communication support for Remote I/O systems in Zone 2 environments. Engineered for industrial plants requiring explosion-proof operation, redundancy, and PROFIBUS communication, this module ensures stable and secure system performance. Manufacturer: STAHL
Type: Power Module
Model: CPM
Part No.: 9440/15-01-11
Series: IS1
| Nominal Voltage | 24 V DC |
| Auxiliary Power Voltage Range | 20 / 35 V DC |
| Rated Voltage (Un) | ‰¤ 250 V |
| Application Range (Zones) | 2, 21, 22 |
| Ex Interface Zone | 2, 21, 22 |
| Explosion Protection | Explosion Proof |
| ATEX Marking | II (2) G [EEx ia/ib] IIC/IIB, II 3 G EEx nA II T4 |
| Protocols | PROFIBUS DP V0, PROFIBUS DP V1, HART |
| Redundancy | Full Redundancy |
| Remote I/O | IS1 CPU and Power Module for Zone 2 |
| Fieldbus Interface | RS485, Sub-D Socket, 9-Pole |
| ServiceBus Interface | RS485, Sub-D Socket, 9-Pole |
| RS485 Interface | According to PROFIBUS Specification |
| Transmission Speed | 9.6 kbit/s to 1.5 Mbit/s |
| RS485 Address Setting | 0 “ 127 |
| System Support | PROFIBUS DP V0/V1, HART, System Redundancy, Optical Rings |
| Asset Management | Integration via ServiceBus and FDT/DTM |
| Class | Class B |
| Ambient Temperature | “20 °C to +65 °C |
| Dimensions (W × D × L) | 96.5 mm × 107 mm × 148 mm |
