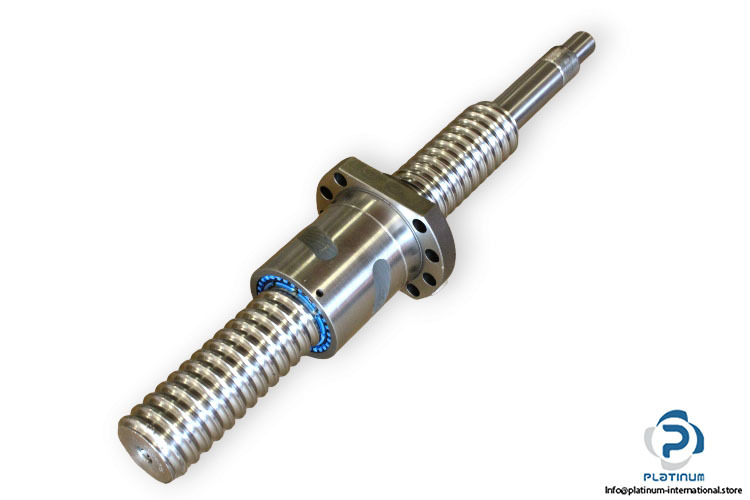

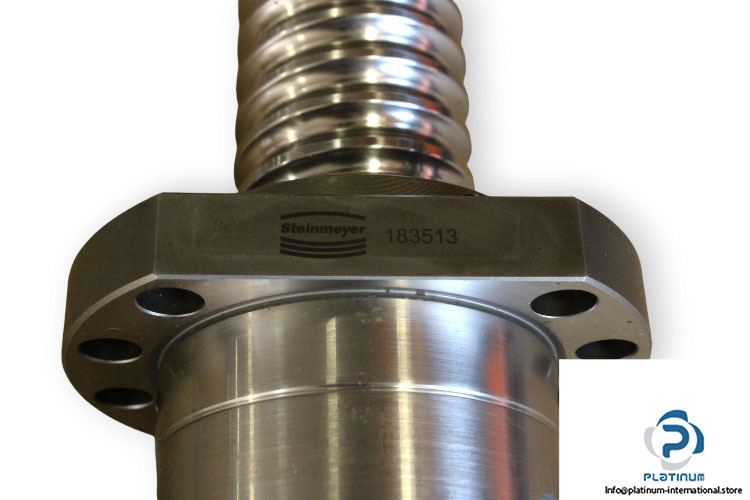

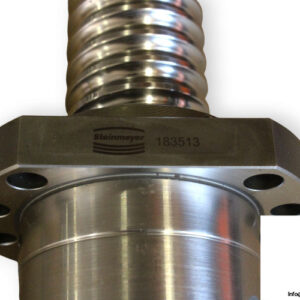

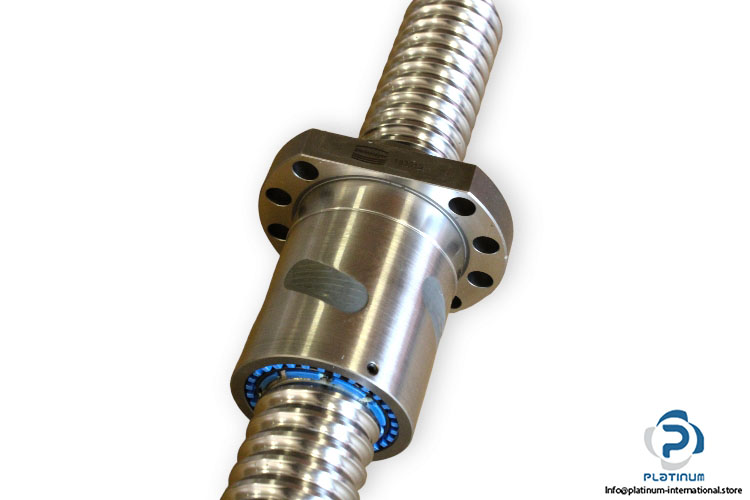

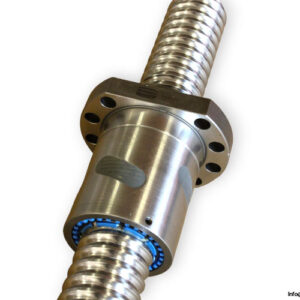

Steinmeyer 183513 Ball Screw

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/10.50.365.500
Nut type: 1416/10.50.7,5.5

Size: 50
Nominal Diameter d_N: 50 mm
Lead P: 10 mm

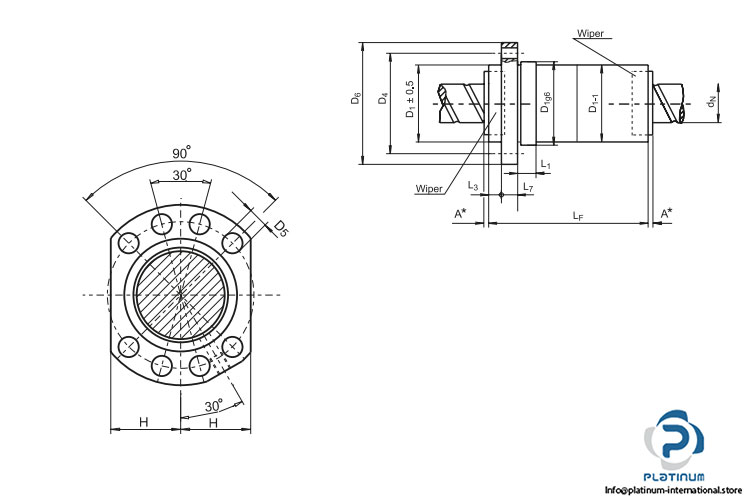

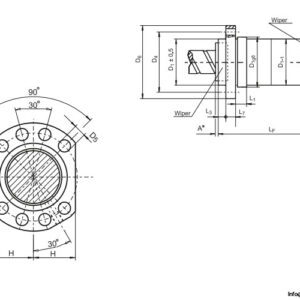

Dimensions:
Flange diameter D₆: 110 mm
Nut outer diameter D₁ g6: 75 mm
Nut length L_F: 111 mm
Flange thickness L₇: 16 mm
Cutting Flange Width(2H): 85 mm
L₁: 16 mm
D₄: 93 mm
No. of circuits i: 5
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 81.7 kN
Static load rating C_0a: 155.4 kN
Stiffness R_{nu, ar}: 830 N/µm
Threaded length: 365 mm
Total screw length: 500 mm
