Stober B21R 80 G 4 TLB 960 IMB 5 Gearmotor
Used
In stock1 unitReady to ship

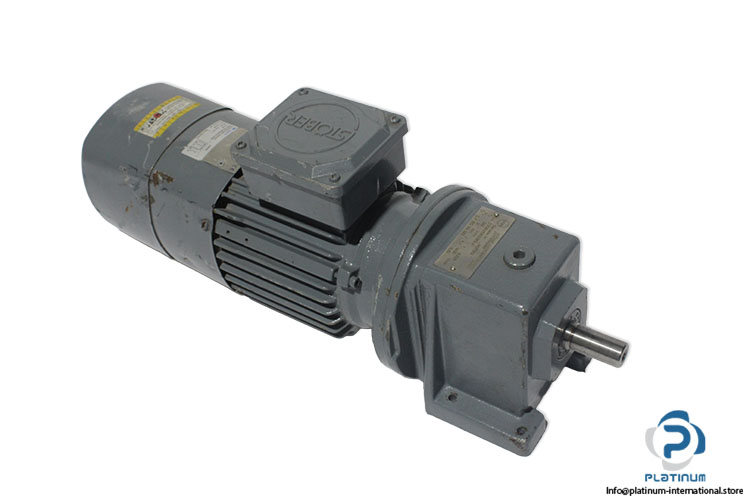

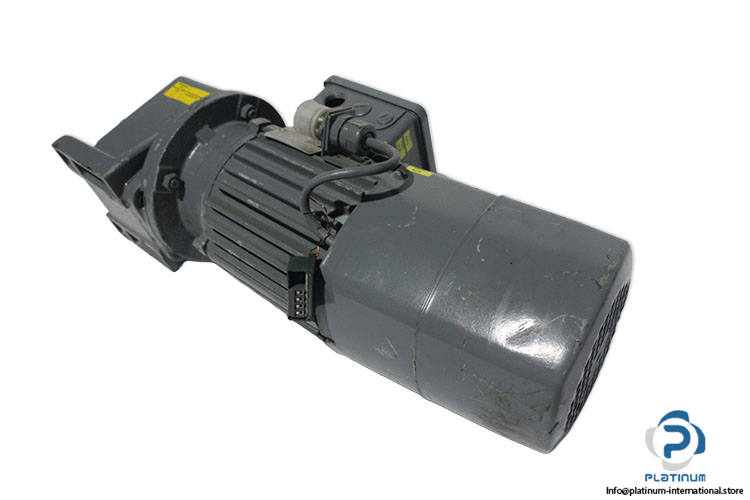

Gearmotor The STOBER B21R 80 G 4 TLB 960 IMB 5 is a 0.75 kW industrial gearmotor with an integrated helical gearbox, 8 Nm brake, and Baumer 1024 PPR incremental encoder, providing reliable motion control and power transmission for automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

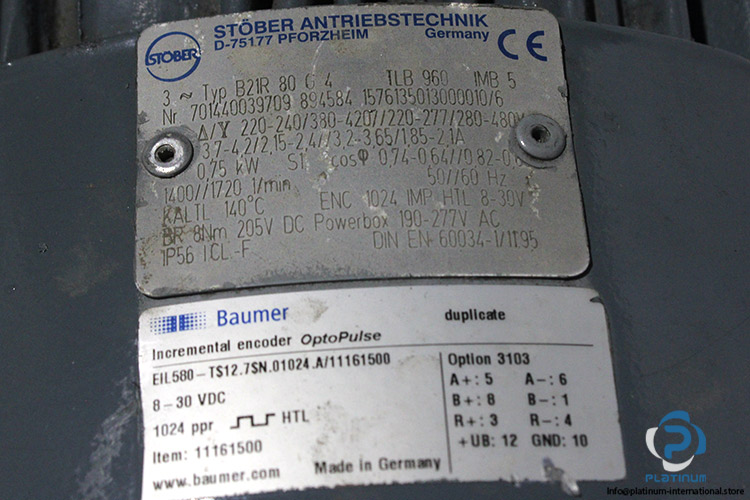

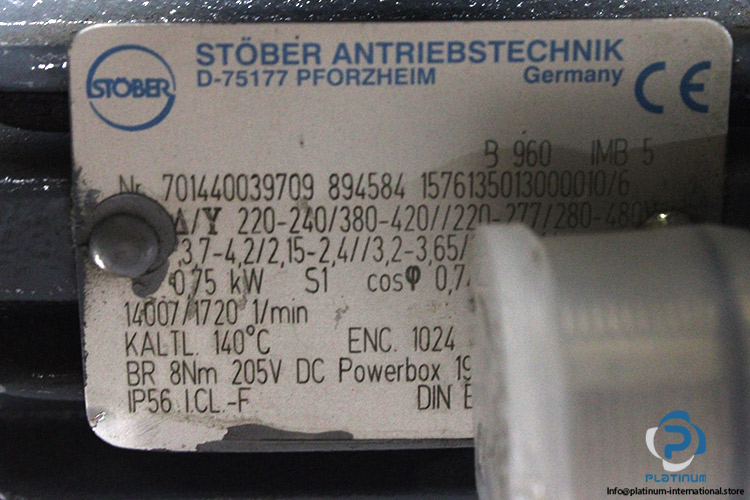

| Part No. | 701440039709 894584 1576135013000010/6 |
| Rated Speed [r/min] | 1400//1720 |
| Motor Power [kW] | 0.75 |
| Motor Frequency [Hz] | 50/60 |
| Mounting Configuration | IMB 5 |
| Motor Voltage at 50Hz [V] | 220–240 V / 380–420 V Delta/Star |
| Motor Voltage at 60Hz [V] | 220-277/280-480 Delta/Star |
| Nominal Current at 50Hz [A] | 3.7-4.2/2.15-2,4 |
| Nominal Current at 60Hz [A] | 3.2-3,65/1.85-2,1 |
| Cos Phi | 0.74-064//0.82-0.6 |
| Thermal Class | F |
| Enclosure [IP] | 56 |
| Standard | DIN EN- 60034-1/1195 |
| Brake Torque Rating | 8Nm |
| Brake Voltage | 205V DC |
| Power box | 190–277V AC |

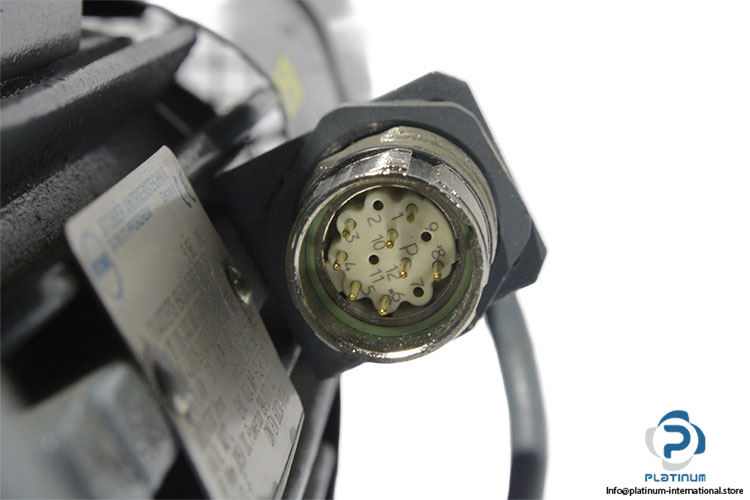

| Attached with | Baumer EIL580-TS12.7SN.01024.A/11161500 Incremental encoder |
| Series | OptoPulse |
| Supply Voltage | 8–30 VDC |
| Resolution | 1024 ppr (pulses per revolution) |
| Output Signal | HTL (push-pull) |
| Item Number | 11161500 |

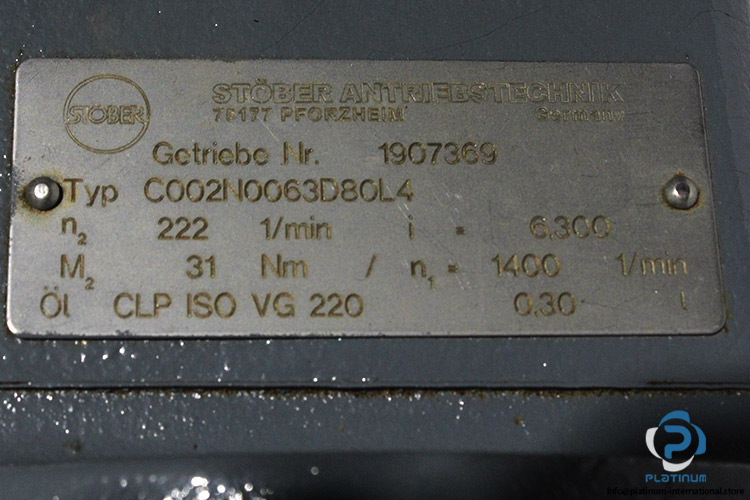

| Attached with 2 | STÖBER ANTRIEBSTECHNIK C002N0063D80L4 helical gearbox |
| Part NO.gearbox | 1907369 |
| Input Speed | 1400 1/min (RPM) |
| Gear Ratio | 6.300 |
| Output Speed | 222 1/min (RPM) |
| Output Torque | 31 Nm |
| Oil Type | CLP ISO VG 220 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100494 |
| Weight | 22 |
