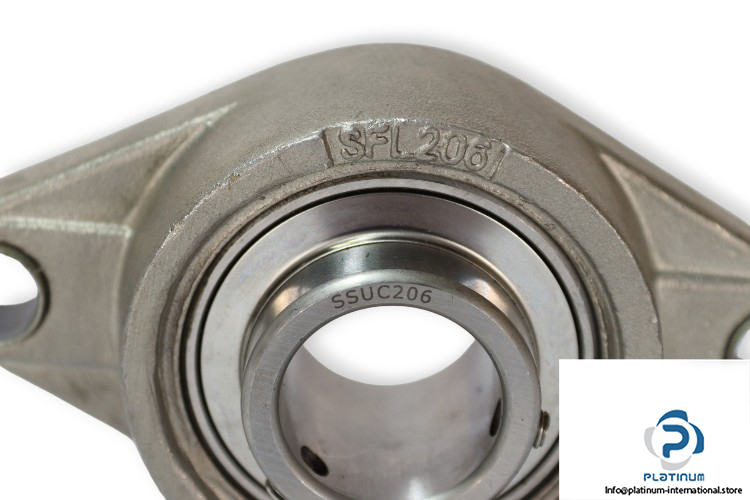

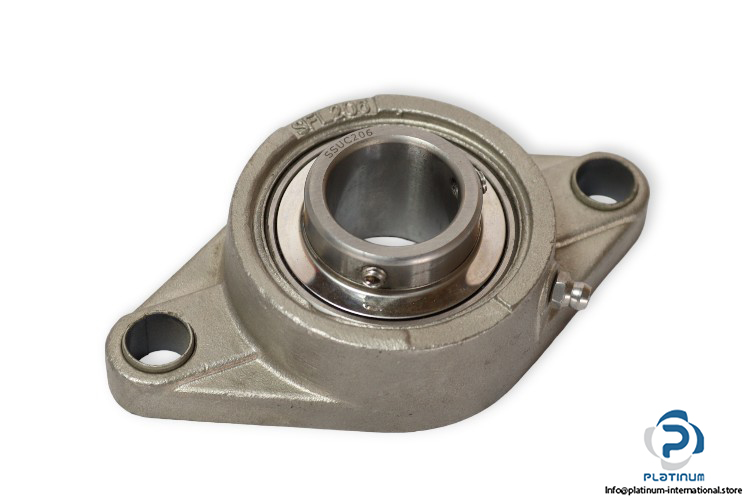

SUCSFL206 Stainless Steel Oval Flange Housing Unit

Type: Stainless Steel Oval Flange Housing Unit
Model: SUCSFL 206
Housing No.: SFL206
Bearing No.: SSUC206

Dimensions
Da: 62 mm
Overall Length b: 80 mm
Overall Height a: 141 mm
Distance mounting surface to bearing center g: 13 mm
Housing height i: 17.9
Distance Between Attachment Bolts e: 116.7 mm
Diameter of attachment bolt hole s: 12 mm
Mounting: Oval Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
