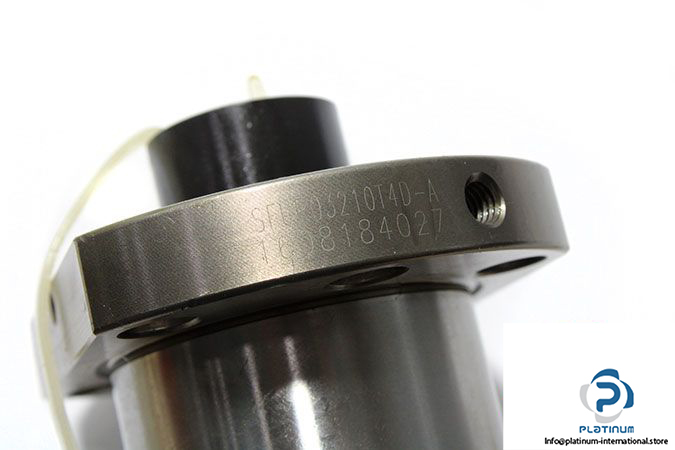

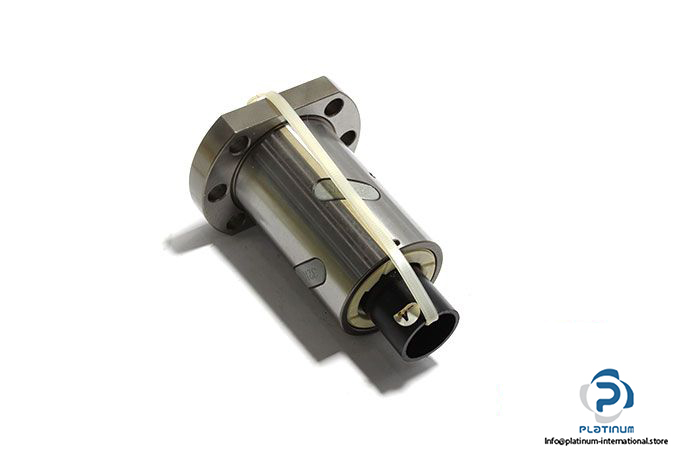

TBI Motion SFUR03210T4D Flanged Single NUT

Manufacturer: TBI MOTION
Type: Ball Screw Flanged Single Nut SFU
Model: SFU03210-4

Size: 32 x 10 R x 6.35-4
Nominal Diameter d: 32 mm
Ball Diameter D_a: 6.35 mm
Number Circuits n: 1×4
Lead l: 10 mm
Direction of Lead: Right-Hand Thread
Dynamic Rating Load C_a: 4805 kgf
Static Rating Load C_oa: 12208 kgf
Stiffness K: 61 kgf/µm

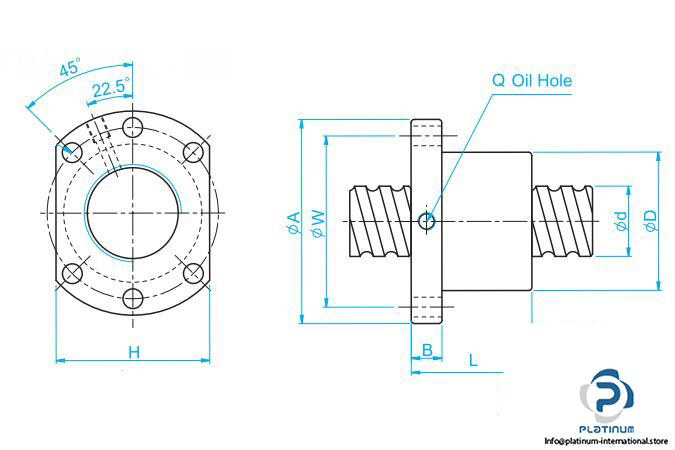

Dimensions:
A: 80 mm
D: 50 mm
L : 90 mm
H: 62 mm
