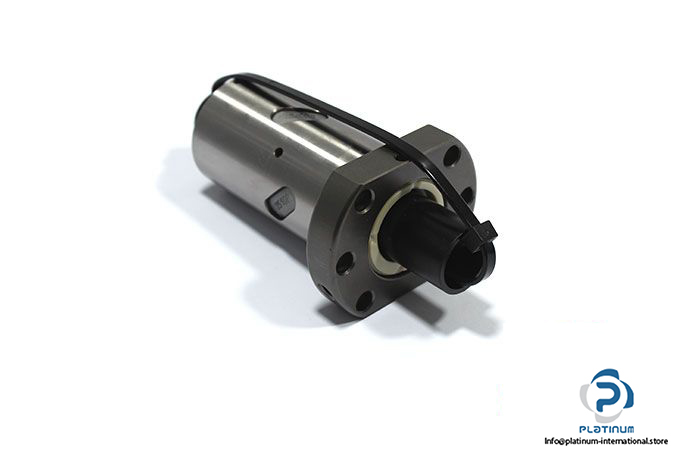

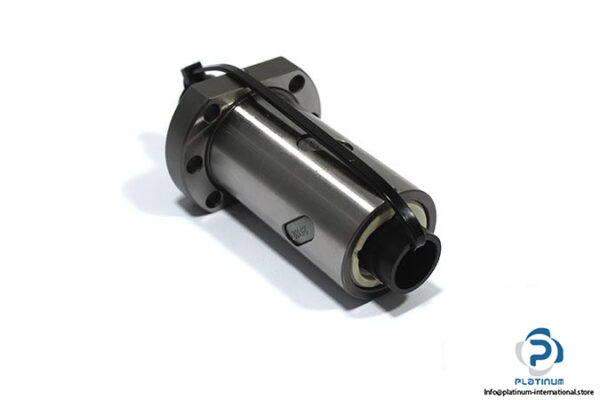

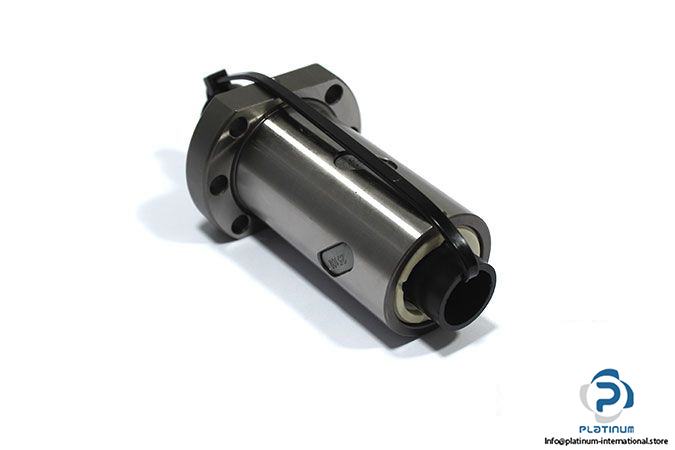

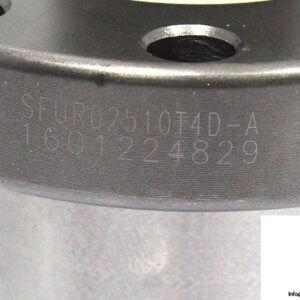

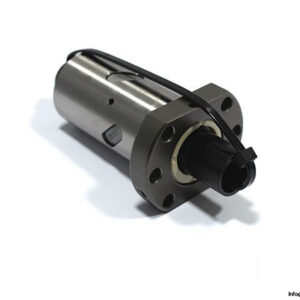

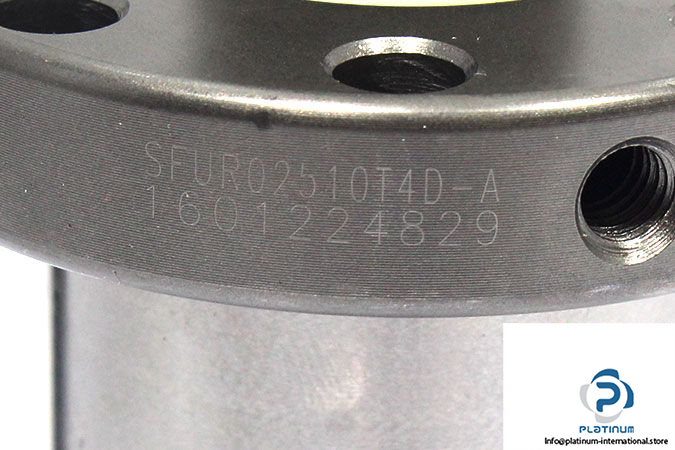

TBI Motion SFUR02510T4D-A Flanged Single NUT

Manufacturer: TBI Motion
Type: Ball Screw Flanged Single Nut SFU
Model: SFU02510-4

Size: 25 x 10 R x 4.762-4
Nominal Diameter d: 25 mm
Ball Diameter D_a: 4.762 mm
Number Circuits n: 1×4
Lead l: 10 mm
Direction of Lead: Right-Hand Thread
Dynamic Rating Load C_a: 2954 kgf
Static Rating Load C_oa: 7295 kgf
Stiffness K: 50 kgf/µm

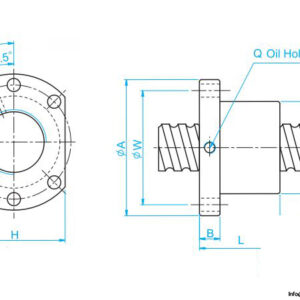

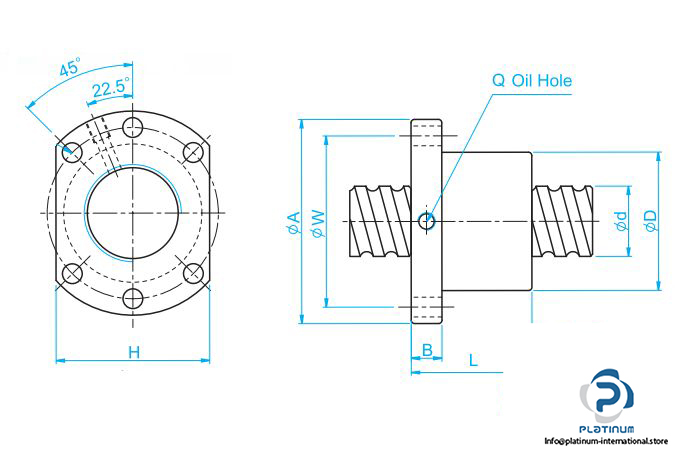

Dimensions:
A: 62 mm
D: 40 mm
L : 85 mm
H: 48 mm
